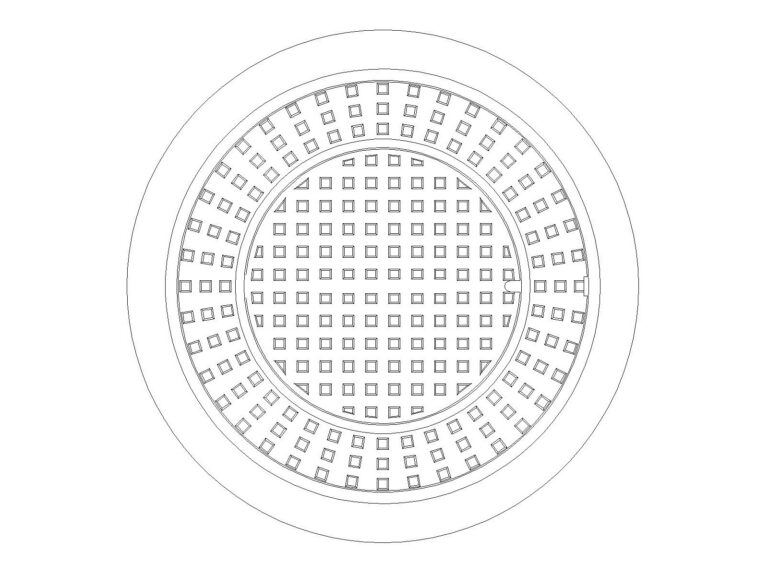

1191 |
35 3/4" |
1" |
34" |
6 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1191
Clear Opening Diameter:
34"
Cover Diameter:
35 3/4"
Frame Flange Diameter:
44 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1191-A |
- |
- |
- |
7 1/2" |
PDF
|
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1191-A
Frame Flange Diameter:
45"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1195 |
31 5/8" |
1 3/8" |
30" |
10" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1195
Clear Opening Diameter:
30"
Cover Diameter:
31 5/8"
Frame Flange Diameter:
49"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1195-D |
38" |
1 1/2" |
36" |
10" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1195-D
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1196 |
31 5/8" |
1 3/8" |
30" |
6" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1196
Clear Opening Diameter:
30"
Cover Diameter:
31 5/8"
Frame Flange Diameter:
49"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

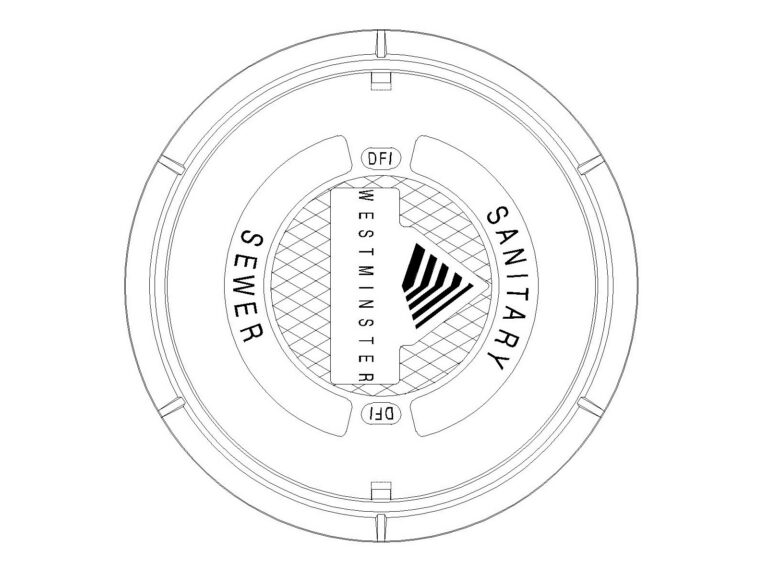

1197 |
30" |
1 1/4" |
28" |
8" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1197
Clear Opening Diameter:
28"
Cover Diameter:
30"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
120 |
34 1/8" |
1 1/2" |
32 1/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
120
Clear Opening Diameter:
32 1/2"
Cover Diameter:
34 1/8"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
34 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
120-CW-M |
34 1/8" |
1 1/2" |
32 1/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
120-CW-M
Clear Opening Diameter:
32 1/2"
Cover Diameter:
34 1/8"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
34 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

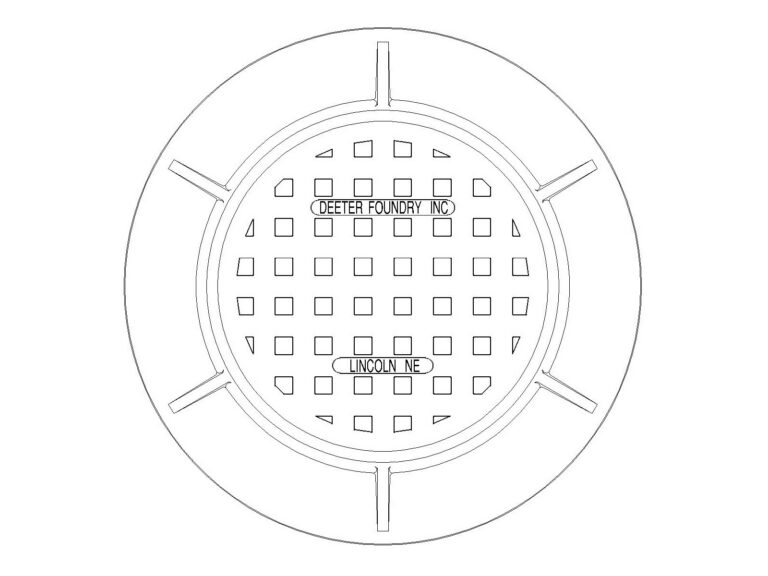

1215 |
22 3/4" |
1 3/4" |
21" |
7" |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1215
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

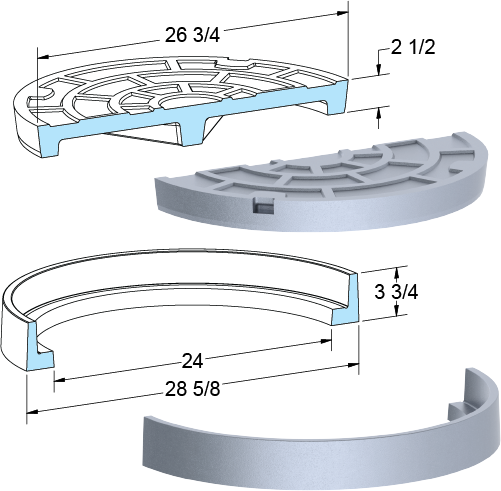

1217 |
26 3/4" |
2 1/2" |
24" |
3 3/4" |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
3 3/4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
1217
Clear Opening Diameter:
24"
Cover Diameter:
26 3/4"
Frame Flange Diameter:
28 5/8"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1218 |
20" |
1 3/8" |
19" |
1 3/8" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
1 3/8"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
1218
Clear Opening Diameter:
19"
Cover Diameter:
20"
Frame Flange Diameter:
21 3/16"
Frame Opening Diameter:
19"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |
122 |
27 7/8" |
1 1/2" |
26 1/4" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
122
Clear Opening Diameter:
26 1/4"
Cover Diameter:
27 7/8"
Frame Flange Diameter:
32 1/2"
Frame Opening Diameter:
28 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

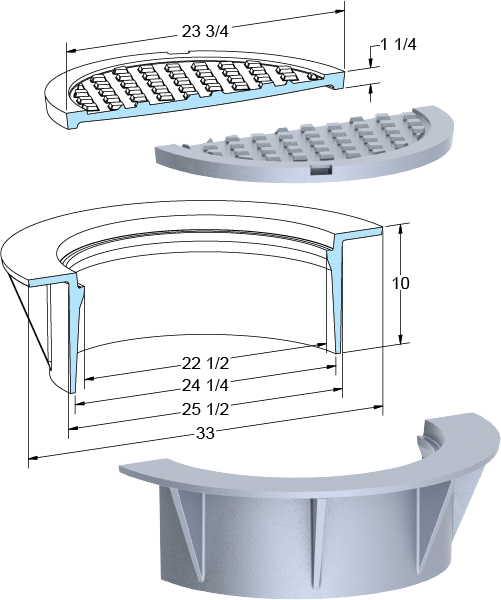

1230 |
23 3/4" |
1 1/4" |
22 1/2" |
10" |
|
Seat Depth:
1 1/4"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1230
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
25 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

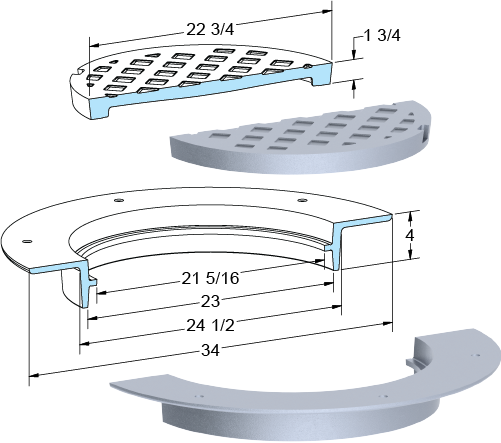

1234 |
22 3/4" |
1 3/4" |
21 5/16" |
4" |
|
Seat Depth:
1 3/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1234
Clear Opening Diameter:
21 5/16"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

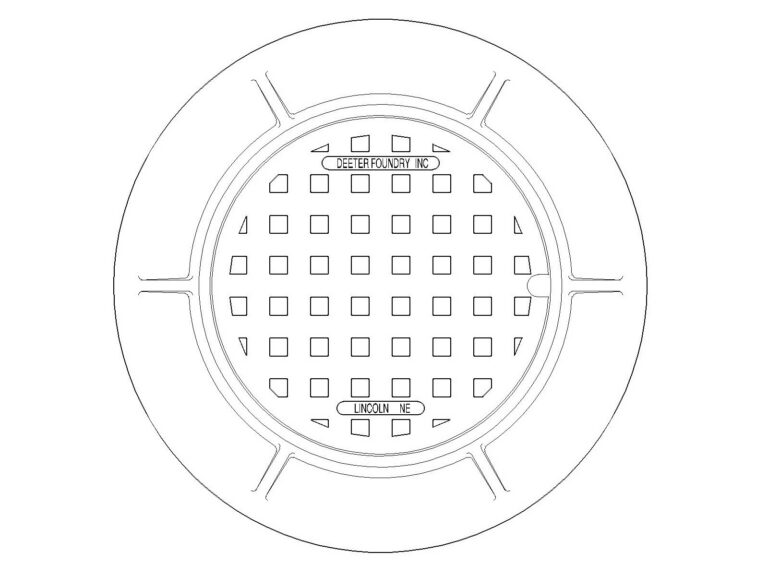

1235 |
22 3/4" |
1 3/4" |
21" |
9" |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1235
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1247 |
26" |
1 1/2" |
24" |
7" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
Contact NEI, H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Frame Type:
Flange Down
Grate Type:
G
Catalog Number:
1247
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
36"
Frame Opening Diameter:
26 1/4"
Grate Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

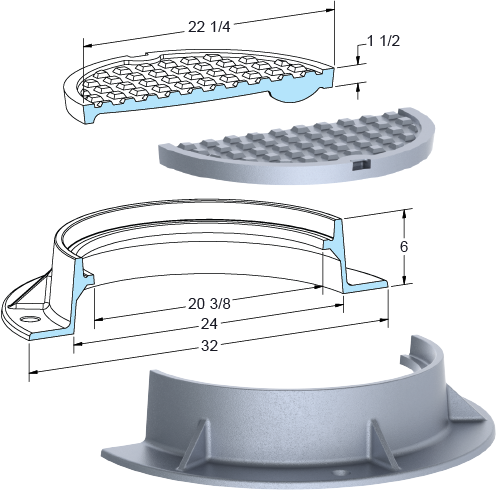

125 |
22 1/4" |
1 1/2" |
20 3/8" |
6" |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
125
Clear Opening Diameter:
20 3/8"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
32"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
1252 |
24 3/4" |
7/8" |
23" |
3" |
PDF
|
Seat Depth:
7/8"
Frame Height:
3"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1252
Clear Opening Diameter:
23"
Cover Diameter:
24 3/4"
Frame Flange Diameter:
31"
Bolted:
Bolted
Gasket:
Gasket
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

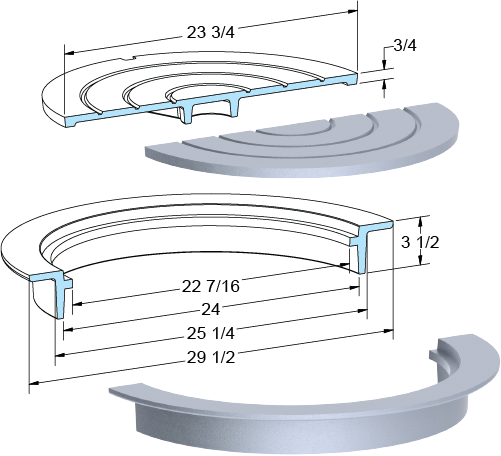

1254 |
23 3/4" |
3/4" |
22 7/16" |
3 1/2" |
|
Seat Depth:
3/4"
Frame Height:
3 1/2"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1254
Clear Opening Diameter:
22 7/16"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
|
 |

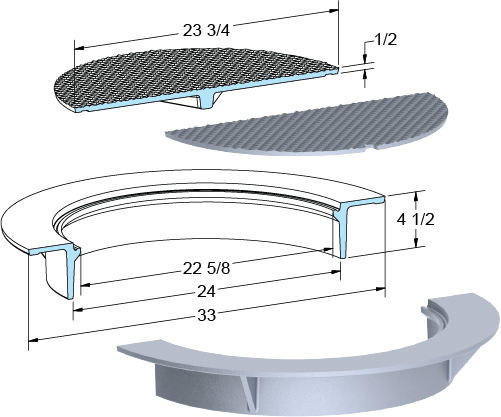

1255 |
23 3/4" |
1/2" |
22 5/8" |
4 1/2" |
PDF
|
Seat Depth:
1/2"
Frame Height:
4 1/2"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1255
Clear Opening Diameter:
22 5/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
25"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

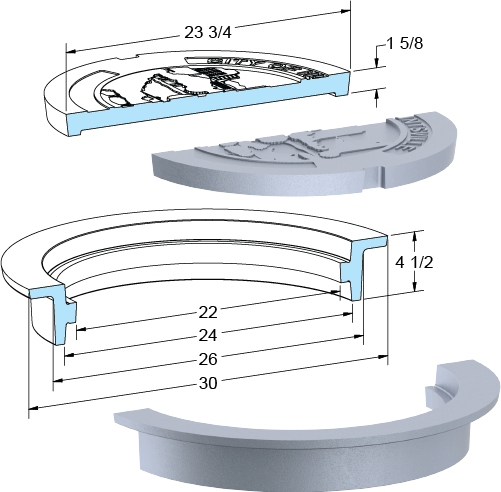

1256 |
23 3/4" |
1 5/8" |
22" |
4 1/2" |
PDF
|
Seat Depth:
1 5/8"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1256
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1258 |
24" |
1" |
22" |
7 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1258
Clear Opening Diameter:
22"
Cover Diameter:
24"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1259 |
23 3/4" |
3/4" |
22 1/2" |
4" |
PDF
|
Seat Depth:
3/4"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1259
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
126 |
26" |
1 1/8" |
24" |
8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
126
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
36 1/2"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
