* 1" ADJRING-32 |
22 3/4" |
2" |
1" |
- |
|
Seat Depth:
2"
Material:
Gray Iron
Catalog Number:
* 1" ADJRING-32
Clear Opening Diameter:
1"
Cover Diameter:
22 3/4"
|
|
|
* 1" ADJRING-32 |
22 3⁄4 |
- |
1 |
- |
|
Clear Opening Diameter:
1
Cover Diameter:
22 3⁄4
|
|
|
* 1" ADJRING-33A |
23 3/4" |
1 1/4" |
1" |
- |
|
Seat Depth:
1 1/4"
Material:
Gray Iron
Catalog Number:
* 1" ADJRING-33A
Clear Opening Diameter:
1"
Cover Diameter:
23 3/4"
|
|
|
*1341-AH-M |
50 7/8" |
2" |
48" |
5 1/8" |
|
Seat Depth:
2"
Frame Height:
5 1/8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
*1341-AH-M
Clear Opening Diameter:
48"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
56 1/4"
Frame Opening Diameter:
51"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
*2130-HT |
- |
1 1/2" |
- |
2 1/4" |
|
Seat Depth:
1 1/2"
Frame Height:
2 1/4"
Frame Opening Length:
30"
Frame Opening Width:
53 3/4"
Frame Flange Length:
30"
Frame Flange Width:
53 3/4"
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Angle Frame
Catalog Number:
*2130-HT
|
|
|
*2131-HV |
- |
3/4" |
- |
1 1/4" |
|
Seat Depth:
3/4"
Frame Height:
1 1/4"
Frame Opening Length:
21"
Frame Opening Width:
42 1/4"
Frame Flange Length:
21"
Frame Flange Width:
42 1/4"
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Angle Frame
Catalog Number:
*2131-HV
Cover Width:
41"
|
|
|
*2140-HU |
- |
3/4" |
- |
4" |
|
Clear Opening Length:
36"
Clear Opening Width:
42"
Seat Depth:
3/4"
Frame Height:
4"
Frame Opening Length:
36"
Frame Opening Width:
42"
Frame Flange Length:
43"
Frame Flange Width:
50"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
*2140-HU
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
*2150-JS |
- |
1 3/8" |
- |
4" |
|
Clear Opening Length:
42"
Clear Opening Width:
60"
Seat Depth:
1 3/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
*2150-JS
Cover Length:
44"
Cover Width:
61 7/8"
|
|
|
*2155-JX |
- |
1 3/4" |
- |
5" |
|
Clear Opening Length:
24"
Clear Opening Width:
38"
Seat Depth:
1 3/4"
Frame Height:
5"
Frame Flange Length:
30"
Frame Flange Width:
46"
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
*2155-JX
|
|
|
*690-AH-M |
50 7/8" |
2" |
48" |
10" |
|
Seat Depth:
2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
*690-AH-M
Clear Opening Diameter:
48"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
62"
Frame Opening Diameter:
52"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
*691-AH-M |
50 7/8" |
2" |
48" |
5 1/8" |
|
Seat Depth:
2"
Frame Height:
5 1/8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
*691-AH-M
Clear Opening Diameter:
48"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
56 1/4"
Frame Opening Diameter:
51"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1005 |
24 1/8" |
1" |
22 5/16" |
5" |
PDF
|
Seat Depth:
1"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1005
Clear Opening Diameter:
22 5/16"
Cover Diameter:
24 1/8"
Frame Flange Diameter:
31 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1014 |
23 1/2" |
1 1/4" |
22" |
4" |
|
Seat Depth:
1 1/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1014
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
1015 |
22 3/4" |
1 3/4" |
21" |
9" |
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1015
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1028 |
22" |
1 1/2" |
20 1/8" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1028
Clear Opening Diameter:
20 1/8"
Cover Diameter:
22"
Frame Flange Diameter:
28"
Frame Opening Diameter:
23 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1030 |
25 3/4" |
1 1/8" |
24 1/2" |
7 1/8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
7 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1030
Clear Opening Diameter:
24 1/2"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1040 |
23" |
1 1/2" |
21" |
9" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1040
Clear Opening Diameter:
21"
Cover Diameter:
23"
Frame Flange Diameter:
36"
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1048 |
25 1/4" |
1 3/8" |
23 7/8" |
6" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1048
Clear Opening Diameter:
23 7/8"
Cover Diameter:
25 1/4"
Frame Flange Diameter:
35 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
105 |
22 1/4" |
1 1/2" |
20 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
105
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
1050 |
23 |
- |
21 1⁄16 |
- |
|
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Clear Opening Diameter:
21 1⁄16
Cover Diameter:
23
|
|
|
1050 |
23" |
1 9/16" |
21 1/16" |
8 27/32" |
|
Seat Depth:
1 9/16"
Frame Height:
8 27/32"
Catalog Number:
1050
Clear Opening Diameter:
21 1/16"
Cover Diameter:
23"
Frame Flange Diameter:
35 7/16"
Gasket:
Gasket
Frame Type:
Flange Down
Material:
Gray Iron
Shape:
Round
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1050-W |
23" |
1 1/2" |
21 1/16" |
8 7/8" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
8 7/8"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1050-W
Clear Opening Diameter:
21 1/16"
Cover Diameter:
23"
Frame Flange Diameter:
35 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

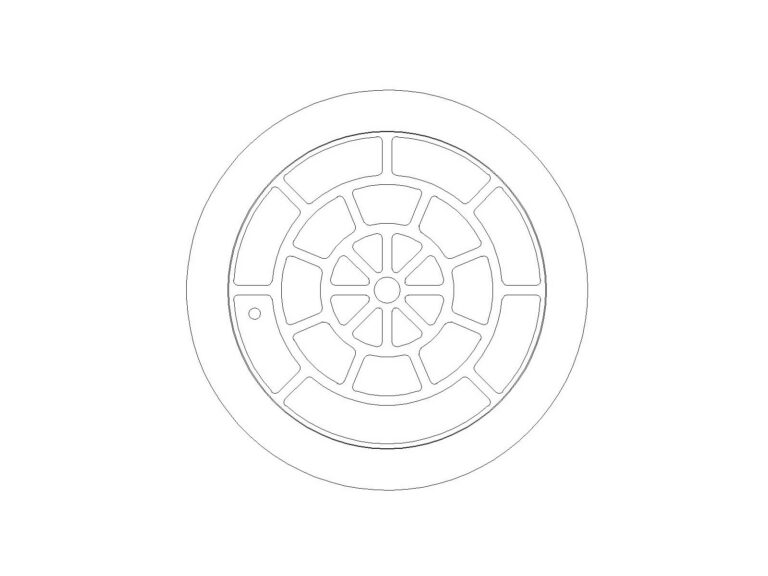

1052 |
26 1/2" |
1 1/4" |
24" |
4" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1052
Clear Opening Diameter:
24"
Cover Diameter:
26 1/2"
Frame Flange Diameter:
33 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

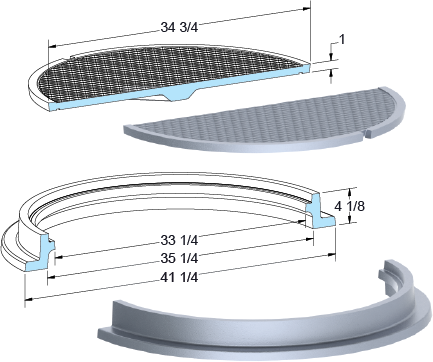

106 |
34 3/4" |
1" |
33 1/4" |
4 1/8" |
PDF
|
Seat Depth:
1"
Frame Height:
4 1/8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
106
Clear Opening Diameter:
33 1/4"
Cover Diameter:
34 3/4"
Frame Flange Diameter:
41 1/4"
Frame Opening Diameter:
35 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
