6683-2 |
- |
15/16" |
- |
3" |
|
Clear Opening Length:
21 7/8"
Clear Opening Width:
21 7/8"
Seat Depth:
15/16"
Frame Height:
3"
Frame Opening Length:
24 1/8"
Frame Opening Width:
24 1/8"
Frame Flange Length:
30"
Frame Flange Width:
30"
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Down
Catalog Number:
6683-2
Cover Length:
23 3/4"
Cover Width:
23 3/4"
Open Pick:
Open Pick
|
|
|
6686-2D |
- |
1 1/2" |
- |
5" |
|
Clear Opening Length:
17 7/8"
Clear Opening Width:
40 1/2"
Seat Depth:
1 1/2"
Frame Height:
5"
Frame Opening Length:
18 1/8"
Frame Opening Width:
40 3/4"
Frame Flange Length:
22 3/4"
Frame Flange Width:
45 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
6686-2D
Cover Length:
22 1/2"
Cover Width:
22 1/2"
Open Pick:
Open Pick
|
|
|
6686-D |
- |
1 1/2" |
- |
5 1/2" |
|
Clear Opening Length:
18"
Clear Opening Width:
18"
Seat Depth:
1 1/2"
Frame Height:
5 1/2"
Frame Opening Length:
19 3/4"
Frame Opening Width:
19 3/4"
Frame Flange Length:
25 1/4"
Frame Flange Width:
25 1/4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
6686-D
Cover Length:
22 1/2"
Cover Width:
22 1/2"
Open Pick:
Open Pick
|
 |
669 |
23 1/2" |
1" |
22" |
7 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
7 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
669
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
669-3 |
23 1/2" |
1" |
22" |
7 1/2" |
|
Seat Depth:
1"
Frame Height:
7 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
669-3
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

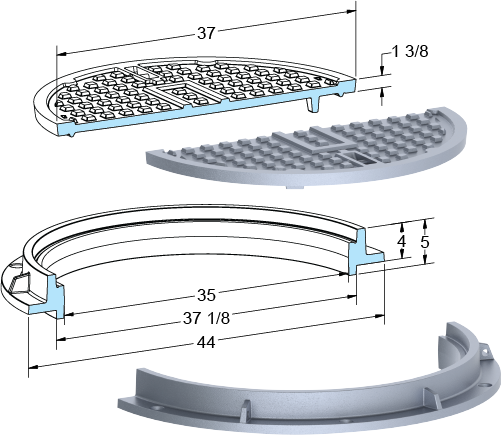

671 |
37" |
1 3/8" |
35" |
4" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
671
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Flange Diameter:
44"
Frame Opening Diameter:
37 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
671-AF-M |
37" |
1 3/8" |
35 1/8" |
4" |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
671-AF-M
Clear Opening Diameter:
35 1/8"
Cover Diameter:
37"
Frame Flange Diameter:
44"
Frame Opening Diameter:
35 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

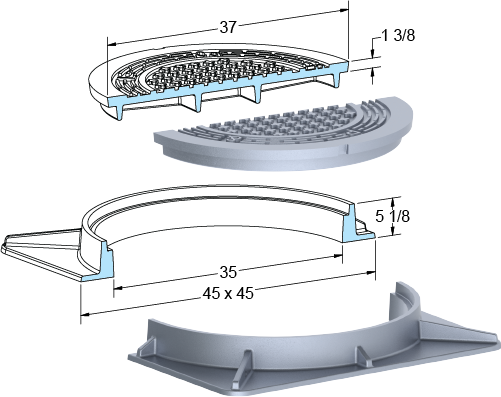

672 |
37" |
1 3/8" |
35" |
5" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
672
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Opening Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
672-AF-M |
37" |
1 3/8" |
35" |
5" |
|
Seat Depth:
1 3/8"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
672-AF-M
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Flange Diameter:
45"
Frame Opening Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

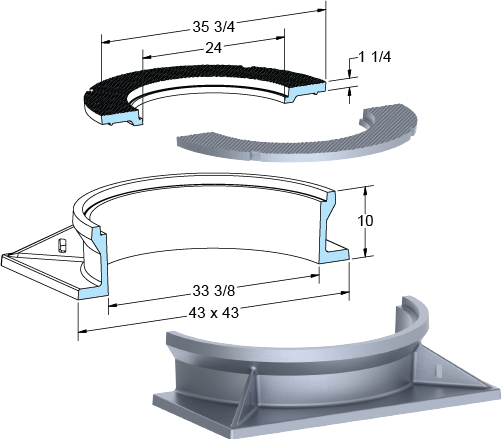

673 |
35 3/4" |
1 1/4" |
33 3/8" |
10" |
|
Seat Depth:
1 1/4"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
673
Clear Opening Diameter:
33 3/8"
Cover Diameter:
35 3/4"
Frame Opening Diameter:
33 3/8"
|
 |

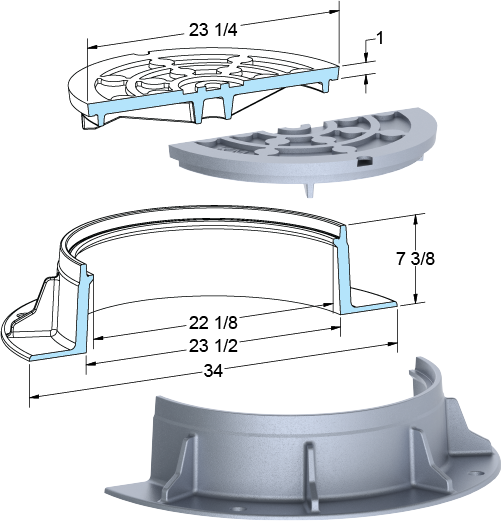

678 |
23 1/4" |
1" |
22 1/8" |
7 3/8" |
PDF
|
Seat Depth:
1"
Frame Height:
7 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
678
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
23 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

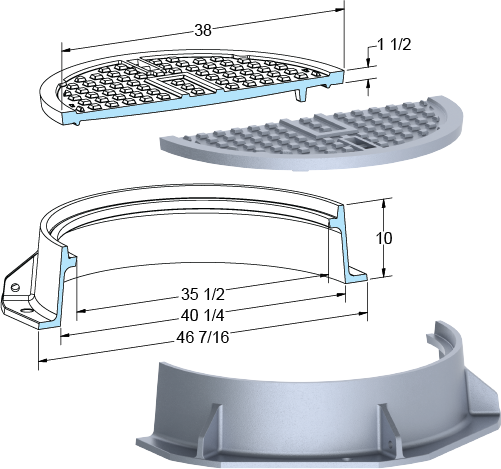

679 |
38" |
1 1/2" |
35 1/2" |
10" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679
Clear Opening Diameter:
35 1/2"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
679-BK-M |
38" |
1 1/2" |
35 9/16" |
10" |
|
Seat Depth:
1 1/2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679-BK-M
Clear Opening Diameter:
35 9/16"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
679-QN-M |
38" |
1 1/2" |
35 9/16" |
10" |
|
Seat Depth:
1 1/2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679-QN-M
Clear Opening Diameter:
35 9/16"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

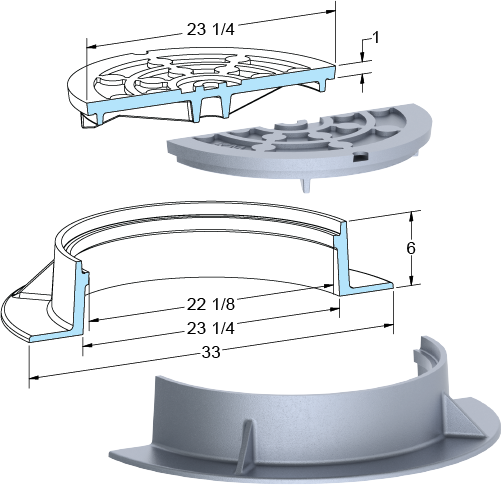

682 |
23 1/4" |
1" |
22 1/8" |
6" |
PDF
|
Seat Depth:
1"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
682
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
23 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

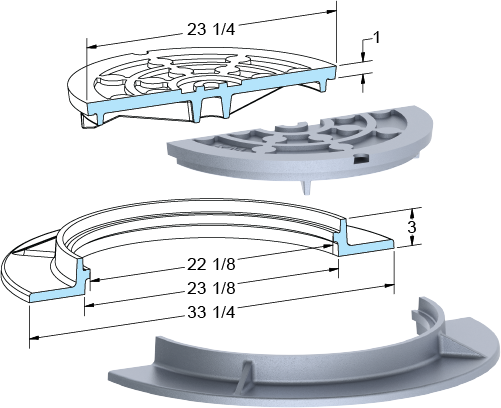

684 |
23 1/4" |
1" |
22 1/8" |
3" |
PDF
|
Seat Depth:
1"
Frame Height:
3"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
684
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

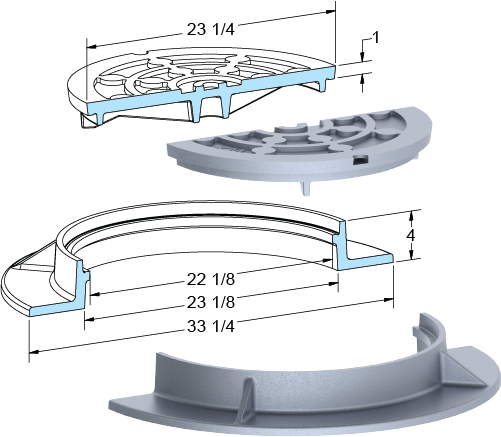

686 |
23 1/4" |
1" |
22 1/8" |
4" |
PDF
|
Seat Depth:
1"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
686
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
690-AG-M |
50 7/8" |
2" |
47 7/8" |
10" |
|
Seat Depth:
2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
690-AG-M
Clear Opening Diameter:
47 7/8"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
62"
Frame Opening Diameter:
52"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

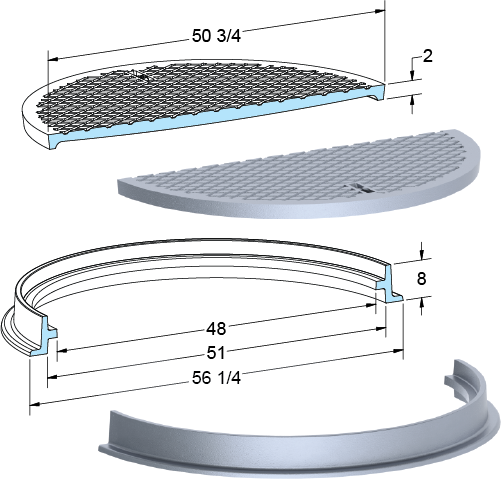

691 |
50 3/4" |
2" |
48" |
8" |
PDF
|
Seat Depth:
2"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
691
Clear Opening Diameter:
48"
Cover Diameter:
50 3/4"
Frame Flange Diameter:
56 1/4"
Frame Opening Diameter:
51"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
691-AG-M |
50 7/8" |
2" |
48" |
5 1/8" |
|
Seat Depth:
2"
Frame Height:
5 1/8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
691-AG-M
Clear Opening Diameter:
48"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
56 1/4"
Frame Opening Diameter:
51"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

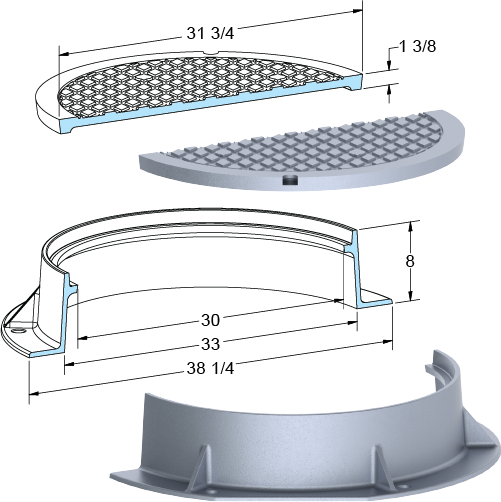

692 |
31 3/4" |
1 3/8" |
30" |
8" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
692
Clear Opening Diameter:
30"
Cover Diameter:
31 3/4"
Frame Flange Diameter:
38 1/4"
Frame Opening Diameter:
33"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
695-CP-TA |
43 3/4" |
1 3/4" |
42" |
10" |
|
Seat Depth:
1 3/4"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
695-CP-TA
Clear Opening Diameter:
42"
Cover Diameter:
43 3/4"
Frame Flange Diameter:
56"
Frame Opening Diameter:
46"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

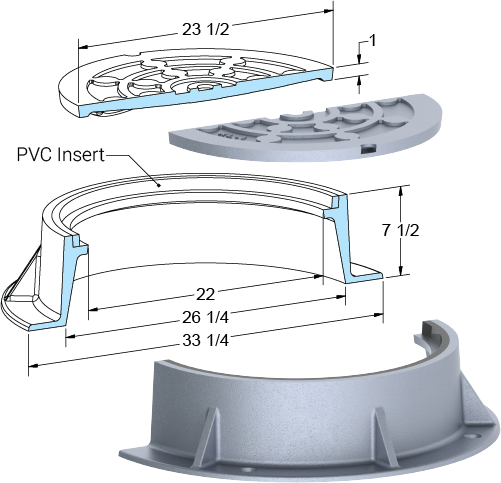

700 |
23 1/2" |
1" |
22" |
7 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
7 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
700
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
26 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

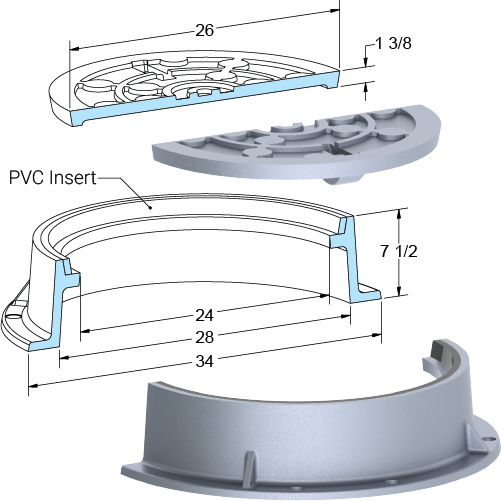

705 |
26" |
1 3/8" |
24" |
7 1/2" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
705
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
28"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
