3502-D2 |
22" |
22 3/4" |
- |
10" |
PDF
|
Clear Opening Length:
20 1/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
23 3/8"
Frame Opening Width:
24 1/16"
Frame Flange Length:
36"
Grate Length:
22"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
4.2
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3502-D2
Roll Grate:
Roll Grate
|
 |
3503-B |
28 3/4" |
17 1/4" |
- |
10" |
PDF
|
Clear Opening Length:
28 3/4"
Clear Opening Width:
15 1/2"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
29"
Frame Opening Width:
17 1/2"
Frame Flange Length:
36"
Frame Flange Width:
29"
Grate Length:
28 3/4"
Grate Width:
17 1/4"
Weir Perimeter (Feet):
4.1
Open Area (Sq Ft):
2"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3503-B
Roll Grate:
Roll Grate
|
 |
3504-F |
22 1/2" |
16 1/4" |
- |
- |
PDF
|
Clear Opening Length:
19 1/2"
Clear Opening Width:
15"
Frame Opening Length:
43"
Frame Opening Width:
15"
Frame Flange Length:
48 3/8"
Frame Flange Width:
18"
Grate Length:
22 1/2"
Grate Width:
16 1/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3504-F
Roll Grate:
Roll Grate
|
|
|
3506-A2 |
19 1/4" |
19 1/4" |
- |
10" |
PDF
|
Clear Opening Length:
17 7/16"
Clear Opening Width:
17 1/8"
Seat Depth:
1 1/2"
Frame Height:
10"
Frame Opening Length:
21 7/8"
Frame Opening Width:
21 1/4"
Frame Flange Length:
30"
Frame Flange Width:
28 1/4"
Grate Length:
19 1/4"
Grate Width:
19 1/4"
Weir Perimeter (Feet):
2.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3506-A2
Roll Grate:
Roll Grate
|
|
|
3508-A2 |
22 3/4" |
22 3/4" |
- |
10" |
PDF
|
Clear Opening Length:
20 13/16"
Clear Opening Width:
20 13/16"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
26 1/8"
Frame Opening Width:
26 3/16"
Frame Flange Length:
35"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
3.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3508-A2
Bolted:
Bolted
Roll Grate:
Roll Grate
|
 |
3508-B |
22 3/4" |
22 3/4" |
- |
10" |
|
Clear Opening Length:
21"
Clear Opening Width:
21"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
25 1/4"
Frame Opening Width:
25 1/4"
Frame Flange Length:
35"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
3.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3508-B
Roll Grate:
Roll Grate
|
|
|
3510 |
35 3/4" |
21 3/4" |
- |
6" |
|
Seat Depth:
2"
Frame Height:
6"
Frame Opening Width:
22"
Frame Flange Length:
44"
Frame Flange Width:
30"
Grate Length:
35 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
4.1
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3510
Roll Grate:
Roll Grate
|
 |

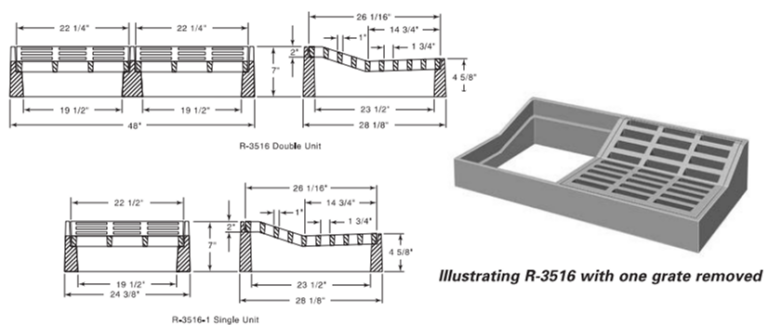

3516 |
22 1/4" |
26 1/16" |
- |
4 5/8" |
PDF
|
Clear Opening Length:
19 3/8"
Clear Opening Width:
23 3/8"
Seat Depth:
2"
Frame Height:
4 5/8"
Frame Opening Length:
46 31/32"
Frame Opening Width:
27 1/8"
Frame Flange Length:
48"
Frame Flange Width:
28 1/8"
Grate Length:
22 1/4"
Grate Width:
26 1/16"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3516
Roll Grate:
Roll Grate
|
|
|
3516-1 |
22 1/4" |
26 1/16" |
- |
4 5/8" |
PDF
|
Clear Opening Length:
19 1/2"
Clear Opening Width:
23 1/2"
Seat Depth:
2"
Frame Height:
4 5/8"
Frame Opening Length:
19 1/2"
Frame Opening Width:
23 1/2"
Frame Flange Length:
24 3/8"
Frame Flange Width:
28 1/8"
Grate Length:
22 1/4"
Grate Width:
26 1/16"
Weir Perimeter (Feet):
4.3
Open Area (Sq Ft):
2"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3516-1
Roll Grate:
Roll Grate
|
|
|
3518 |
36" |
23 1/2" |
- |
6 1/4" |
|
Clear Opening Length:
34 7/16"
Clear Opening Width:
21 3/8"
Seat Depth:
1 1/2"
Frame Height:
6 1/4"
Frame Opening Length:
36 7/16"
Frame Opening Width:
24 1/4"
Frame Flange Length:
44 3/4"
Frame Flange Width:
32 1/4"
Grate Length:
36"
Grate Width:
23 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3518
Roll Grate:
Roll Grate
|
 |
3525-L |
- |
- |
- |
- |
PDF
|
Material:
Gray Iron
Catalog Number:
3525-L
|
|
|
3526-L |
24" |
22 1/4" |
- |
- |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
201/2"
Seat Depth:
1 3/4"
Frame Opening Length:
25 1/8"
Frame Opening Width:
23 7/16"
Frame Flange Length:
34 1/2"
Frame Flange Width:
29 1/2"
Grate Length:
24"
Grate Width:
22 1/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Rectangle
Catalog Number:
3526-L
|
 |
3527-M |
22 1/2" |
22 1/2" |
- |
8" |
PDF
|
Clear Opening Length:
19 3/4"
Clear Opening Width:
20"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
46 1/4"
Frame Opening Width:
23 5/16"
Frame Flange Length:
47 11/16"
Frame Flange Width:
34 1/2"
Grate Length:
22 1/2"
Grate Width:
22 1/2"
Weir Perimeter (Feet):
11.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-M
|
 |
3527-V |
22 1/2" |
22 1/2" |
- |
10" |
PDF
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 5/8"
Seat Depth:
2"
Frame Height:
10"
Frame Opening Length:
23 1/2"
Frame Opening Width:
29 3/4"
Frame Flange Length:
34 7/8"
Frame Flange Width:
33"
Grate Length:
22 1/2"
Grate Width:
22 1/2"
Weir Perimeter (Feet):
5.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-V
Bolted:
Bolted
Curb Box Available:
Curb Box Available
|
 |
3527-VG |
22 5/8" |
22 1/2" |
- |
8" |
PDF
|
Clear Opening Length:
20 3/8"
Clear Opening Width:
20 3/8"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
22 3/4"
Frame Opening Width:
23"
Frame Flange Length:
24"
Frame Flange Width:
34 1/2"
Grate Length:
22 5/8"
Grate Width:
22 1/2"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-VG
Bolted:
Bolted
|
 |

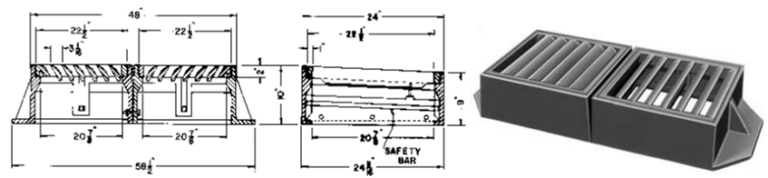

3528-V |
22 1/2" |
22.5" |
- |
9" |
PDF
|
Clear Opening Length:
20.875"
Clear Opening Width:
20.875"
Seat Depth:
2"
Frame Height:
9"
Frame Opening Length:
22.8125"
Frame Opening Width:
22.8125"
Frame Flange Length:
24.875"
Frame Flange Width:
24.875"
Grate Length:
22 1/2"
Grate Width:
22.5"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Catalog Number:
3528-V
|
|
|
3529-V |
22 3/4" |
22 1/2" |
- |
- |
PDF
|
Clear Opening Length:
23 3/8"
Clear Opening Width:
20 7/8"
Seat Depth:
2"
Frame Opening Length:
22 3/4"
Frame Opening Width:
22 3/4"
Frame Flange Length:
58 7/8"
Frame Flange Width:
28 1/2"
Grate Length:
22 3/4"
Grate Width:
22 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
3529-V
Bolted:
Bolted
|
 |
3530-L |
29" |
22 7/8" |
- |
10" |
PDF
|
Clear Opening Length:
26 7/8"
Clear Opening Width:
20 3/4"
Seat Depth:
2 1/16"
Frame Height:
10"
Frame Opening Length:
30"
Frame Opening Width:
24"
Frame Flange Length:
37"
Frame Flange Width:
31"
Grate Length:
29"
Grate Width:
22 7/8"
Weir Perimeter (Feet):
8.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3530-L
|
 |
3531-E |
50" |
26" |
- |
5" |
PDF
|
Clear Opening Length:
48"
Clear Opening Width:
24"
Seat Depth:
3 1/2"
Frame Height:
5"
Frame Opening Length:
48"
Frame Opening Width:
24"
Frame Flange Length:
56"
Frame Flange Width:
32"
Grate Length:
50"
Grate Width:
26"
Weir Perimeter (Feet):
12.7
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3531-E
|
 |

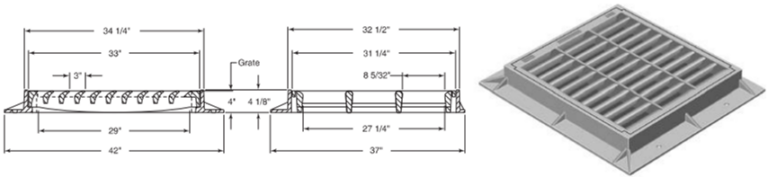

3540 |
33" |
31 1/4" |
- |
4 1/8" |
PDF
|
Clear Opening Length:
31 1/4"
Clear Opening Width:
31 5/16"
Seat Depth:
3 1/8"
Frame Height:
4 1/8"
Frame Opening Length:
31 1/4"
Frame Opening Width:
31 5/16"
Frame Flange Length:
42"
Frame Flange Width:
37"
Grate Length:
33"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
10.6
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3540
|
 |
3540-2 |
33" |
31 1/4" |
- |
3 1/8" |
PDF
|
Clear Opening Length:
31 1/4"
Clear Opening Width:
31 3/8"
Frame Height:
3 1/8"
Frame Opening Length:
31 1/4"
Frame Opening Width:
31 3/8"
Frame Flange Length:
76 1/2"
Frame Flange Width:
37"
Grate Length:
33"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
16.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3540-2
|
 |
3541 |
24 1/16" |
20 1/4" |
- |
7" |
PDF
|
Clear Opening Length:
45 7/8"
Clear Opening Width:
18"
Seat Depth:
2 3/4"
Frame Height:
7"
Frame Opening Length:
49 1/8"
Frame Opening Width:
21 1/4"
Frame Flange Length:
61 3/4"
Frame Flange Width:
28"
Grate Length:
24 1/16"
Grate Width:
20 1/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3541
|
 |
355-5640 |
- |
- |
20 3/8" |
9" |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
355-5640
Clear Opening Diameter:
20 3/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
27"
Grate Diameter:
22 3/4"
|
|
|
3550 |
47 3/4" |
21 3/4" |
- |
5" |
|
Clear Opening Length:
46"
Clear Opening Width:
20"
Seat Depth:
1 1/4"
Frame Height:
5"
Frame Opening Length:
49 3/8"
Frame Opening Width:
23 3/8"
Frame Flange Length:
54"
Frame Flange Width:
28"
Grate Length:
47 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
11.5
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3550
|
