1011-5624 |
- |
- |
30" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1011-5624
Clear Opening Diameter:
30"
Frame Flange Diameter:
38"
Frame Opening Diameter:
33.625"
Grate Diameter:
32"
|
 |
1012-5619 |
- |
- |
21.75" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Weir Perimeter (Feet):
6.1
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1012-5619
Clear Opening Diameter:
21.75"
Frame Flange Diameter:
28 1/2"
Frame Opening Diameter:
24 7/8"
Grate Diameter:
23 1/2"
|
 |
105-5630 |
- |
- |
201/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
105-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 1/2"
Grate Diameter:
22 1/4"
|
 |
1059-5630 |
- |
- |
201/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1059-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
23 3/4"
Grate Diameter:
22 1/4"
|
 |
1065-5665 |
- |
- |
32" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
8.9
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1065-5665
Clear Opening Diameter:
32"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
34.25"
Grate Diameter:
34 1/8"
|
 |
1074-5621 |
- |
- |
18 1/8" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Weir Perimeter (Feet):
5
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1074-5621
Clear Opening Diameter:
18 1/8"
Frame Flange Diameter:
24"
Frame Opening Diameter:
201/2"
Grate Diameter:
19 1/4"
|
 |
108-5624 |
- |
- |
30" |
8 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
8 1/2"
Weir Perimeter (Feet):
8.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
108-5624
Clear Opening Diameter:
30"
Frame Flange Diameter:
42"
Frame Opening Diameter:
34.5"
Grate Diameter:
32"
|
 |
109-5624 |
- |
- |
30" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Weir Perimeter (Feet):
8.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
109-5624
Clear Opening Diameter:
30"
Frame Flange Diameter:
40 3/4"
Frame Opening Diameter:
33.75"
Grate Diameter:
32"
|
 |
111-5624 |
- |
- |
30" |
4.5" |
|
Seat Depth:
1 1/2"
Frame Height:
4.5"
Weir Perimeter (Feet):
8.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
111-5624
Clear Opening Diameter:
30"
Frame Flange Diameter:
38"
Frame Opening Diameter:
32.25"
Grate Diameter:
32"
|
 |
1110-5630 |
- |
- |
201/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1110-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
23 3/4"
Grate Diameter:
22 1/4"
|
 |

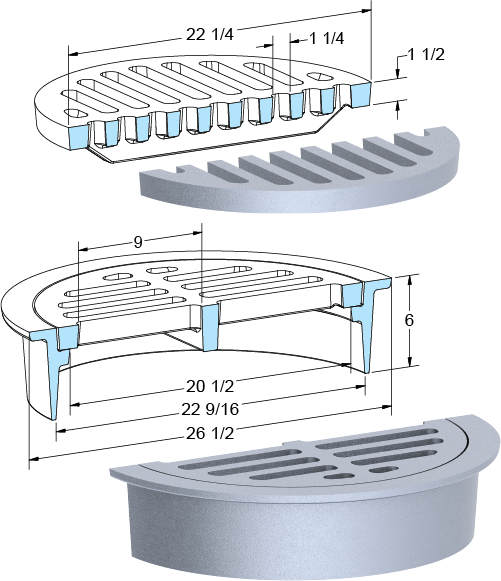

1111-5630 |
- |
- |
201/2" |
6" |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1111-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 9/16"
Grate Diameter:
22 1/4"
|
 |

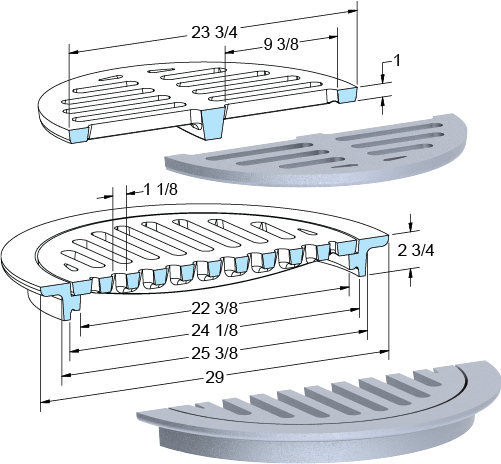

1115-5650 |
- |
- |
22 3/8" |
2 3/4" |
|
Seat Depth:
1"
Frame Height:
2 3/4"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1115-5650
Clear Opening Diameter:
22 3/8"
Frame Flange Diameter:
29"
Frame Opening Diameter:
25 3/8"
Grate Diameter:
23 3/4"
|
 |

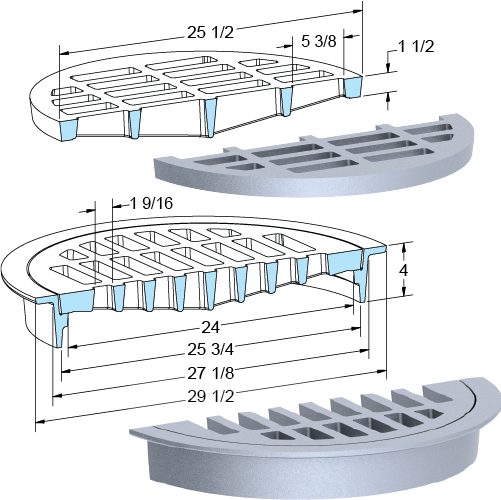

1116-5609 |
- |
- |
24" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1116-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
27.125"
Grate Diameter:
25 1/2"
|
 |

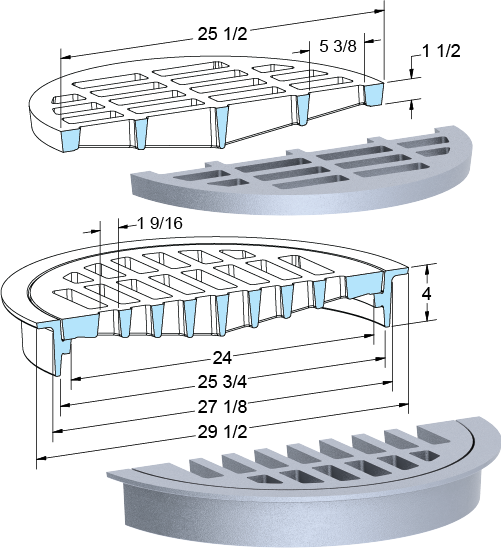

1117-5609 |
- |
- |
24" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1117-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
27.125"
Grate Diameter:
25 1/2"
|
 |

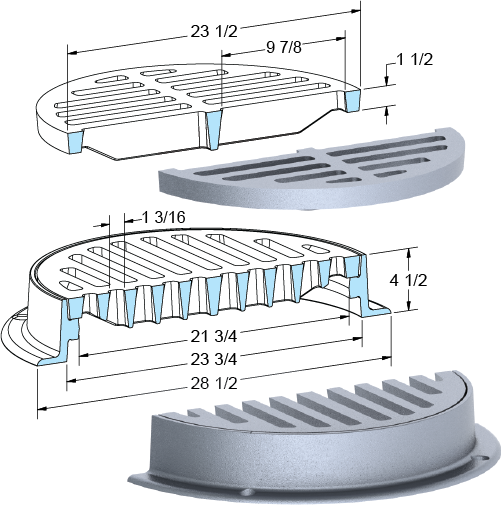

112-5619 |
- |
- |
21 3/4" |
4.5" |
|
Seat Depth:
1 1/2"
Frame Height:
4.5"
Weir Perimeter (Feet):
6.1
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
112-5619
Clear Opening Diameter:
21 3/4"
Frame Flange Diameter:
28 1/2"
Frame Opening Diameter:
23 3/4"
Grate Diameter:
23 1/2"
|
 |

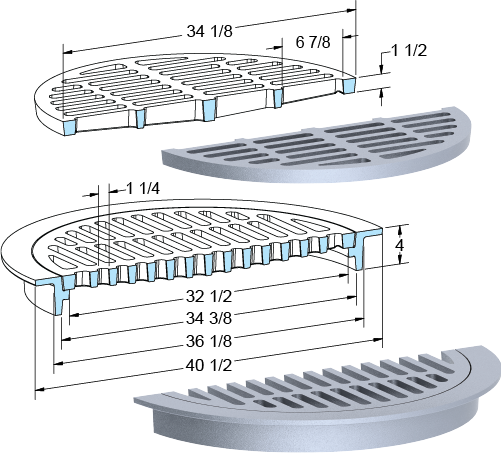

1120-5665 |
- |
- |
32 1/4" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
8.9
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1120-5665
Clear Opening Diameter:
32 1/4"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
36 1/8"
Grate Diameter:
34 1/8"
|
 |

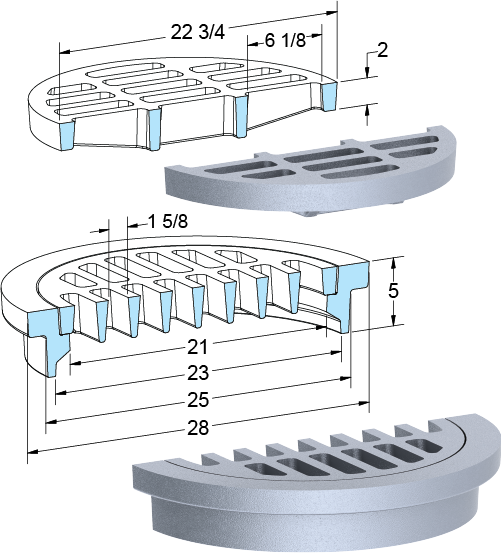

1125-5640 |
- |
- |
21" |
5" |
|
Seat Depth:
2"
Frame Height:
5"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1125-5640
Clear Opening Diameter:
21"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25"
Grate Diameter:
22 3/4"
|
 |

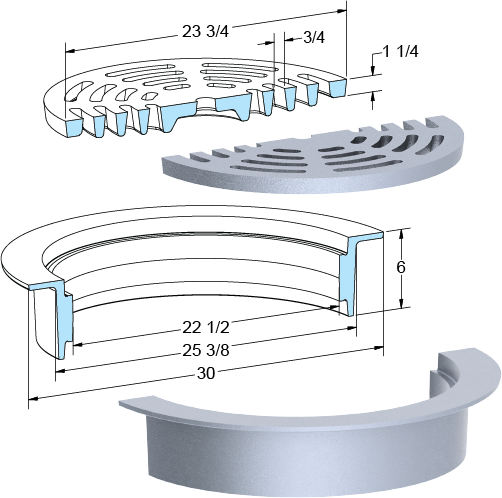

1130-5645 |
- |
- |
22 1/2" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1130-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 3/8"
Grate Diameter:
23 3/4"
|
 |

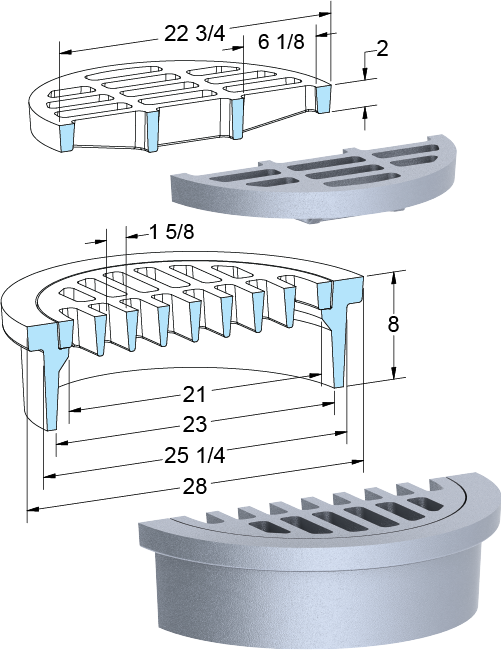

1155-5640 |
- |
- |
21" |
8" |
|
Seat Depth:
2"
Frame Height:
8"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1155-5640
Clear Opening Diameter:
21"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25.25"
Grate Diameter:
22 3/4"
|
 |
1156 |
- |
- |
24" |
5" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
5"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1156
Clear Opening Diameter:
24"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26 1/4"
Grate Diameter:
26"
|
 |
1164-5609 |
- |
- |
24" |
2 1/4" |
|
Seat Depth:
1 1/2"
Frame Height:
2 1/4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1164-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 3/4"
Frame Opening Diameter:
26.75"
Grate Diameter:
25 1/2"
|
 |
117-5609 |
- |
- |
24" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
117-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25.75"
Grate Diameter:
25 1/2"
|
 |
118-5650 |
- |
- |
22 3/8" |
2 3/4" |
|
Seat Depth:
1"
Frame Height:
2 3/4"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
118-5650
Clear Opening Diameter:
22 3/8"
Frame Flange Diameter:
29"
Frame Opening Diameter:
24 1/8"
Grate Diameter:
23 3/4"
|
 |
1182-5645 |
- |
- |
22 3/4" |
10" |
|
Seat Depth:
1 1/4"
Frame Height:
10"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1182-5645
Clear Opening Diameter:
22 3/4"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
22 3/4"
Grate Diameter:
23 3/4"
|
