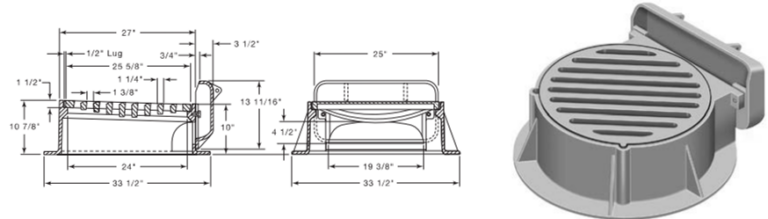

3250-A |
- |
- |
23 7/8" |
10 7/8" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
10 7/8"
Weir Perimeter (Feet):
5.5
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
3250-A
Clear Opening Diameter:
23 7/8"
Frame Flange Diameter:
33 1/2"
Frame Opening Diameter:
27 1/2"
Grate Diameter:
26"
Curb Box Available:
Curb Box Available
|
|
|
3250-B |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 1/2"
Clear Opening Width:
20 9/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 3/4"
Frame Opening Width:
24 3/16"
Frame Flange Length:
38"
Frame Flange Width:
31 3/8"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-B
Curb Box Available:
Curb Box Available
|
|
|
3250-BL |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 1/2"
Clear Opening Width:
20 9/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 13/16"
Frame Opening Width:
24 3/16"
Frame Flange Length:
38"
Frame Flange Width:
31 3/8"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-BL
Curb Box Available:
Curb Box Available
|
|
|
3250-BSP |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 9/16"
Clear Opening Width:
20 9/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 9/16"
Frame Opening Width:
23 1/2"
Frame Flange Length:
38"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
7.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-BSP
|
|
|
3250-BSPW |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 9/16"
Clear Opening Width:
20 9/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 9/16"
Frame Opening Width:
23 1/2"
Frame Flange Length:
38"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
7.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-BSPW
|
|
|
3250-BV |
22 3/4" |
22 3/4" |
- |
9 3/4" |
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 17/32"
Frame Height:
9 3/4"
Frame Opening Length:
24"
Frame Flange Length:
38"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-BV
Curb Box Available:
Curb Box Available
|
|
|
3250-CL |
22 3/4" |
22 3/4" |
- |
9 3/4" |
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 9/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 13/16"
Frame Opening Width:
24 3/16"
Frame Flange Length:
38"
Frame Flange Width:
31 3/8"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-CL
Curb Box Available:
Curb Box Available
|
|
|
3250-D |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
36"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-D
Curb Box Available:
Curb Box Available
|
|
|
3250-DVSP |
22 3/4" |
22 3/4" |
- |
9 3/4" |
PDF
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
36"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-DVSP
Curb Box Available:
Curb Box Available
|
|
|
3250-EVSP |
22 3/4" |
22 3/4" |
- |
9 3/4" |
|
Clear Opening Length:
20 13/16"
Clear Opening Width:
20 13/16"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
23 1/2"
Frame Opening Width:
23 1/2"
Frame Flange Length:
38"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
7.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3250-EVSP
|
|
|
3252-A |
22 3/4" |
22 3/4" |
- |
9 5/8" |
PDF
|
Clear Opening Length:
21"
Clear Opening Width:
20 3/4"
Seat Depth:
1 1/2"
Frame Height:
9 5/8"
Frame Opening Length:
25"
Frame Opening Width:
30 3/4"
Frame Flange Length:
32 3/8"
Frame Flange Width:
36"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3252-A
Curb Box Available:
Curb Box Available
|
|
|
3256 |
- |
- |
18" |
10.9375" |
PDF
|
Seat Depth:
7/16"
Frame Height:
10.9375"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
3256
Clear Opening Diameter:
18"
Frame Flange Diameter:
38"
Frame Opening Diameter:
32"
Grate Diameter:
22"
Bolted:
Bolted
Curb Box Available:
Curb Box Available
|
|
|
3260-A |
48" |
24" |
- |
4" |
PDF
|
Clear Opening Length:
44"
Clear Opening Width:
20"
Seat Depth:
2"
Frame Height:
4"
Frame Opening Length:
44"
Frame Opening Width:
20"
Frame Flange Length:
49 7/8"
Frame Flange Width:
25 7/8"
Grate Length:
48"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3260-A
Curb Box Available:
Curb Box Available
|
|
|
3262-3 |
5 1/2" |
- |
- |
6 1/2" |
PDF
|
Frame Height:
6 1/2"
Frame Opening Length:
6 1/2"
Frame Opening Width:
6"
Grate Length:
5 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3262-3
Curb Box Available:
Curb Box Available
|
|
|
3266 |
20 3/4" |
23 1/2" |
- |
6 1/4" |
PDF
|
Clear Opening Length:
24"
Clear Opening Width:
22"
Seat Depth:
4 3/4"
Frame Height:
6 1/4"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
30 1/2"
Frame Flange Width:
29 1/2"
Grate Length:
20 3/4"
Grate Width:
23 1/2"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3266
|
|
|
3274 |
22 9/16" |
18" |
- |
6 3/4" |
PDF
|
Clear Opening Length:
20 9/16"
Clear Opening Width:
16 3/8"
Seat Depth:
1 3/4"
Frame Height:
6 3/4"
Frame Opening Length:
23"
Frame Opening Width:
22 7/8"
Frame Flange Length:
37"
Grate Length:
22 9/16"
Grate Width:
18"
Weir Perimeter (Feet):
4.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3274
Curb Box Available:
Curb Box Available
|
|
|
3274-A |
22 9/16" |
18" |
- |
6 3/4" |
PDF
|
Clear Opening Length:
20 9/16"
Clear Opening Width:
16 7/8"
Seat Depth:
1 3/4"
Frame Height:
6 3/4"
Frame Opening Length:
23"
Frame Opening Width:
23 3/8"
Frame Flange Length:
37"
Grate Length:
22 9/16"
Grate Width:
18"
Weir Perimeter (Feet):
4.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3274-A
Curb Box Available:
Curb Box Available
|
|
|
3275 |
21 1/4" |
17" |
- |
6 1/2" |
PDF
|
Clear Opening Length:
19"
Clear Opening Width:
14 11/16"
Seat Depth:
2"
Frame Height:
6 1/2"
Frame Opening Length:
21 3/4"
Frame Opening Width:
23 1/2"
Frame Flange Length:
34 1/2"
Grate Length:
21 1/4"
Grate Width:
17"
Weir Perimeter (Feet):
1
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3275
Curb Box Available:
Curb Box Available
|
|
|
3278-A |
22" |
17" |
- |
10" |
PDF
|
Clear Opening Length:
20 1/4"
Clear Opening Width:
14 3/8"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
23 1/8"
Frame Opening Width:
23 15/16"
Frame Flange Length:
36"
Frame Flange Width:
31"
Grate Length:
22"
Grate Width:
17"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3278-A
Curb Box Available:
Curb Box Available
|
|
|
3278-AL |
21 3/4" |
16 3/4" |
- |
10" |
|
Clear Opening Length:
20 1/4"
Clear Opening Width:
14 3/8"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
23 1/8"
Frame Opening Width:
23 15/16"
Frame Flange Length:
36"
Frame Flange Width:
31"
Grate Length:
21 3/4"
Grate Width:
16 3/4"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3278-AL
Curb Box Available:
Curb Box Available
|
|
|
3278-AW |
22" |
17" |
- |
10" |
PDF
|
Clear Opening Length:
20 1/4"
Clear Opening Width:
14 3/8"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
23 1/8"
Frame Opening Width:
23 15/16"
Frame Flange Length:
36"
Frame Flange Width:
31"
Grate Length:
22"
Grate Width:
17"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3278-AW
Curb Box Available:
Curb Box Available
|
|
|
3280-BV |
22 3/4" |
22 3/4" |
- |
9 3/4" |
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 1/2"
Frame Height:
9 3/4"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
38"
Frame Flange Width:
31 7/16"
Grate Length:
22 3/4"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3280-BV
Curb Box Available:
Curb Box Available
|
|
|
3281-A |
28 3/4" |
11 5/8" |
- |
10" |
PDF
|
Clear Opening Length:
27"
Clear Opening Width:
11"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
29 1/2"
Frame Opening Width:
18 1/4"
Frame Flange Length:
36"
Frame Flange Width:
29"
Grate Length:
28 3/4"
Grate Width:
11 5/8"
Weir Perimeter (Feet):
4.3
Open Area (Sq Ft):
1"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3281-A
Bolted:
Bolted
Curb Box Available:
Curb Box Available
|
|
|
3281-AL |
28 3/4" |
11 5/8" |
- |
10" |
|
Clear Opening Length:
27"
Clear Opening Width:
16 21/32"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
30 1/16"
Frame Opening Width:
19"
Frame Flange Length:
36"
Frame Flange Width:
29"
Grate Length:
28 3/4"
Grate Width:
11 5/8"
Weir Perimeter (Feet):
4.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3281-AL
Bolted:
Bolted
Curb Box Available:
Curb Box Available
|
