4014-C1 |
PDF
|
Seat Depth:
1 1/2"
Grate Length:
35.625"
Grate Width:
15"
Overall Scupper Length:
37 5/8"
Overall Scupper Height:
11"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
H-20
Material:
Ductile Iron, Gray Iron
Shape:
Rectangle
Outlet Type:
Plain
Grate Type:
A, L
Catalog Number:
4014-C1
Bolted:
Bolted
|
|
|
4014-C2 |
PDF
|
Seat Depth:
1 1/2"
Grate Length:
35.625"
Grate Width:
15"
Overall Scupper Length:
37 5/8"
Overall Scupper Height:
11"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
H-20
Material:
Ductile Iron, Gray Iron
Shape:
Rectangle
Outlet Type:
Plain
Grate Type:
A, C
Catalog Number:
4014-C2
Bolted:
Bolted
|
|
|
4014-T1L |
PDF
|
Seat Depth:
1 1/4"
Grate Length:
36.6875"
Grate Width:
7.375"
Overall Scupper Length:
40"
Overall Scupper Height:
12"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Rectangle
Outlet Type:
Flanged
Grate Type:
L
Catalog Number:
4014-T1L
Bolted:
Bolted
|
|
|
4014-T2 |
PDF
|
Seat Depth:
1 1/4"
Grate Length:
22.4375"
Grate Width:
7.5"
Overall Scupper Length:
26"
Overall Scupper Height:
7 1/4"
Weir Perimeter (Feet):
4.5
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Rectangle
Outlet Type:
Flanged
Grate Type:
B
Catalog Number:
4014-T2
Bolted:
Bolted
|
|
|
4014-TL |
PDF
|
Seat Depth:
1 1/4"
Grate Length:
36.75"
Grate Width:
7.5"
Overall Scupper Length:
40"
Overall Scupper Height:
7 1/4"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Rectangle
Outlet Type:
Flanged
Grate Type:
L
Catalog Number:
4014-TL
Bolted:
Bolted
|
|
|
4016-K |
PDF
|
Seat Depth:
1 1/4"
Grate Length:
19"
Grate Width:
19"
Overall Scupper Length:
20 7/8"
Overall Scupper Height:
12 1/2"
Weir Perimeter (Feet):
6.3
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square
Outlet Type:
Plain
Grate Type:
D
Catalog Number:
4016-K
Bolted:
Bolted
Anchor Holes:
Anchor Holes
|
 |

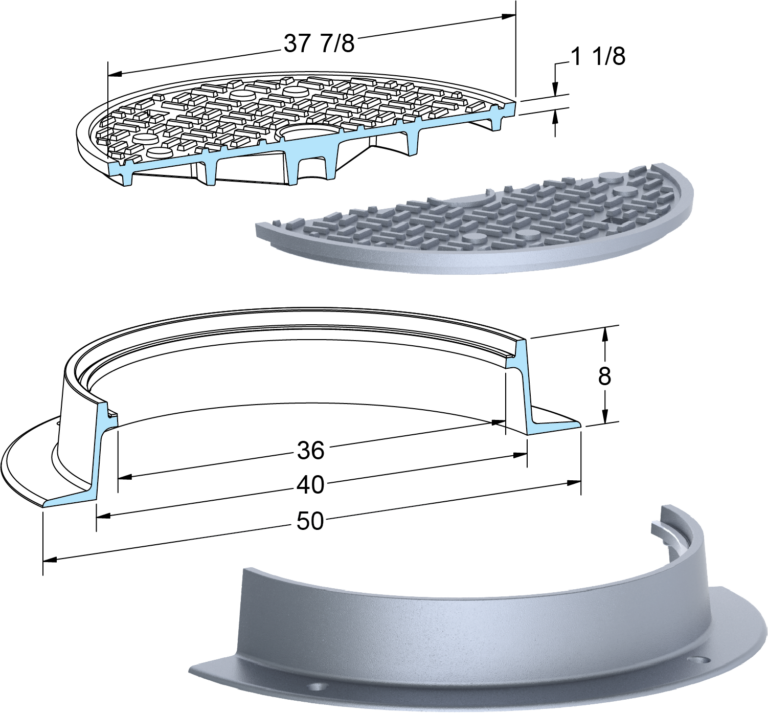

402 |
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
402
Clear Opening Diameter:
36"
Cover Diameter:
37 7/8"
Frame Flange Diameter:
50"
Frame Opening Diameter:
40"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

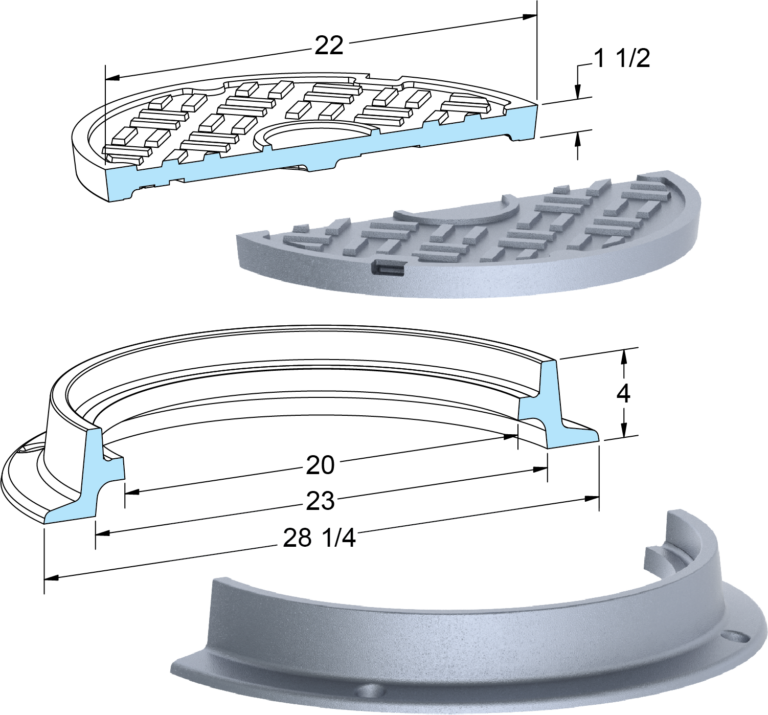

404 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Catalog Number:
404
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
28 1/4"
Frame Opening Diameter:
23"
|
 |

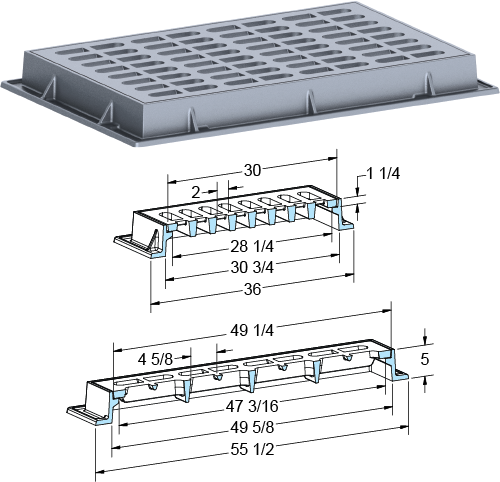

4040-6040 |
|
Clear Opening Length:
47 3/16"
Clear Opening Width:
28 1/4"
Seat Depth:
1 1/4"
Frame Height:
5"
Frame Opening Length:
49 5/8"
Frame Opening Width:
30 3/4"
Frame Flange Length:
55 1/2"
Frame Flange Width:
36"
Grate Length:
49 1/4"
Grate Width:
30"
Weir Perimeter (Feet):
13.2
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4040-6040
|
 |

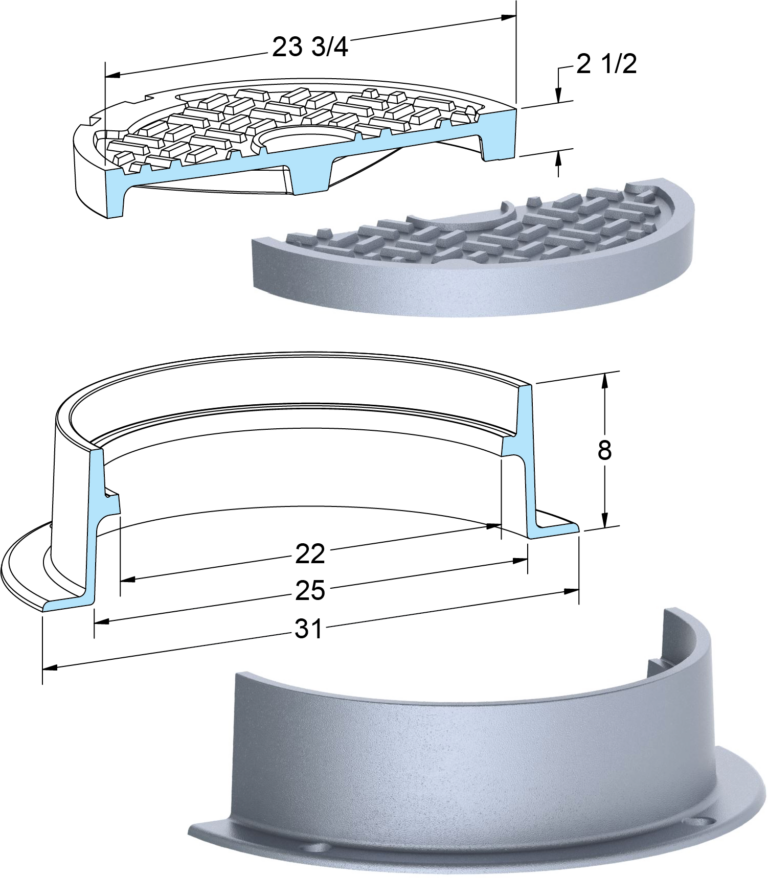

405 |
|
Seat Depth:
2 1/2"
Frame Height:
8"
Material:
Gray Iron
Catalog Number:
405
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
31"
Frame Opening Diameter:
25"
|
 |

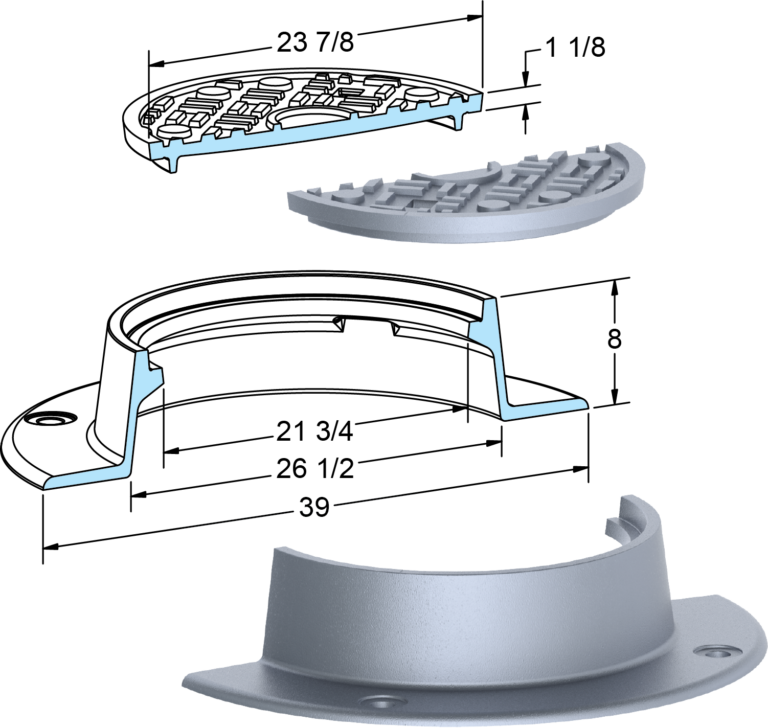

407 |
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
407
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
39"
Frame Opening Diameter:
26 1/2"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
4076-6376 |
|
Clear Opening Length:
36 1/4"
Clear Opening Width:
36 1/4"
Seat Depth:
1"
Frame Height:
3 1/2"
Frame Opening Length:
39"
Frame Opening Width:
39"
Frame Flange Length:
46"
Frame Flange Width:
46"
Grate Length:
38 3/4"
Grate Width:
38 3/4"
Weir Perimeter (Feet):
12.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4076-6376
|
 |
4102-6130 |
|
Clear Opening Length:
23 1/2"
Clear Opening Width:
12 1/4"
Seat Depth:
2"
Frame Height:
3"
Frame Opening Length:
23 1/2"
Frame Opening Width:
12 1/4"
Frame Flange Length:
33"
Frame Flange Width:
22"
Grate Length:
25 3/8"
Grate Width:
14"
Weir Perimeter (Feet):
6.5
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4102-6130
|
 |

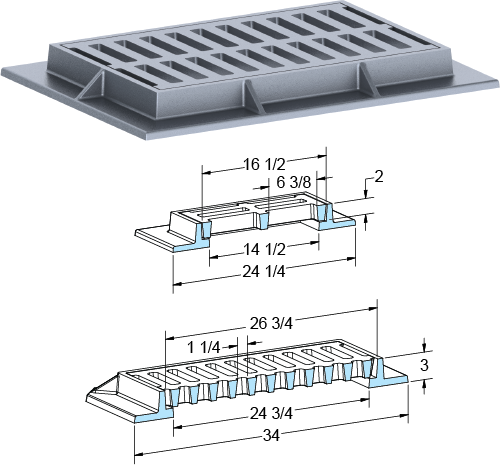

4103-6131 |
|
Clear Opening Length:
24 3/4"
Clear Opening Width:
14 1/2"
Seat Depth:
2"
Frame Height:
3"
Frame Opening Length:
24 3/4"
Frame Opening Width:
14 1/2"
Frame Flange Length:
34"
Frame Flange Width:
24.25"
Grate Length:
26 3/4"
Grate Width:
16 1/2"
Weir Perimeter (Feet):
7.2
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4103-6131
|
 |

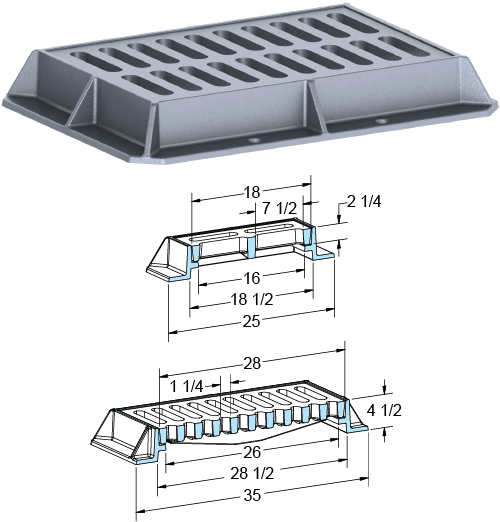

4105-6220 |
|
Clear Opening Length:
26"
Clear Opening Width:
16"
Seat Depth:
2 1/4"
Frame Height:
4 1/2"
Frame Opening Length:
28.5"
Frame Opening Width:
18.5"
Frame Flange Length:
35"
Frame Flange Width:
25"
Grate Length:
28"
Grate Width:
18"
Weir Perimeter (Feet):
7.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4105-6220
|
 |

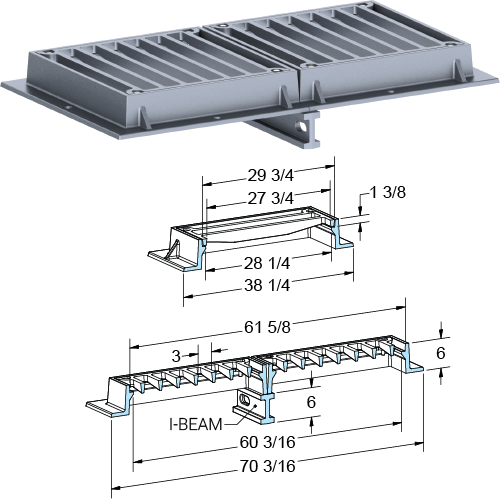

4107-6356 |
PDF
|
Clear Opening Length:
28 1/4"
Clear Opening Width:
28 1/4"
Seat Depth:
1 3/8"
Frame Height:
6"
Frame Opening Length:
30 1/4"
Frame Opening Width:
30 1/4"
Frame Flange Length:
35 1/4"
Frame Flange Width:
35.125"
Grate Length:
29 3/4"
Grate Width:
29 3/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4107-6356
|
 |

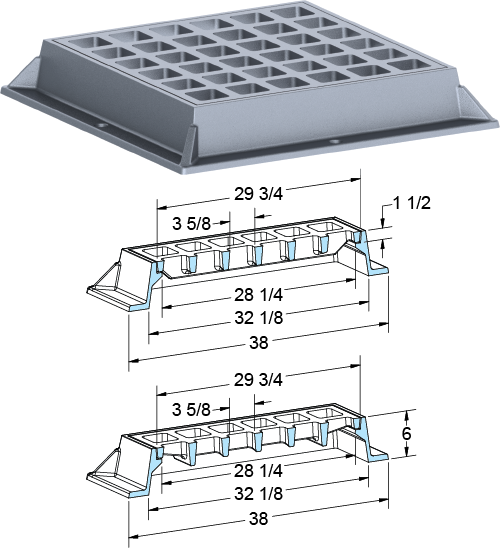

4108-6355 |
PDF
|
Clear Opening Length:
28 1/4"
Clear Opening Width:
28 1/4"
Seat Depth:
1 1/2"
Frame Height:
6"
Frame Opening Length:
32 1/4"
Frame Opening Width:
32 1/4"
Frame Flange Length:
38"
Frame Flange Width:
38"
Grate Length:
29 3/4"
Grate Width:
29 3/4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4108-6355
|
 |

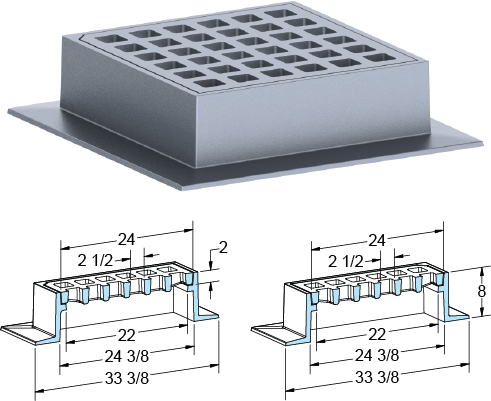

4110-6027 |
PDF
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
24 3/8"
Frame Opening Width:
24 3/8"
Frame Flange Length:
33 3/8"
Frame Flange Width:
33 3/8"
Grate Length:
24"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4110-6027
|
 |

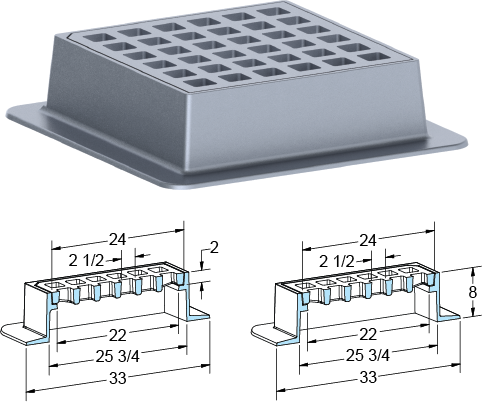

4111-6027 |
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
25 3/4"
Frame Opening Width:
25 3/4"
Frame Flange Length:
33"
Frame Flange Width:
33"
Grate Length:
24"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4111-6027
|
 |
4112-6112 |
|
Clear Opening Length:
19"
Clear Opening Width:
21 3/16"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
22 7/8"
Frame Opening Width:
25"
Frame Flange Length:
29"
Frame Flange Width:
31 3/16"
Grate Length:
21"
Grate Width:
23 3/16"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4112-6112
|
 |

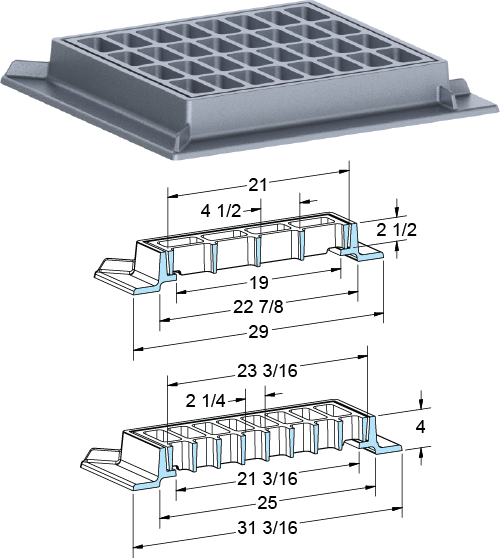

4113-6112 |
|
Clear Opening Length:
19"
Clear Opening Width:
21 3/16"
Seat Depth:
2 1/2"
Frame Height:
4"
Frame Opening Length:
22 7/8"
Frame Opening Width:
25"
Frame Flange Length:
29"
Frame Flange Width:
31 3/16"
Grate Length:
21"
Grate Width:
23 3/16"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4113-6112
|
 |
4114-6028 |
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
2"
Frame Height:
4"
Frame Opening Length:
24 3/8"
Frame Opening Width:
24 3/8"
Frame Flange Length:
33 3/8"
Frame Flange Width:
33 3/8"
Grate Length:
24"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4114-6028
|
 |
4116-6028 |
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
2"
Frame Height:
6"
Frame Opening Length:
24 3/8"
Frame Opening Width:
24 3/8"
Frame Flange Length:
33 3/8"
Frame Flange Width:
33 3/8"
Grate Length:
24"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4116-6028
|
 |

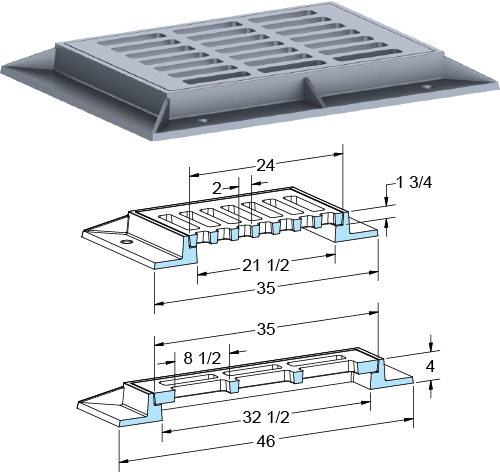

4120-6170 |
|
Clear Opening Length:
32 1/2"
Clear Opening Width:
21 1/2"
Seat Depth:
1 3/4"
Frame Height:
4"
Frame Opening Length:
32 1/2"
Frame Opening Width:
21 1/2"
Frame Flange Length:
40 1/8"
Frame Flange Width:
28 1/8"
Grate Length:
35"
Grate Width:
24"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4120-6170
|
