352 |
|
Seat Depth:
1 1/2"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
352
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
23 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
3525-L |
PDF
|
Material:
Gray Iron
Catalog Number:
3525-L
|
 |
3526-L |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
201/2"
Seat Depth:
1 3/4"
Frame Opening Length:
25 1/8"
Frame Opening Width:
23 7/16"
Frame Flange Length:
34 1/2"
Frame Flange Width:
29 1/2"
Grate Length:
24"
Grate Width:
22 1/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Rectangle
Catalog Number:
3526-L
|
 |

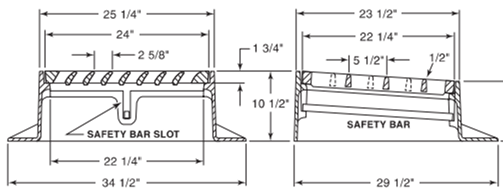

3526-L |
PDF
|
Clear Opening Length:
22 1⁄4"
Clear Opening Width:
20 1⁄2"
Seat Depth:
1 3⁄4"
Frame Opening Length:
25 1⁄8"
Frame Opening Width:
23 7⁄16"
Frame Flange Length:
34 1⁄2"
Frame Flange Width:
29 1⁄"
Grate Length:
24"
Grate Width:
22 1⁄4"
Highest Load Rating:
Contact NEI
Shape:
Rectangle
Catalog Number:
3526-L
|
 |
3527-M |
PDF
|
Clear Opening Length:
19 3/4"
Clear Opening Width:
20"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
46 1/4"
Frame Opening Width:
23 5/16"
Frame Flange Length:
47 11/16"
Frame Flange Width:
34 1/2"
Grate Length:
22 1/2"
Grate Width:
22 1/2"
Weir Perimeter (Feet):
11.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-M
|
 |
3527-V |
PDF
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
20 5/8"
Seat Depth:
2"
Frame Height:
10"
Frame Opening Length:
23 1/2"
Frame Opening Width:
29 3/4"
Frame Flange Length:
34 7/8"
Frame Flange Width:
33"
Grate Length:
22 1/2"
Grate Width:
22 1/2"
Weir Perimeter (Feet):
5.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-V
Bolted:
Bolted
Curb Box Available:
Curb Box Available
|
 |
3527-VG |
PDF
|
Clear Opening Length:
20 3/8"
Clear Opening Width:
20 3/8"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
22 3/4"
Frame Opening Width:
23"
Frame Flange Length:
24"
Frame Flange Width:
34 1/2"
Grate Length:
22 5/8"
Grate Width:
22 1/2"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3527-VG
Bolted:
Bolted
|
 |
3528-V |
PDF
|
Clear Opening Length:
20.875"
Clear Opening Width:
20.875"
Seat Depth:
2"
Frame Height:
9"
Frame Opening Length:
22.8125"
Frame Opening Width:
22.8125"
Frame Flange Length:
24.875"
Frame Flange Width:
24.875"
Grate Length:
22 1/2"
Grate Width:
22.5"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Catalog Number:
3528-V
|
|
|
3529-V |
PDF
|
Clear Opening Length:
23 3/8"
Clear Opening Width:
20 7/8"
Seat Depth:
2"
Frame Opening Length:
22 3/4"
Frame Opening Width:
22 3/4"
Frame Flange Length:
58 7/8"
Frame Flange Width:
28 1/2"
Grate Length:
22 3/4"
Grate Width:
22 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
3529-V
Bolted:
Bolted
|
 |
3530-L |
PDF
|
Clear Opening Length:
26 7/8"
Clear Opening Width:
20 3/4"
Seat Depth:
2 1/16"
Frame Height:
10"
Frame Opening Length:
30"
Frame Opening Width:
24"
Frame Flange Length:
37"
Frame Flange Width:
31"
Grate Length:
29"
Grate Width:
22 7/8"
Weir Perimeter (Feet):
8.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3530-L
|
 |
3531-E |
PDF
|
Clear Opening Length:
48"
Clear Opening Width:
24"
Seat Depth:
3 1/2"
Frame Height:
5"
Frame Opening Length:
48"
Frame Opening Width:
24"
Frame Flange Length:
56"
Frame Flange Width:
32"
Grate Length:
50"
Grate Width:
26"
Weir Perimeter (Feet):
12.7
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3531-E
|
 |
3540 |
PDF
|
Clear Opening Length:
31 1/4"
Clear Opening Width:
31 5/16"
Seat Depth:
3 1/8"
Frame Height:
4 1/8"
Frame Opening Length:
31 1/4"
Frame Opening Width:
31 5/16"
Frame Flange Length:
42"
Frame Flange Width:
37"
Grate Length:
33"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
10.6
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3540
|
 |
3540-2 |
PDF
|
Clear Opening Length:
31 1/4"
Clear Opening Width:
31 3/8"
Frame Height:
3 1/8"
Frame Opening Length:
31 1/4"
Frame Opening Width:
31 3/8"
Frame Flange Length:
76 1/2"
Frame Flange Width:
37"
Grate Length:
33"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
16.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3540-2
|
 |
3541 |
PDF
|
Clear Opening Length:
45 7/8"
Clear Opening Width:
18"
Seat Depth:
2 3/4"
Frame Height:
7"
Frame Opening Length:
49 1/8"
Frame Opening Width:
21 1/4"
Frame Flange Length:
61 3/4"
Frame Flange Width:
28"
Grate Length:
24 1/16"
Grate Width:
20 1/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3541
|
 |
355 |
|
Seat Depth:
2"
Frame Height:
9"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
355
Clear Opening Diameter:
20 3/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
27"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
355-5640 |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
355-5640
Clear Opening Diameter:
20 3/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
27"
Grate Diameter:
22 3/4"
|
|
|
3550 |
|
Clear Opening Length:
46"
Clear Opening Width:
20"
Seat Depth:
1 1/4"
Frame Height:
5"
Frame Opening Length:
49 3/8"
Frame Opening Width:
23 3/8"
Frame Flange Length:
54"
Frame Flange Width:
28"
Grate Length:
47 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
11.5
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3550
|
 |
3550-2 |
|
Clear Opening Length:
45 1/2"
Clear Opening Width:
19 1/2"
Seat Depth:
1 1/4"
Frame Height:
5"
Frame Opening Length:
48"
Frame Opening Width:
45"
Frame Flange Length:
54"
Frame Flange Width:
51"
Grate Length:
47 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
15.2
Highest Load Rating:
H-25
Shape:
Square/Rectangle
Catalog Number:
3550-2
|
 |
3555 |
PDF
|
Clear Opening Length:
17 5/8"
Clear Opening Width:
11 5/8"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
17 5/8"
Frame Opening Width:
11 5/8"
Frame Flange Length:
24 5/8"
Frame Flange Width:
18 5/8"
Grate Length:
19"
Grate Width:
13"
Weir Perimeter (Feet):
5.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3555
|
|
|
3561 |
PDF
|
Clear Opening Length:
30"
Clear Opening Width:
30"
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Frame Opening Length:
32 7/16"
Frame Opening Width:
32 7/16"
Frame Flange Length:
36"
Frame Flange Width:
36"
Grate Length:
31 1/4"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
10.4
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3561
|
 |
3563-HB |
PDF
|
Clear Opening Length:
22 1/2"
Clear Opening Width:
18 1/2"
Seat Depth:
1 5/8"
Frame Height:
4 1/2"
Frame Opening Length:
24 1/4"
Frame Opening Width:
20 1/4"
Frame Flange Length:
29 1/4"
Frame Flange Width:
25 1/4"
Grate Length:
24"
Grate Width:
20"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3563-HB
Bolted:
Bolted
|
 |
3570 |
PDF
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 7/16"
Frame Opening Width:
22 5/8"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570
|
 |
3570-A |
PDF
|
Clear Opening Length:
23 1/4"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
4"
Frame Opening Length:
24"
Frame Opening Width:
22 1/4"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570-A
|
|
|
3570-W |
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 13/16"
Frame Opening Width:
22 5/8"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570-W
|
