706 |
23 3/4" |
2" |
22" |
5 5/8" |
PDF
|
Seat Depth:
2"
Frame Height:
5 5/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
706
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
31 3/4"
Frame Opening Diameter:
25 15/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

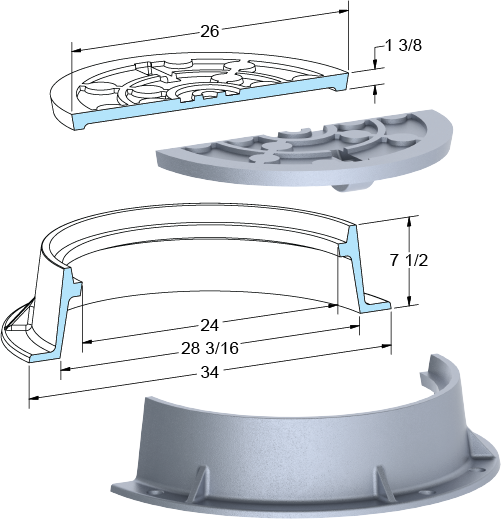

710 |
26" |
1 3/8" |
24" |
7 1/2" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
710
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
28 3/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
715 |
23 1/2" |
2" |
21 3/4" |
8" |
PDF
|
Seat Depth:
2"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
715
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
720 |
23 1/2" |
2" |
22" |
8" |
PDF
|
Seat Depth:
2"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
720
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33"
Frame Opening Diameter:
24 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

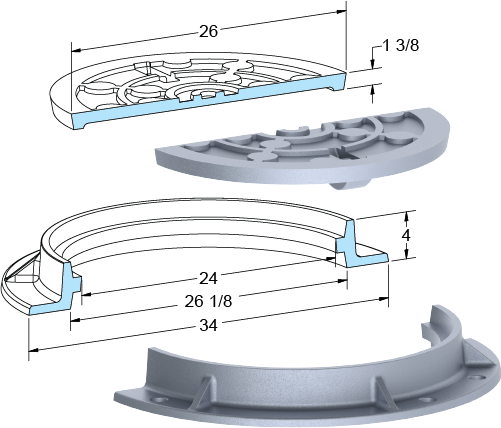

725 |
26" |
1 3/8" |
24" |
4" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
725
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

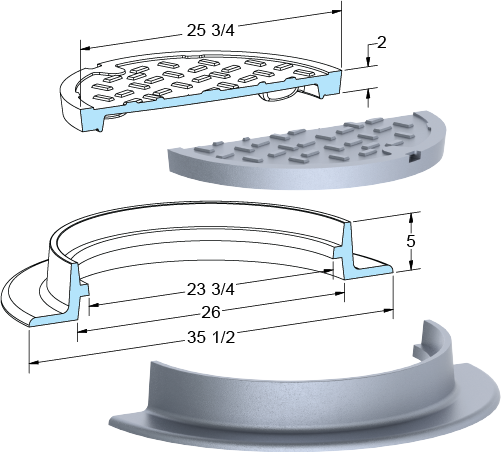

726 |
25 3/4" |
2" |
23 3/4" |
5" |
PDF
|
Seat Depth:
2"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
726
Clear Opening Diameter:
23 3/4"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

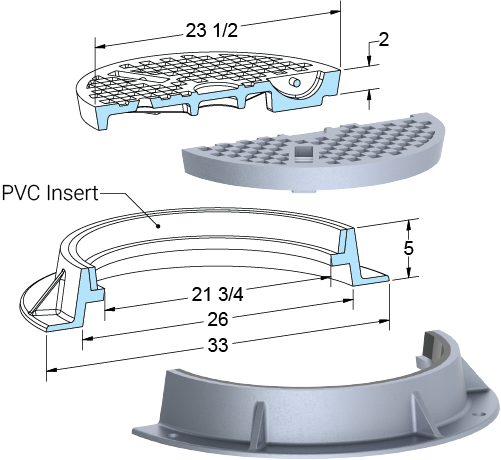

730 |
23 1/2" |
2" |
21 3/4" |
5" |
|
Seat Depth:
2"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
730
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

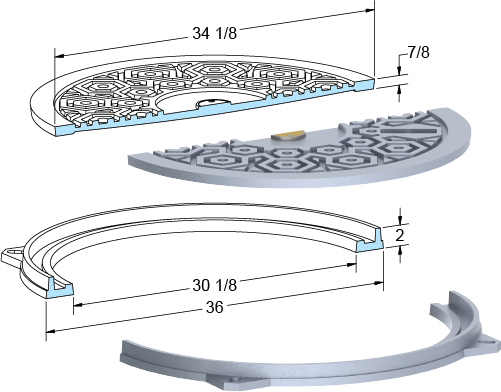

735 |
34 1/8" |
7/8" |
30 1/8" |
2" |
PDF
|
Seat Depth:
7/8"
Frame Height:
2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
735
Clear Opening Diameter:
30 1/8"
Cover Diameter:
34 1/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
30 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

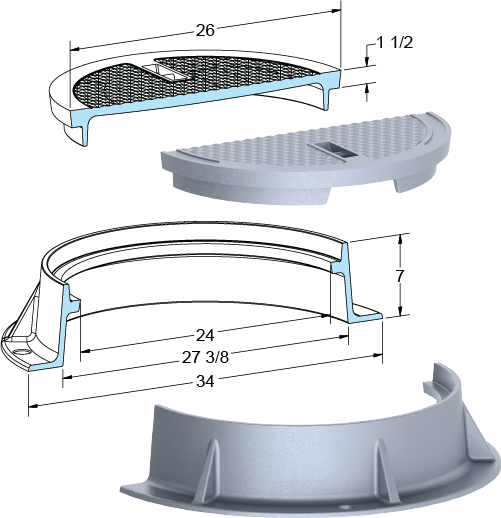

745 |
26" |
1 1/2" |
24" |
7" |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
745
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
27 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
7506-E |
11 1/2" |
1/2" |
10" |
16" |
PDF
|
Seat Depth:
1/2"
Frame Height:
16"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
7506-E
Clear Opening Diameter:
10"
Cover Diameter:
11 1/2"
Frame Flange Diameter:
13"
Frame Opening Diameter:
10"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
7518-A |
- |
1/2" |
- |
7" |
PDF
|
Seat Depth:
1/2"
Frame Height:
7"
Frame Opening Length:
13 7/16"
Frame Opening Width:
19 9/16"
Frame Flange Length:
16 1/2"
Frame Flange Width:
22 5/16"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
7518-A
Bolted:
Bolted
Gasket:
Gasket
Cover Length:
15 1/2"
Cover Width:
21 1/2"
|
 |

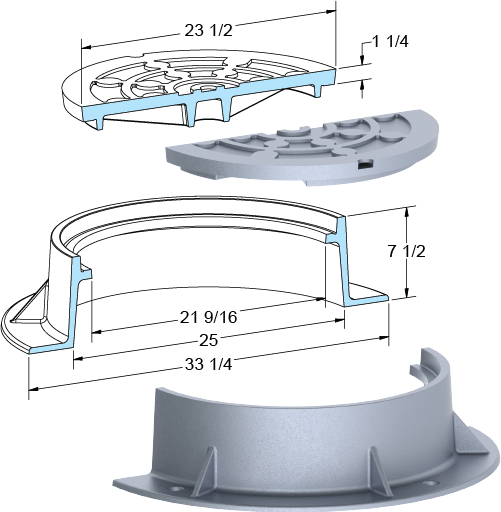

753 |
23 1/2" |
1 1/4" |
21 9/16" |
7 1/2" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
753
Clear Opening Diameter:
21 9/16"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

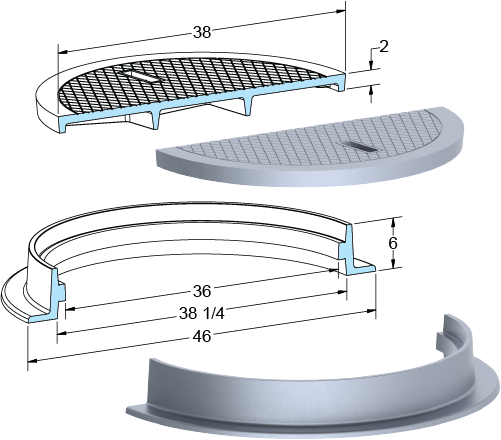

754 |
38" |
2" |
36" |
6" |
PDF
|
Seat Depth:
2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
754
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
46"
Frame Opening Diameter:
38 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

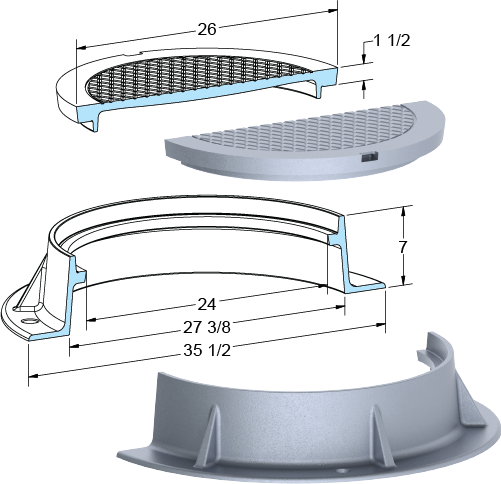

755 |
26" |
1 1/2" |
24" |
7" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
755
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

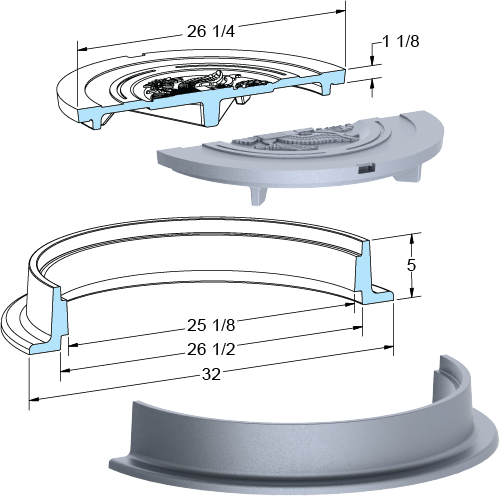

756 |
26 1/4" |
1 1/8" |
25 1/8" |
5" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
756
Clear Opening Diameter:
25 1/8"
Cover Diameter:
26 1/4"
Frame Flange Diameter:
32"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

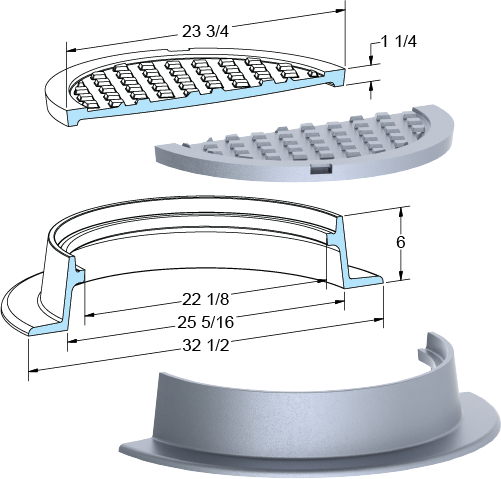

758 |
23 3/4" |
1 1/4" |
22 1/8" |
6" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
758
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
32 1/2"
Frame Opening Diameter:
25 5/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

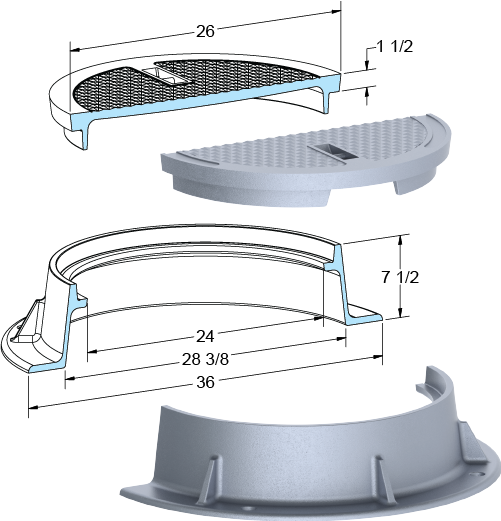

759 |
26" |
1 1/2" |
24" |
7 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
759
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
36"
Frame Opening Diameter:
28 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
760 |
32" |
1 1/2" |
30" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
760
Clear Opening Diameter:
30"
Cover Diameter:
32"
Frame Flange Diameter:
40 3/4"
Frame Opening Diameter:
32 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

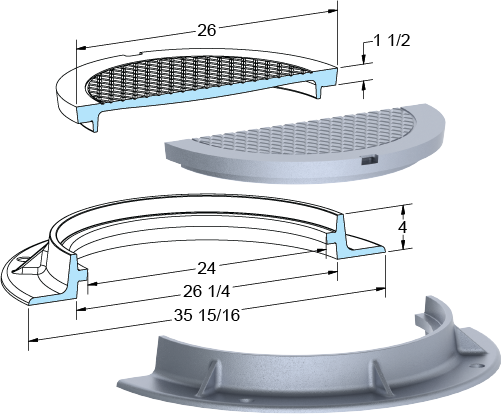

763 |
26" |
1 1/2" |
24" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
763
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
35 15/16"
Frame Opening Diameter:
26 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

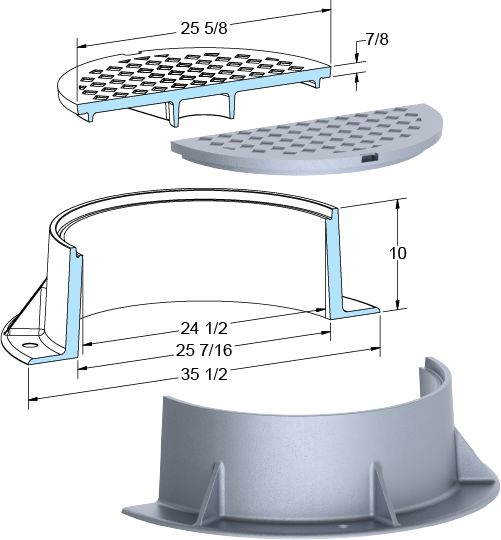

764 |
25 5/8" |
7/8" |
24 1/2" |
10" |
PDF
|
Seat Depth:
7/8"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
764
Clear Opening Diameter:
24 1/2"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
25 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

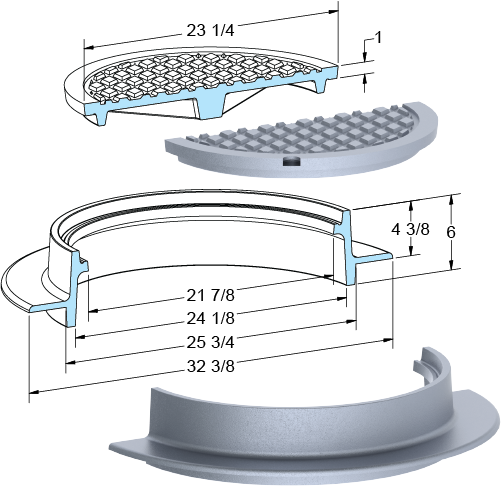

765 |
23 1/4" |
1" |
21 7/8" |
4 3/8" |
PDF
|
Seat Depth:
1"
Frame Height:
4 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
765
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
32 3/8"
Frame Opening Diameter:
24 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

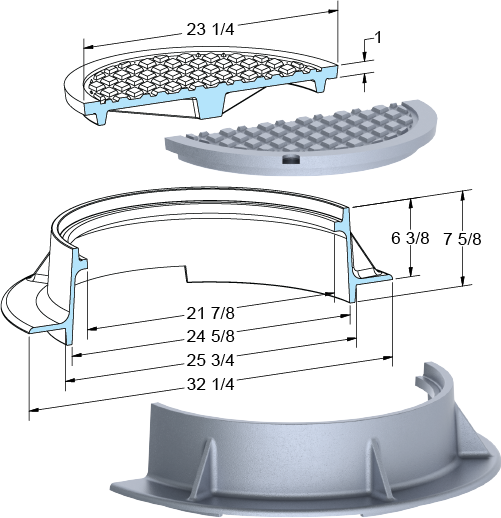

766 |
23 1/4" |
1" |
21 1/2" |
6 3/8" |
PDF
|
Seat Depth:
1"
Frame Height:
6 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
766
Clear Opening Diameter:
21 1/2"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
25 19/32"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

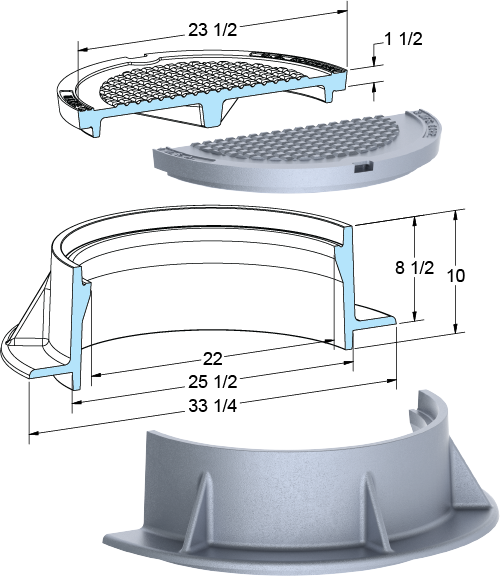

767 |
23 1/2" |
1 1/2" |
22" |
8 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
8 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
767
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

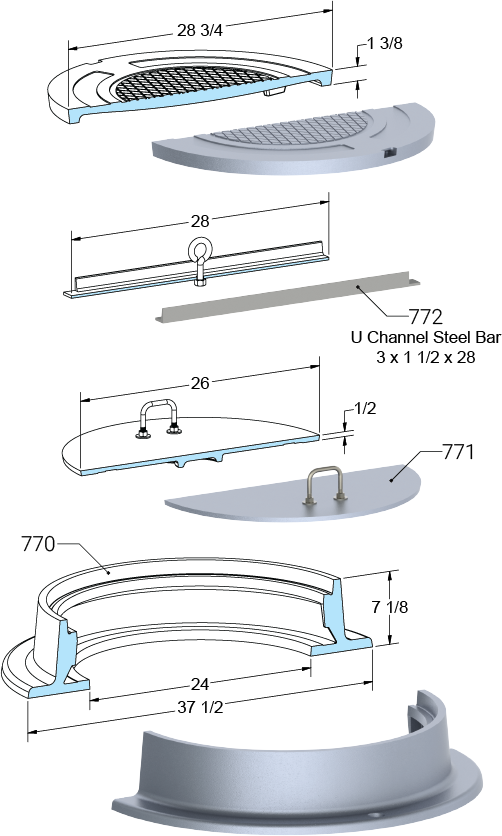

769 |
28 3/4" |
1 3/8" |
24" |
7 1/8" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
7 1/8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
769
Clear Opening Diameter:
24"
Cover Diameter:
28 3/4"
Frame Flange Diameter:
37 1/2"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
