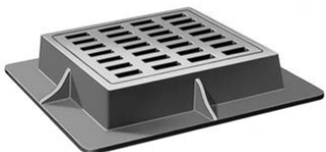

3437 |
|
Clear Opening Length:
34"
Clear Opening Width:
34"
Frame Height:
7"
Frame Flange Length:
45"
Frame Flange Width:
45"
Grate Length:
36"
Grate Width:
36"
Weir Perimeter (Feet):
12
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3437
Bolted:
Bolted
ADA Compliant Grate:
ADA Compliant Grate
|
|
|

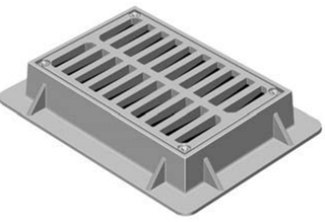

3475 |
|
Seat Depth:
2"
Frame Height:
6.25"
Grate Length:
35.5"
Grate Width:
23.5"
Weir Perimeter (Feet):
9.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475
Bolted:
Bolted
|
|
|

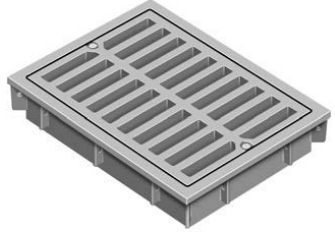

3475-E |
|
Clear Opening Length:
32.5"
Clear Opening Width:
23.875"
Frame Flange Length:
38"
Frame Flange Width:
26.875"
Grate Length:
35"
Grate Width:
23.75"
Weir Perimeter (Feet):
9.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-E
Bolted:
Bolted
|
|
|

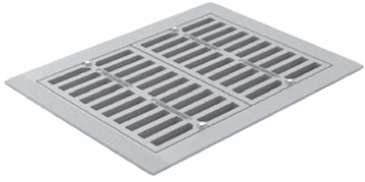

3475-F |
|
Clear Opening Length:
47.625"
Clear Opening Width:
33.625"
Frame Height:
4.375"
Frame Flange Length:
57"
Frame Flange Width:
44.125"
Grate Length:
47.5"
Grate Width:
35"
Weir Perimeter (Feet):
13.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-F
Bolted:
Bolted
|
|
|

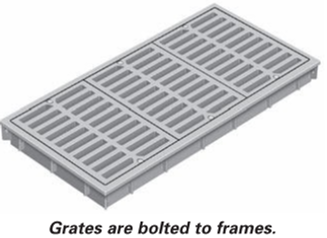

3475-G |
|
Clear Opening Length:
71.875"
Clear Opening Width:
32.5"
Frame Flange Length:
74.875"
Frame Flange Width:
38"
Grate Length:
71.5"
Grate Width:
35"
Weir Perimeter (Feet):
17.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-G
Bolted:
Bolted
|
|
|

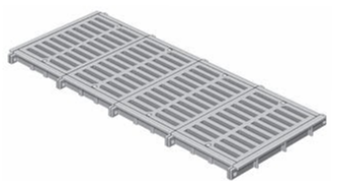

3475-H |
|
Clear Opening Length:
96"
Clear Opening Width:
32"
Frame Flange Length:
99.5"
Frame Flange Width:
40.75"
Grate Length:
95"
Grate Width:
35"
Weir Perimeter (Feet):
21.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-H
Bolted:
Bolted
|
|
|

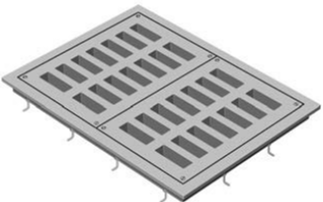

3477-A |
|
Clear Opening Length:
39.375"
Clear Opening Width:
27.5"
Frame Flange Length:
47.375"
Frame Flange Width:
35.5"
Grate Length:
42.75"
Grate Width:
31.125"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3477-A
Bolted:
Bolted
|
|
|

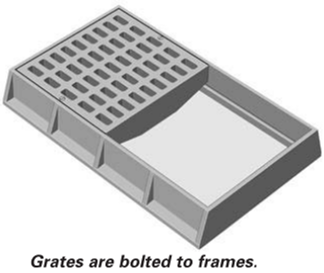

3480 |
|
Clear Opening Length:
49.75"
Clear Opening Width:
23.9375"
Frame Height:
5.75"
Frame Flange Length:
52"
Frame Flange Width:
32"
Grate Length:
49.75"
Grate Width:
26.625"
Weir Perimeter (Feet):
12.7
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3480
Bolted:
Bolted
|
|
|

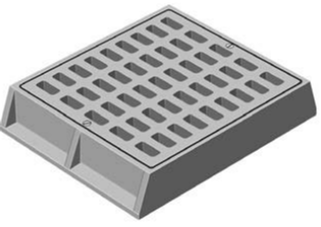

3480-A |
|
Clear Opening Length:
23.9375"
Clear Opening Width:
25"
Frame Height:
5.75"
Frame Flange Length:
32"
Frame Flange Width:
27"
Grate Length:
26.625"
Grate Width:
24.875"
Weir Perimeter (Feet):
8.5
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3480-A
Bolted:
Bolted
|
|
|

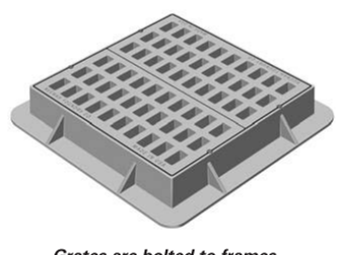

3481 |
|
Clear Opening Length:
34"
Clear Opening Width:
34"
Frame Height:
7"
Frame Flange Length:
45"
Frame Flange Width:
45"
Grate Length:
36"
Grate Width:
36"
Weir Perimeter (Feet):
12
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3481
Bolted:
Bolted
|
|
|

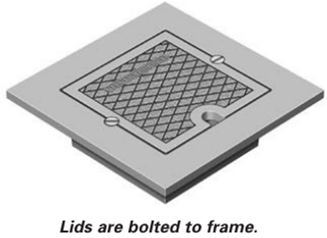

3486 |
|
Clear Opening Length:
6.125"
Clear Opening Width:
6.125"
Seat Depth:
5/8"
Frame Height:
2.5"
Frame Flange Length:
12"
Frame Flange Width:
12"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
3486
Bolted:
Bolted
Cover Length:
7.75"
Cover Width:
7.75"
Open Pick:
Open Pick
|
|
|
3490 |
|
Catalog Number:
3490
Moring Eye Height:
3 1/2"
|
|
|
3490-A |
|
|
|
|
|

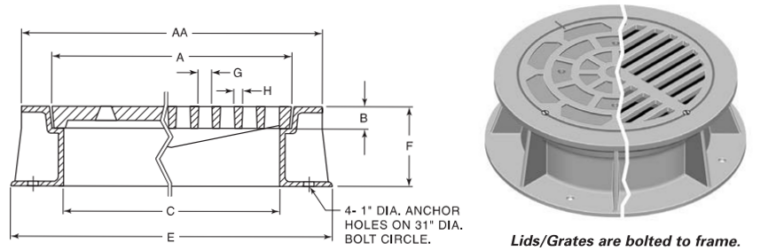

3492 |
|
Frame Height:
9"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Down, Flange Up
Catalog Number:
3492
Clear Opening Diameter:
24"
Cover Diameter:
27"
Frame Flange Diameter:
33.5"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
3492-A |
|
Seat Depth:
2"
Frame Height:
9"
Highest Load Rating:
FAA
Material:
Ductile Iron
Frame Type:
Flange Down, Flange Up
Catalog Number:
3492-A
Clear Opening Diameter:
30"
Cover Diameter:
32.375"
Frame Flange Diameter:
42"
Bolted:
Bolted
|
|
|
3492-A1 |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
8.5
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Grate Type:
G
Catalog Number:
3492-A1
Clear Opening Diameter:
30"
Frame Flange Diameter:
42"
Grate Diameter:
32.375"
Bolted:
Bolted
|
|
|

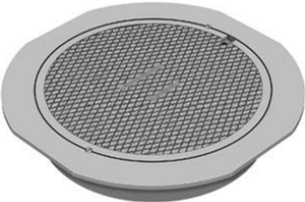

3492-B |
|
Frame Height:
4.5"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3492-B
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
|
|
|

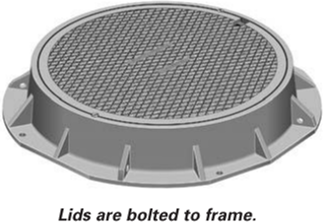

3492-C |
|
Frame Height:
10"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3492-C
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
|
|
|

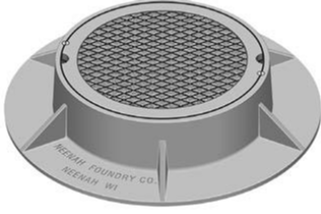

3493-A |
|
Frame Height:
8.5625"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3493-A
Clear Opening Diameter:
21"
Cover Diameter:
23.625"
Frame Flange Diameter:
37.5"
Bolted:
Bolted
|
|
|
3495 |
|
Material:
Ductile Iron
Catalog Number:
3495
|
|
|
3498-J3S |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
24"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
37 1/2"
Lid Width:
25 1/2"
Frame Opening Length:
37 7/8"
Frame Opening Width:
25 7/8"
Frame Flange Length:
42"
Frame Flange Width:
30"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Rectangle
Catalog Number:
3498-J3S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-K2S |
PDF
|
Clear Opening Length:
24"
Clear Opening Width:
24"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
25 3/4"
Lid Width:
25 3/4"
Frame Opening Length:
26"
Frame Opening Width:
26"
Frame Flange Length:
30"
Frame Flange Width:
30"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-K2S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-P2S |
PDF
|
Clear Opening Length:
30"
Clear Opening Width:
30"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
31 1/2"
Lid Width:
31 1/2"
Frame Opening Length:
32"
Frame Opening Width:
32"
Frame Flange Length:
36"
Frame Flange Width:
36"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-P2S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-R2GS |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
36"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
38 3/8"
Frame Opening Width:
38 3/8"
Frame Flange Length:
42"
Frame Flange Width:
42"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-R2GS
Hinged:
Hinged
Spring Assist:
Spring Assist
|
