1254 |
|
Seat Depth:
3/4"
Frame Height:
3 1/2"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1254
Clear Opening Diameter:
22 7/16"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
|
 |
1255 |
PDF
|
Seat Depth:
1/2"
Frame Height:
4 1/2"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1255
Clear Opening Diameter:
22 5/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
25"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
1256 |
PDF
|
Seat Depth:
1 5/8"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1256
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1258 |
PDF
|
Seat Depth:
1"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1258
Clear Opening Diameter:
22"
Cover Diameter:
24"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1259 |
PDF
|
Seat Depth:
3/4"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1259
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
126 |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
126
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
36 1/2"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1260 |
PDF
|
Seat Depth:
7/8"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1260
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1261 |
PDF
|
Seat Depth:
7/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1261
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |

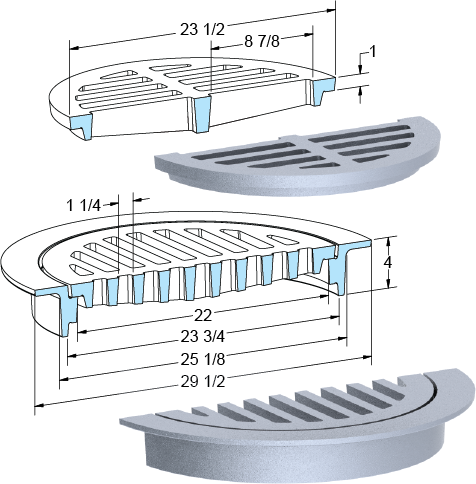

1261-5685 |
|
Seat Depth:
1"
Frame Height:
4"
Weir Perimeter (Feet):
6.1
Open Area (Sq Ft):
1"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1261-5685
Clear Opening Diameter:
22"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25.125"
Grate Diameter:
23 1/2"
|
 |
1262 |
|
Seat Depth:
1 1/4"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1262
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
24 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

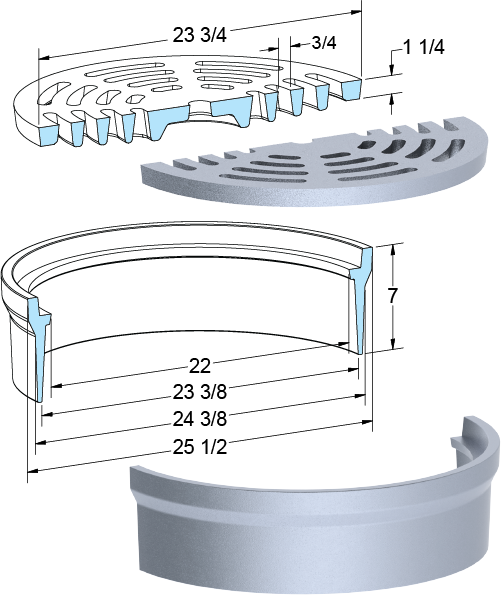

1262-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
7"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1262-5645
Clear Opening Diameter:
22"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
23 3/8"
Grate Diameter:
23 3/4"
|
 |
1263 |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1263
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
32"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1264 |
PDF
|
Seat Depth:
1 5/16"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1264
Clear Opening Diameter:
22 1/2"
Cover Diameter:
24"
Frame Flange Diameter:
30 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1265 |
PDF
|
Seat Depth:
1"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1265
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

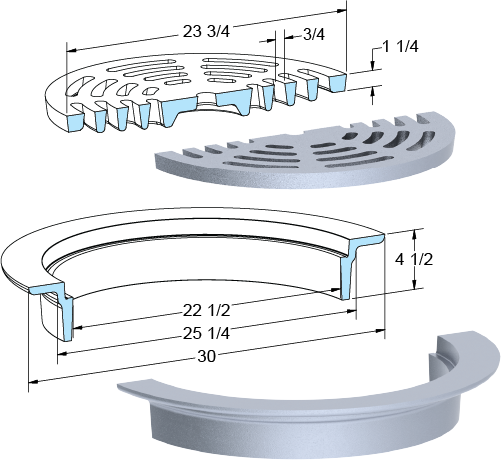

1265-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
4 1/2"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1265-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 1/4"
Grate Diameter:
23 3/4"
|
 |
1266 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1266
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
31 5/8"
Frame Opening Diameter:
24 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

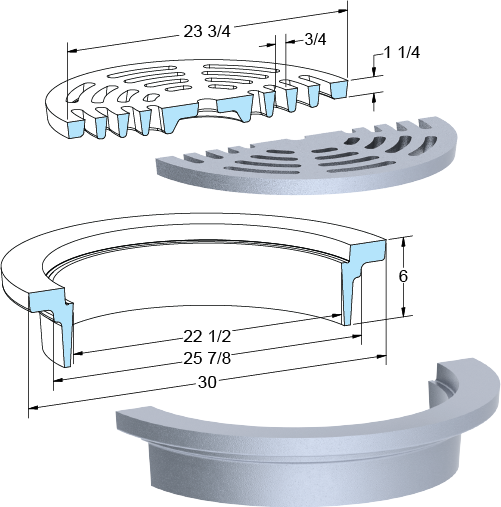

1266-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1266-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 7/8"
Grate Diameter:
23 3/4"
|
 |
1269 |
PDF
|
Seat Depth:
1/2"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1269
Clear Opening Diameter:
22 1/4"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
24"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
127 |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
127
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1270 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1270
Clear Opening Diameter:
22 3/4"
Cover Diameter:
24"
Frame Flange Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1271 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1271
Clear Opening Diameter:
30"
Cover Diameter:
31 1/2"
Frame Flange Diameter:
42"
Frame Opening Diameter:
31 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1272 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1272
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
25 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

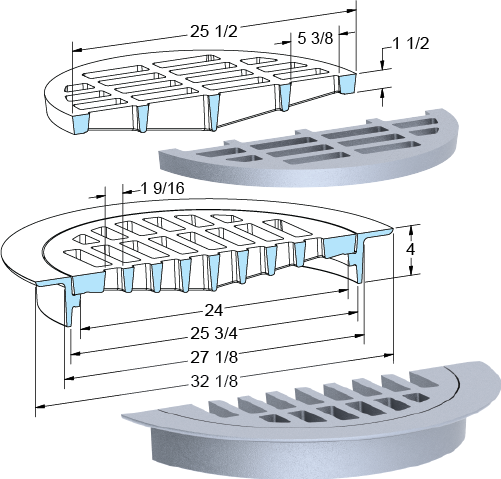

1272-5609 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1272-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
27.125"
Grate Diameter:
25 1/2"
|
 |
1273 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1273
Clear Opening Diameter:
30"
Cover Diameter:
32"
Frame Flange Diameter:
38"
Frame Opening Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
