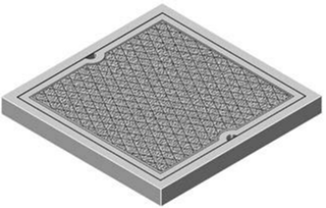

6686-D |
|
Clear Opening Length:
18"
Clear Opening Width:
18"
Seat Depth:
1 1/2"
Frame Height:
5 1/2"
Frame Opening Length:
19 3/4"
Frame Opening Width:
19 3/4"
Frame Flange Length:
25 1/4"
Frame Flange Width:
25 1/4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
6686-D
Cover Length:
22 1/2"
Cover Width:
22 1/2"
Open Pick:
Open Pick
|
 |
669 |
PDF
|
Seat Depth:
1"
Frame Height:
7 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
669
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
669-3 |
|
Seat Depth:
1"
Frame Height:
7 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
669-3
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
669-3-5685 |
|
Seat Depth:
1"
Frame Height:
7 1/2"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
669-3-5685
Clear Opening Diameter:
22"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Grate Diameter:
23 1/2"
|
 |
669-5685 |
|
Seat Depth:
1"
Frame Height:
7 1/2"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
669-5685
Clear Opening Diameter:
22"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25"
Grate Diameter:
23 1/2"
|
 |
671 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
671
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Flange Diameter:
44"
Frame Opening Diameter:
37 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
671-5681 |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Weir Perimeter (Feet):
9.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
671-5681
Clear Opening Diameter:
35"
Frame Flange Diameter:
44"
Frame Opening Diameter:
37.125"
Grate Diameter:
37"
|
|
|
671-AF-M |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
671-AF-M
Clear Opening Diameter:
35 1/8"
Cover Diameter:
37"
Frame Flange Diameter:
44"
Frame Opening Diameter:
35 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
672 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
672
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Opening Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
672-5681 |
|
Seat Depth:
1 3/8"
Frame Height:
5 1/8"
Weir Perimeter (Feet):
9.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
672-5681
Clear Opening Diameter:
35"
Frame Opening Diameter:
35"
Grate Diameter:
37"
|
|
|
672-AF-M |
|
Seat Depth:
1 3/8"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
672-AF-M
Clear Opening Diameter:
35"
Cover Diameter:
37"
Frame Flange Diameter:
45"
Frame Opening Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
673 |
|
Seat Depth:
1 1/4"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
673
Clear Opening Diameter:
33 3/8"
Cover Diameter:
35 3/4"
Frame Opening Diameter:
33 3/8"
|
 |
678 |
PDF
|
Seat Depth:
1"
Frame Height:
7 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
678
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
23 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
678-5685 |
|
Seat Depth:
1"
Frame Height:
7 3/8"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
678-5685
Clear Opening Diameter:
22 1/8"
Frame Flange Diameter:
34"
Frame Opening Diameter:
23 1/2"
Grate Diameter:
23 1/4"
|
 |
679 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679
Clear Opening Diameter:
35 1/2"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
679-BK-M |
|
Seat Depth:
1 1/2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679-BK-M
Clear Opening Diameter:
35 9/16"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
679-QN-M |
|
Seat Depth:
1 1/2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
679-QN-M
Clear Opening Diameter:
35 9/16"
Cover Diameter:
38"
Frame Flange Diameter:
49 3/8"
Frame Opening Diameter:
40 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
682 |
PDF
|
Seat Depth:
1"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
682
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
23 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
682-5685 |
|
Seat Depth:
1"
Frame Height:
6"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
682-5685
Clear Opening Diameter:
22 1/8"
Frame Flange Diameter:
33"
Frame Opening Diameter:
23 1/4"
Grate Diameter:
23 1/4"
|
 |
684 |
PDF
|
Seat Depth:
1"
Frame Height:
3"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
684
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
684-5685 |
|
Seat Depth:
1"
Frame Height:
3"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
684-5685
Clear Opening Diameter:
22 1/8"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Grate Diameter:
23 1/4"
|
 |
686 |
PDF
|
Seat Depth:
1"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
686
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
686-5685 |
|
Seat Depth:
1"
Frame Height:
4"
Weir Perimeter (Feet):
6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
686-5685
Clear Opening Diameter:
22 1/8"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
23 1/8"
Grate Diameter:
23 1/4"
|
|
|
690-AG-M |
|
Seat Depth:
2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
690-AG-M
Clear Opening Diameter:
47 7/8"
Cover Diameter:
50 7/8"
Frame Flange Diameter:
62"
Frame Opening Diameter:
52"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
