1260 |
25 3/4" |
7/8" |
24" |
7" |
PDF
|
Seat Depth:
7/8"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1260
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1261 |
25 3/4" |
7/8" |
24" |
8" |
PDF
|
Seat Depth:
7/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1261
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |

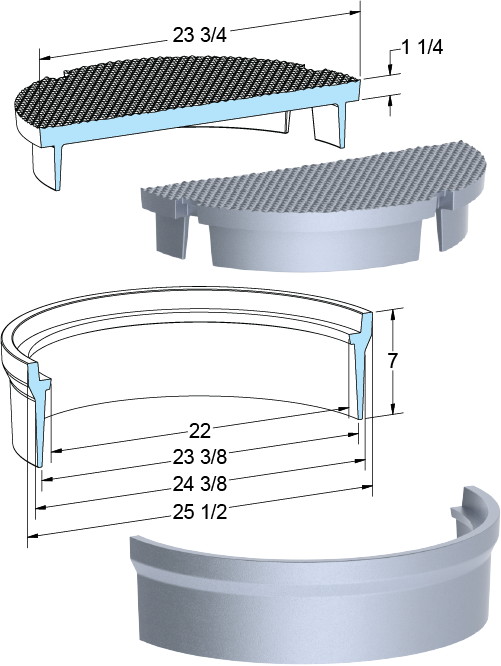

1262 |
23 3/4" |
1 1/4" |
22" |
7" |
|
Seat Depth:
1 1/4"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1262
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
24 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1263 |
23 3/4" |
2 1/2" |
22" |
5" |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1263
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
32"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1264 |
24" |
1 5/16" |
22 1/2" |
5" |
PDF
|
Seat Depth:
1 5/16"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1264
Clear Opening Diameter:
22 1/2"
Cover Diameter:
24"
Frame Flange Diameter:
30 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1265 |
23 1/4" |
1" |
21 7/8" |
8" |
PDF
|
Seat Depth:
1"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1265
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1266 |
23 3/4" |
1 1/2" |
22" |
6" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1266
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
31 5/8"
Frame Opening Diameter:
24 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

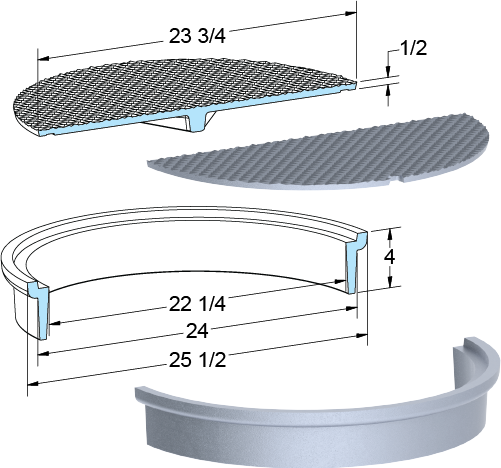

1269 |
23 3/4" |
1/2" |
22 1/4" |
4" |
PDF
|
Seat Depth:
1/2"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1269
Clear Opening Diameter:
22 1/4"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
25 1/2"
Frame Opening Diameter:
24"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

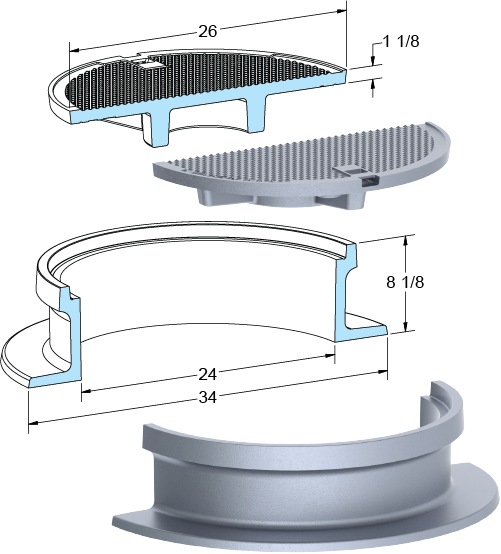

127 |
26" |
1 1/8" |
24" |
8 1/8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
127
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1270 |
24" |
1 1/2" |
22 3/4" |
7 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1270
Clear Opening Diameter:
22 3/4"
Cover Diameter:
24"
Frame Flange Diameter:
35"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

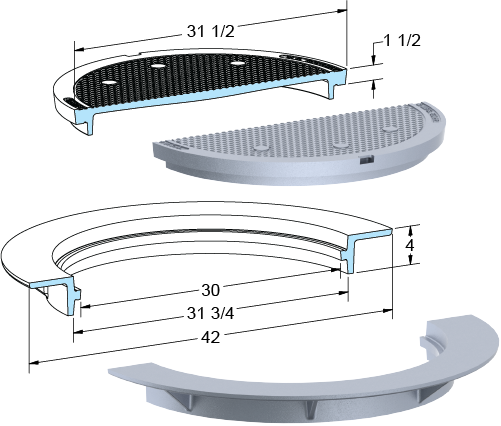

1271 |
31 1/2" |
1 1/2" |
30" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1271
Clear Opening Diameter:
30"
Cover Diameter:
31 1/2"
Frame Flange Diameter:
42"
Frame Opening Diameter:
31 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

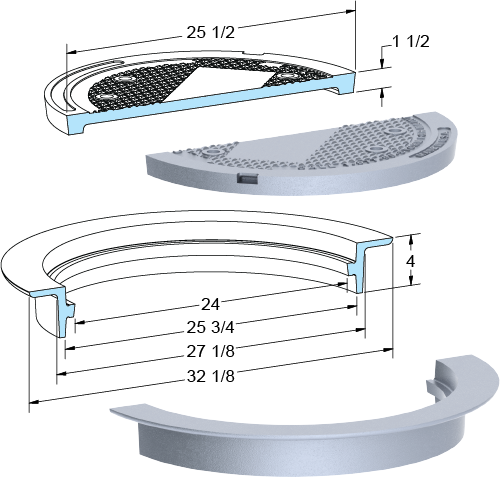

1272 |
25 1/2" |
1 1/2" |
24" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1272
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
25 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

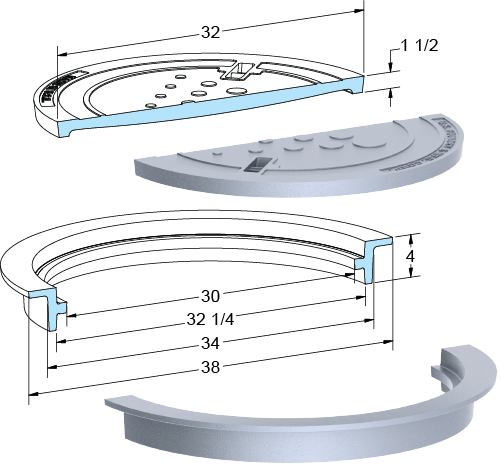

1273 |
32" |
1 1/2" |
30" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1273
Clear Opening Diameter:
30"
Cover Diameter:
32"
Frame Flange Diameter:
38"
Frame Opening Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1274 |
31 7/8" |
1 1/2" |
30" |
4 7/8" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4 7/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1274
Clear Opening Diameter:
30"
Cover Diameter:
31 7/8"
Frame Flange Diameter:
32 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1275 |
23 5/8" |
1 1/4" |
21" |
7 1/8" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
7 1/8"
Highest Load Rating:
Contact NEI, H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Frame Type:
Flange Down
Grate Type:
G
Catalog Number:
1275
Clear Opening Diameter:
21"
Cover Diameter:
23 5/8"
Frame Flange Diameter:
37 1/2"
Frame Opening Diameter:
23 7/8"
Grate Diameter:
23 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1275-M |
23 5/8" |
1 9/16" |
21 3/8" |
7 1/8" |
PDF
|
Seat Depth:
1 9/16"
Frame Height:
7 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1275-M
Clear Opening Diameter:
21 3/8"
Cover Diameter:
23 5/8"
Frame Flange Diameter:
37 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
128 |
25 1/2" |
1" |
24" |
8" |
PDF
|
Seat Depth:
1"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
128
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
36"
Frame Opening Diameter:
26 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

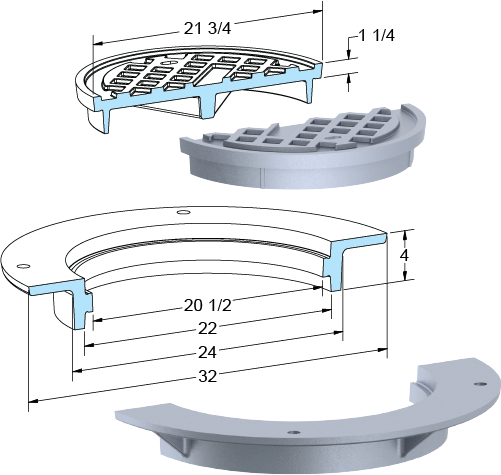

1284 |
21 3/4" |
1 1/4" |
20 1/2" |
- |
|
Seat Depth:
1 1/4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1284
Clear Opening Diameter:
20 1/2"
Cover Diameter:
21 3/4"
Frame Flange Diameter:
4"
Frame Opening Diameter:
32"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1290 |
24" |
1 1/2" |
22 1/8" |
4 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1290
Clear Opening Diameter:
22 1/8"
Cover Diameter:
24"
Frame Flange Diameter:
32"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

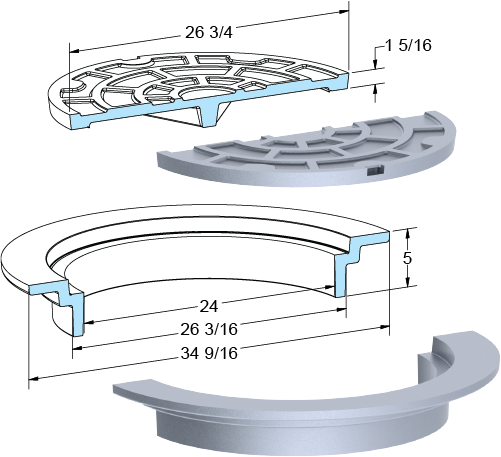

1292 |
26 3/4" |
1 5/16" |
24" |
5" |
PDF
|
Seat Depth:
1 5/16"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1292
Clear Opening Diameter:
24"
Cover Diameter:
26 3/4"
Frame Flange Diameter:
34 9/16"
Frame Opening Diameter:
26 3/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1295 |
26 1/8" |
1 3/16" |
24 1/8" |
6" |
PDF
|
Seat Depth:
1 3/16"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1295
Clear Opening Diameter:
24 1/8"
Cover Diameter:
26 1/8"
Frame Flange Diameter:
33 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1296 |
31 1/2" |
1 1/2" |
30" |
5 1/4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
5 1/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1296
Clear Opening Diameter:
30"
Cover Diameter:
31 1/2"
Frame Flange Diameter:
38"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1296-R |
31 1/2" |
1 1/2" |
29 5/8" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1296-R
Clear Opening Diameter:
29 5/8"
Cover Diameter:
31 1/2"
Frame Flange Diameter:
37 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1300 |
24 1/16" |
1 1/2" |
22 9/16" |
10" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1300
Clear Opening Diameter:
22 9/16"
Cover Diameter:
24 1/16"
Frame Flange Diameter:
34 1/16"
Frame Opening Diameter:
22 9/16"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
