3480-A |
|
Clear Opening Length:
23.9375"
Clear Opening Width:
25"
Frame Height:
5.75"
Frame Flange Length:
32"
Frame Flange Width:
27"
Grate Length:
26.625"
Grate Width:
24.875"
Weir Perimeter (Feet):
8.5
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3480-A
Bolted:
Bolted
|
|
|
3481 |
|
Clear Opening Length:
34"
Clear Opening Width:
34"
Frame Height:
7"
Frame Flange Length:
45"
Frame Flange Width:
45"
Grate Length:
36"
Grate Width:
36"
Weir Perimeter (Feet):
12
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3481
Bolted:
Bolted
|
|
|
3486 |
|
Clear Opening Length:
6.125"
Clear Opening Width:
6.125"
Seat Depth:
5/8"
Frame Height:
2.5"
Frame Flange Length:
12"
Frame Flange Width:
12"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Frame Type:
Flange Up
Catalog Number:
3486
Bolted:
Bolted
Cover Length:
7.75"
Cover Width:
7.75"
Open Pick:
Open Pick
|
|
|
3487 |
PDF
|
Seat Depth:
1"
Frame Height:
6 1/2"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3487
Clear Opening Diameter:
7"
Cover Diameter:
9"
Frame Flange Diameter:
16"
Frame Opening Diameter:
10"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
349-350 |
|
Seat Depth:
1 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
349-350
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

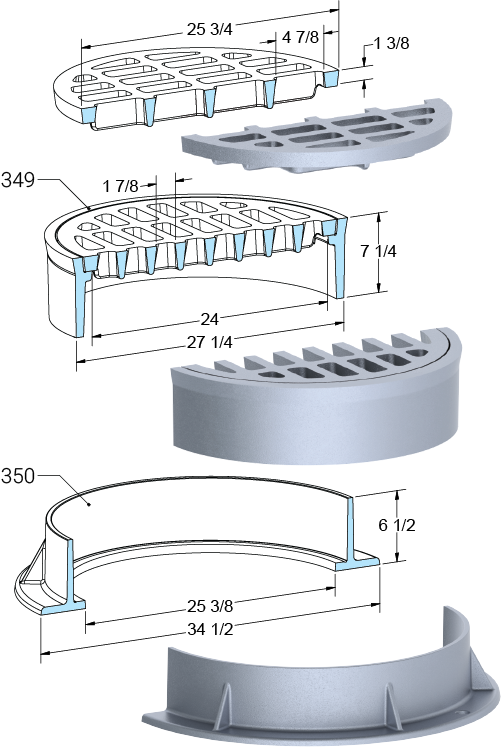

349-350-5618 |
|
Seat Depth:
1 3/8"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
349-350-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
25.375"
Grate Diameter:
25 3/4"
|
|
|
3490 |
|
Catalog Number:
3490
Moring Eye Height:
3 1/2"
|
|
|
3490-A |
|
|
|
|
|
3491-HL |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
6"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3491-HL
Clear Opening Diameter:
25 1/2"
Cover Diameter:
29"
Frame Flange Diameter:
35"
Frame Opening Diameter:
29"
Bolted:
Bolted
Open Pick:
Open Pick
|
|
|
3491-JL |
PDF
|
Seat Depth:
2"
Frame Height:
6"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3491-JL
Clear Opening Diameter:
30"
Cover Diameter:
32 3/8"
Frame Flange Diameter:
39 1/2"
Frame Opening Diameter:
33 9/16"
Bolted:
Bolted
Open Pick:
Open Pick
|
|
|
3492 |
|
Frame Height:
9"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Down, Flange Up
Catalog Number:
3492
Clear Opening Diameter:
24"
Cover Diameter:
27"
Frame Flange Diameter:
33.5"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
3492-A |
|
Seat Depth:
2"
Frame Height:
9"
Highest Load Rating:
FAA
Material:
Ductile Iron
Frame Type:
Flange Down, Flange Up
Catalog Number:
3492-A
Clear Opening Diameter:
30"
Cover Diameter:
32.375"
Frame Flange Diameter:
42"
Bolted:
Bolted
|
|
|
3492-A1 |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
8.5
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Grate Type:
G
Catalog Number:
3492-A1
Clear Opening Diameter:
30"
Frame Flange Diameter:
42"
Grate Diameter:
32.375"
Bolted:
Bolted
|
|
|
3492-B |
|
Frame Height:
4.5"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3492-B
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
|
|
|
3492-C |
|
Frame Height:
10"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3492-C
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
|
|
|
3493-A |
|
Frame Height:
8.5625"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3493-A
Clear Opening Diameter:
21"
Cover Diameter:
23.625"
Frame Flange Diameter:
37.5"
Bolted:
Bolted
|
|
|
3495 |
|
Material:
Ductile Iron
Catalog Number:
3495
|
|
|
3498-J3S |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
24"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
37 1/2"
Lid Width:
25 1/2"
Frame Opening Length:
37 7/8"
Frame Opening Width:
25 7/8"
Frame Flange Length:
42"
Frame Flange Width:
30"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Rectangle
Catalog Number:
3498-J3S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-K2S |
PDF
|
Clear Opening Length:
24"
Clear Opening Width:
24"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
25 3/4"
Lid Width:
25 3/4"
Frame Opening Length:
26"
Frame Opening Width:
26"
Frame Flange Length:
30"
Frame Flange Width:
30"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-K2S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-P2S |
PDF
|
Clear Opening Length:
30"
Clear Opening Width:
30"
Seat Depth:
1 1/2"
Frame Height:
4"
Lid Length:
31 1/2"
Lid Width:
31 1/2"
Frame Opening Length:
32"
Frame Opening Width:
32"
Frame Flange Length:
36"
Frame Flange Width:
36"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-P2S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-R2GS |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
36"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
38 3/8"
Frame Opening Width:
38 3/8"
Frame Flange Length:
42"
Frame Flange Width:
42"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-R2GS
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-R2S |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
36"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
38 3/8"
Frame Opening Width:
38 3/8"
Frame Flange Length:
42"
Frame Flange Width:
42"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-R2S
Bolted:
Bolted
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-R2SP |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
36"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
38 3/8"
Frame Opening Width:
38 3/8"
Frame Flange Length:
42"
Frame Flange Width:
42"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-R2SP
Hinged:
Hinged
Spring Assist:
Spring Assist
|
|
|
3498-R3S |
PDF
|
Clear Opening Length:
74 3/16"
Clear Opening Width:
36"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
76 9/16"
Frame Opening Width:
38 3/8"
Frame Flange Length:
80 3/16"
Frame Flange Width:
42"
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square
Catalog Number:
3498-R3S
Bolted:
Bolted
Hinged:
Hinged
|
