777 |
26" |
1 3/8" |
24" |
4" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
777
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Frame Opening Diameter:
28"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
780 |
23 3/4" |
1 1/4" |
22 1/2" |
- |
PDF
|
Seat Depth:
1 1/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
780
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
39 1/2"
Frame Opening Diameter:
33"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
783 |
21 3/4" |
1 1/4" |
20 1/4" |
8" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
783
Clear Opening Diameter:
20 1/4"
Cover Diameter:
21 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24 1/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
784 |
21 3/4" |
1 1/4" |
20 1/2" |
4" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
784
Clear Opening Diameter:
20 1/2"
Cover Diameter:
21 3/4"
Frame Flange Diameter:
32"
Frame Opening Diameter:
22"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
9008 |
35 1/2" |
1 1/4" |
33 11/16" |
10" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
9008
Clear Opening Diameter:
33 11/16"
Cover Diameter:
35 1/2"
Frame Flange Diameter:
47 1/2"
Open Pick:
Open Pick
|
|
|
9020 |
25 1/2" |
1" |
24" |
5 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
5 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
9020
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
34 1/2"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

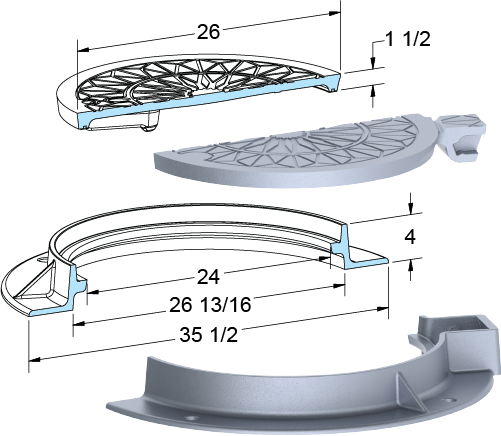

924 |
26" |
1 1/2" |
24" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
924
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
26 13/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
9252 |
24" |
1 1/2" |
22" |
4 1/8" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
9252
Clear Opening Diameter:
22"
Cover Diameter:
24"
Frame Flange Diameter:
31"
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

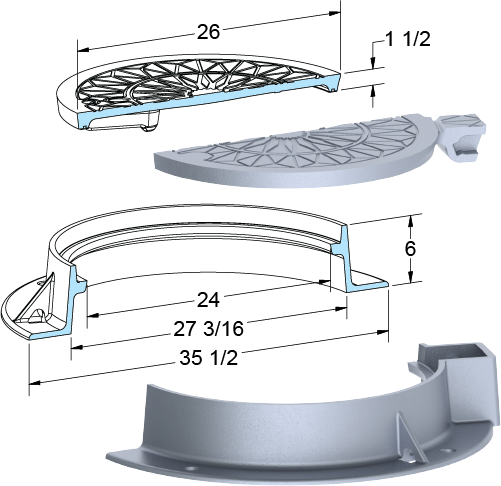

926 |
26" |
1 1/2" |
24" |
6" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
926
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
930 |
32" |
2 1/2" |
30" |
9" |
|
Seat Depth:
2 1/2"
Frame Height:
9"
Material:
Gray Iron
Catalog Number:
930
Clear Opening Diameter:
30"
Cover Diameter:
32"
Frame Flange Diameter:
40"
Frame Opening Diameter:
9"
|
|
|
TYPE B |
24" |
1 1/2" |
21 39/50" |
- |
PDF
|
Seat Depth:
1 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
TYPE B
Clear Opening Diameter:
21 39/50"
Cover Diameter:
24"
Frame Flange Diameter:
31"
Frame Opening Diameter:
23 3/4"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1110 |
22 1/4" |
1 1/2" |
20 1/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
USF 1110
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
23 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1155 |
22 3/4" |
2" |
21" |
8" |
|
Seat Depth:
2"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1155
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1161 |
25 1/2" |
1 5/8" |
24" |
2 3/8" |
|
Seat Depth:
1 5/8"
Frame Height:
2 3/8"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Catalog Number:
USF 1161
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
29 3/4"
Frame Opening Diameter:
27"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
USF 1215 |
26 3/4" |
3/4" |
24" |
1 3/8" |
|
Seat Depth:
3/4"
Frame Height:
1 3/8"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
USF 1215
Clear Opening Diameter:
24"
Cover Diameter:
26 3/4"
Frame Flange Diameter:
28 3/4"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1258 |
23 3/4" |
3/4" |
22 1/2" |
4" |
|
Seat Depth:
3/4"
Frame Height:
4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1258
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
Open Pick:
Open Pick
|
|
|
USF 1260 |
23 3/4" |
1/2" |
22 1/2" |
6" |
|
Seat Depth:
1/2"
Frame Height:
6"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1260
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
33"
Frame Opening Diameter:
25"
Bolted:
Bolted
Open Pick:
Open Pick
|
|
|
USF 1261 |
23 1/2" |
1" |
22" |
4" |
|
Seat Depth:
1"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
USF 1261
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1263 |
24 7/16" |
2" |
22" |
6" |
|
Seat Depth:
2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1263
Clear Opening Diameter:
22"
Cover Diameter:
24 7/16"
Frame Flange Diameter:
28 3/16"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1265 |
23 3/4" |
1 1/4" |
22 1/2" |
4 1/2" |
|
Seat Depth:
1 1/4"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1265
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1266 |
23 1/2" |
1 1/4" |
22 1/2" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1266
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1270 |
22" |
1 1/2" |
20" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
USF 1270
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
32"
Frame Opening Diameter:
23 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1274 |
23 1/2" |
1 1/2" |
22" |
6" |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1274
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
USF 1275 |
31 7/8" |
1 1/2" |
30" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
USF 1275
Clear Opening Diameter:
30"
Cover Diameter:
31 7/8"
Frame Flange Diameter:
40 3/4"
Frame Opening Diameter:
34 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
