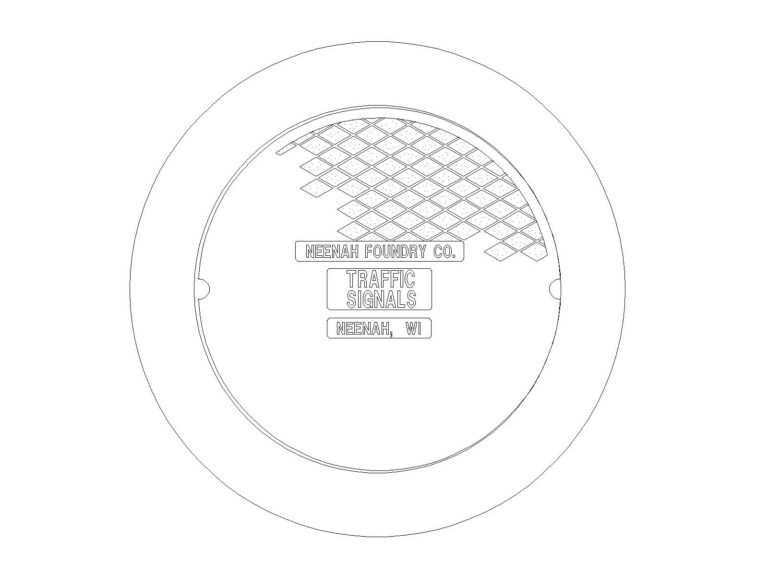

5915-E |
22" |
1 1/2" |
20 1/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
5915-E
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22"
Frame Flange Diameter:
30"
Frame Opening Diameter:
22 1/4"
Open Pick:
Open Pick
|
 |
5915-G |
28 1/4" |
1 1/2" |
26 3/8" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
5915-G
Clear Opening Diameter:
26 3/8"
Cover Diameter:
28 1/4"
Frame Flange Diameter:
37"
Frame Opening Diameter:
28 1/2"
Open Pick:
Open Pick
|
 |

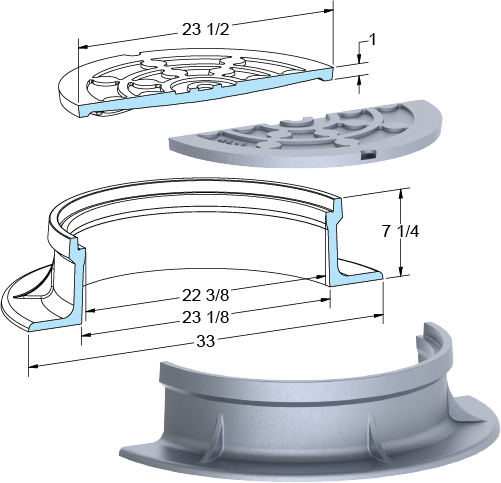

600 |
23 1/2" |
1" |
22 3/8" |
7 1/4" |
|
Seat Depth:
1"
Frame Height:
7 1/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
600
Clear Opening Diameter:
22 3/8"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
33"
Frame Opening Diameter:
23 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

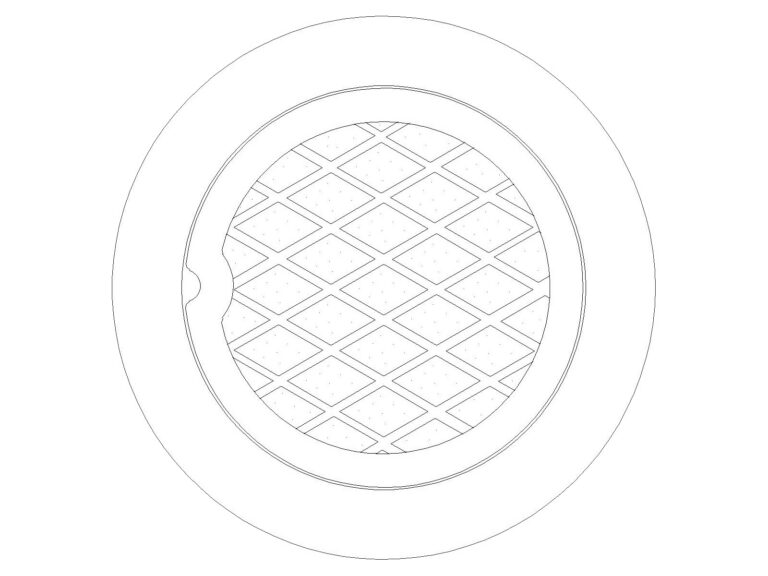

6003 |
9" |
1" |
8" |
2 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
2 1/2"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6003
Clear Opening Diameter:
8"
Cover Diameter:
9"
Frame Flange Diameter:
12 1/4"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

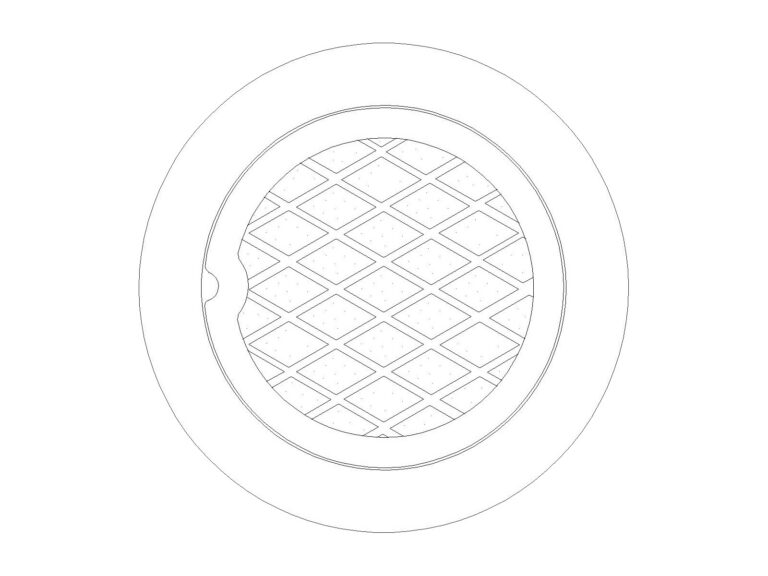

6014 |
9" |
1" |
8" |
2 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
2 1/2"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6014
Clear Opening Diameter:
8"
Cover Diameter:
9"
Frame Flange Diameter:
12 1/4"
Bolted:
Bolted
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

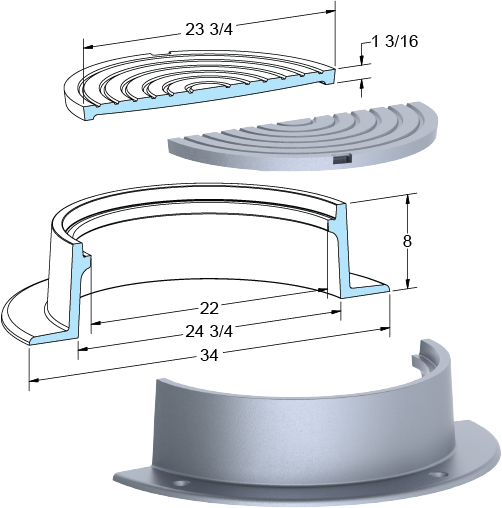

604 |
23 3/4" |
1 3/16" |
22" |
8" |
PDF
|
Seat Depth:
1 3/16"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
604
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
6040 |
24" |
3/4" |
22" |
3 1/2" |
PDF
|
Seat Depth:
3/4"
Frame Height:
3 1/2"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6040
Clear Opening Diameter:
22"
Cover Diameter:
24"
Frame Flange Diameter:
30"
Frame Opening Diameter:
23"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |
605 |
24" |
1 1/4" |
22" |
7 1/4" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
7 1/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
605
Clear Opening Diameter:
22"
Cover Diameter:
24"
Frame Flange Diameter:
35"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
6095 |
38" |
1 1/2" |
36" |
4 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6095
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
49"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

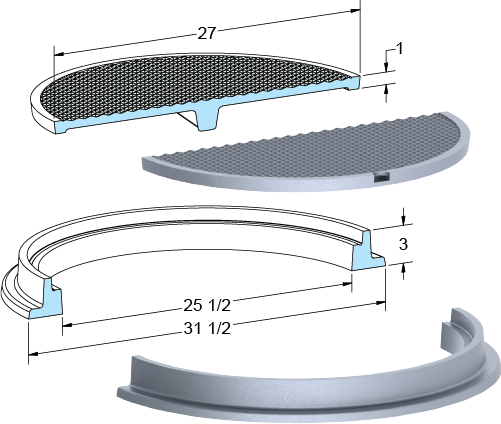

610 |
27" |
1" |
25 1/2" |
3" |
PDF
|
Seat Depth:
1"
Frame Height:
3"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
610
Clear Opening Diameter:
25 1/2"
Cover Diameter:
27"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
25 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
6150 |
23 1/32" |
7/8" |
20 31/32" |
3 15/16" |
PDF
|
Seat Depth:
7/8"
Frame Height:
3 15/16"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6150
Clear Opening Diameter:
20 31/32"
Cover Diameter:
23 1/32"
Frame Flange Diameter:
27 15/16"
Open Pick:
Open Pick
|
 |
630 |
23 3/4" |
1 1/4" |
22 1/2" |
6" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
630
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

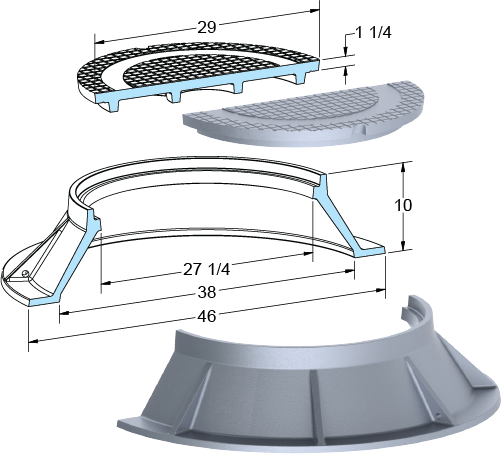

639 |
29" |
1 1/4" |
27 1/4" |
10" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
639
Clear Opening Diameter:
27 1/4"
Cover Diameter:
29"
Frame Flange Diameter:
46"
Frame Opening Diameter:
38"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

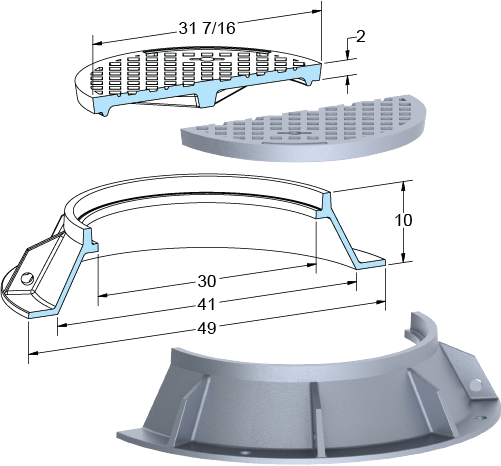

640 |
31 7/16" |
2" |
30" |
10" |
PDF
|
Seat Depth:
2"
Frame Height:
10"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
640
Clear Opening Diameter:
30"
Cover Diameter:
31 7/16"
Frame Flange Diameter:
49"
Frame Opening Diameter:
41"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

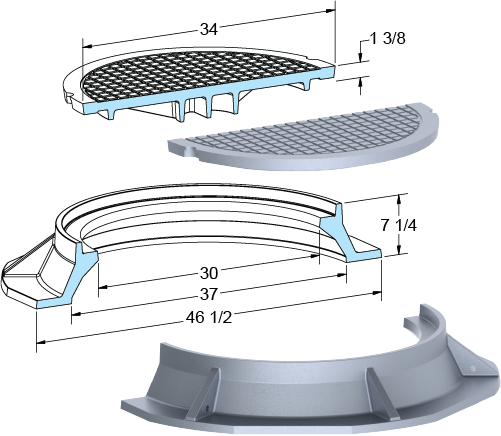

642 |
34" |
1 3/8" |
30" |
7 1/4" |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
7 1/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
642
Clear Opening Diameter:
30"
Cover Diameter:
34"
Frame Flange Diameter:
48 1/2"
Frame Opening Diameter:
37"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

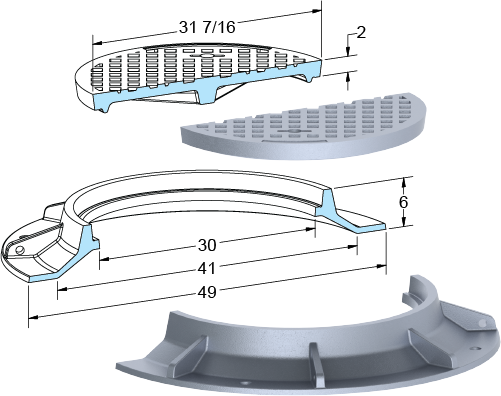

645 |
31 7/16" |
2" |
30" |
6" |
PDF
|
Seat Depth:
2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
645
Clear Opening Diameter:
30"
Cover Diameter:
31 7/16"
Frame Flange Diameter:
49"
Frame Opening Diameter:
41"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

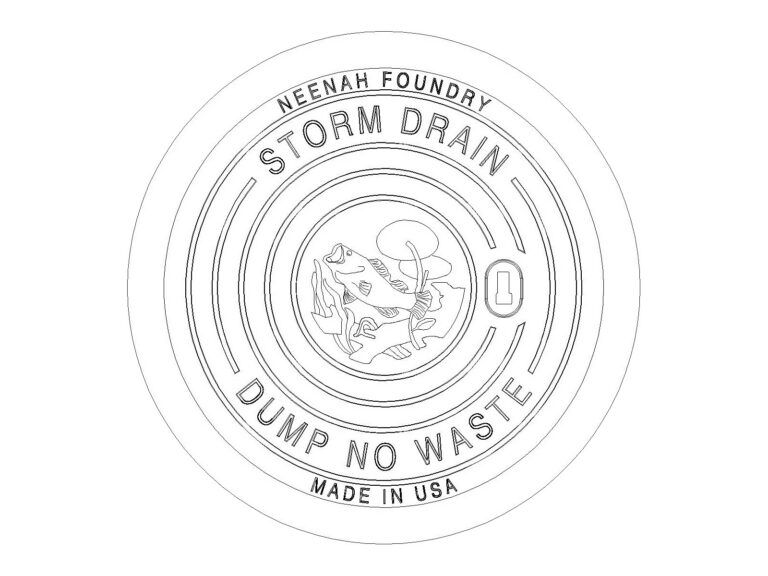

6452 |
18 7/8" |
7/8" |
16 1/2" |
3 13/16" |
PDF
|
Seat Depth:
7/8"
Frame Height:
3 13/16"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6452
Clear Opening Diameter:
16 1/2"
Cover Diameter:
18 7/8"
Frame Flange Diameter:
22"
|
|
|
6453 |
19" |
7/16" |
17 3/4" |
2 1/2" |
PDF
|
Seat Depth:
7/16"
Frame Height:
2 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6453
Clear Opening Diameter:
17 3/4"
Cover Diameter:
19"
Frame Flange Diameter:
23"
|
|
|
6454 |
23 3/8" |
3/4" |
20 1/2" |
4" |
PDF
|
Seat Depth:
3/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
6454
Clear Opening Diameter:
20 1/2"
Cover Diameter:
23 3/8"
Frame Flange Diameter:
26 3/8"
|
 |

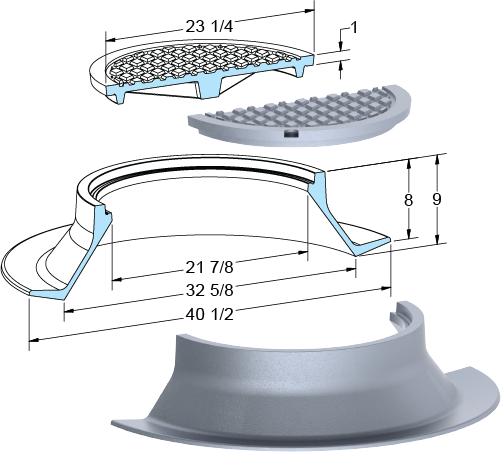

646 |
23 1/4" |
1" |
22" |
9" |
PDF
|
Seat Depth:
1"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
646
Clear Opening Diameter:
22"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
32 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

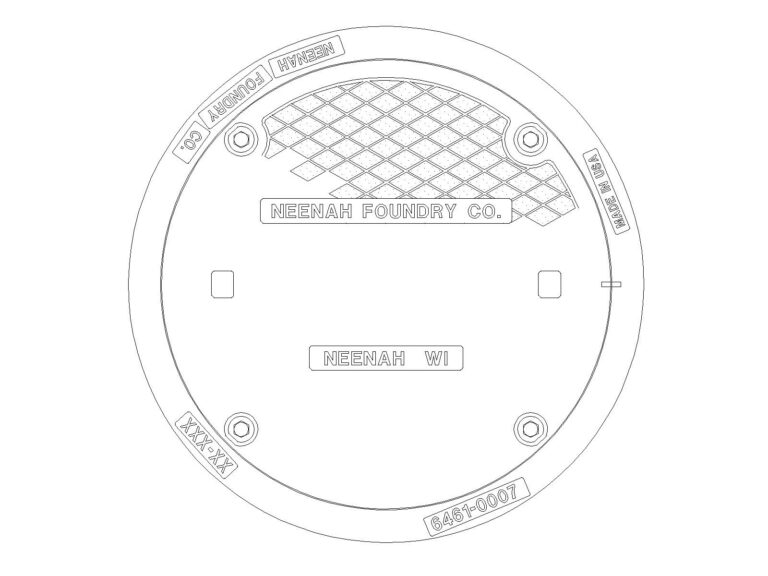

6461-FH |
25 1/4" |
1 1/2" |
23 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
6461-FH
Clear Opening Diameter:
23 1/2"
Cover Diameter:
25 1/4"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

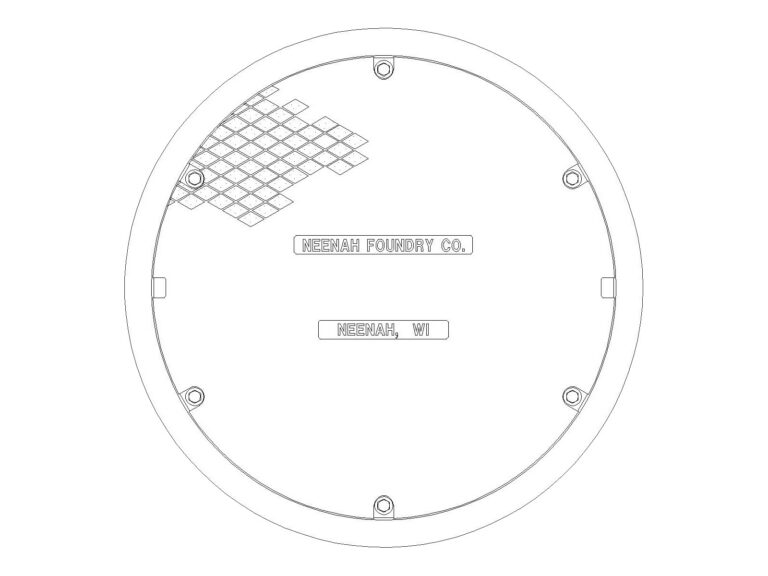

6461-HH |
34 1/4" |
1 1/2" |
30 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
6461-HH
Clear Opening Diameter:
30 1/2"
Cover Diameter:
34 1/4"
Frame Flange Diameter:
38 1/2"
Frame Opening Diameter:
34 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
6461-JH |
40" |
1 1/2" |
36 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
6461-JH
Clear Opening Diameter:
36 1/2"
Cover Diameter:
40"
Frame Flange Diameter:
44 1/2"
Frame Opening Diameter:
40 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

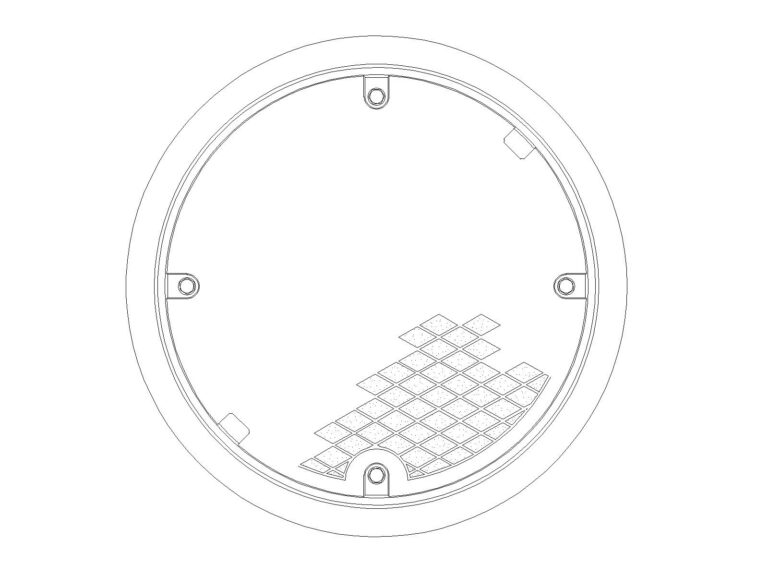

6462-EH |
22 1/2" |
1 1/2" |
18 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
6462-EH
Clear Opening Diameter:
18 1/2"
Cover Diameter:
22 1/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
