4871 |
27 1/2" |
27 1/2" |
- |
1 7/16" |
|
Clear Opening Length:
25 5/8"
Clear Opening Width:
25 5/8"
Seat Depth:
1"
Frame Height:
1 7/16"
Frame Opening Length:
25 5/8"
Frame Opening Width:
25 5/8"
Frame Flange Length:
29"
Frame Flange Width:
29"
Grate Length:
27 1/2"
Grate Width:
27 1/2"
Weir Perimeter (Feet):
9.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4871
|
|
|
4880-C |
30" |
30" |
- |
2 1/8" |
PDF
|
Clear Opening Length:
27 3/4"
Clear Opening Width:
27 3/4"
Seat Depth:
1 1/2"
Frame Height:
2 1/8"
Frame Opening Length:
27 3/4"
Frame Opening Width:
27 3/4"
Frame Flange Length:
31 3/4"
Frame Flange Width:
31 3/4"
Grate Length:
30"
Grate Width:
30"
Weir Perimeter (Feet):
10
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4880-C
Bolted:
Bolted
|
|
|
4882 |
34" |
34" |
- |
2 1/2" |
|
Clear Opening Length:
31 3/4"
Clear Opening Width:
31 3/4"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
31 3/4"
Frame Opening Width:
31 3/4"
Frame Flange Length:
35 3/8"
Frame Flange Width:
35 3/8"
Grate Length:
34"
Grate Width:
34"
Weir Perimeter (Feet):
11.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4882
|
|
|
4884-A |
36" |
18" |
- |
2 1/4" |
PDF
|
Clear Opening Length:
34"
Clear Opening Width:
34"
Seat Depth:
1 3/4"
Frame Height:
2 1/4"
Frame Opening Length:
34"
Frame Opening Width:
34"
Frame Flange Length:
37 1/2"
Frame Flange Width:
37 1/2"
Grate Length:
36"
Grate Width:
18"
Weir Perimeter (Feet):
6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4884-A
|
|
|

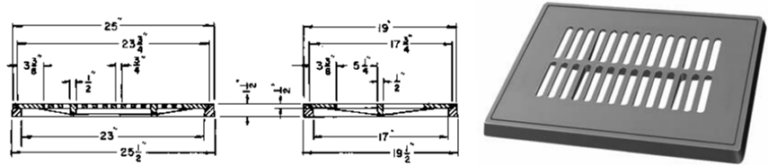

4938 |
23 3/4" |
17 3/4" |
- |
1 1/2" |
PDF
|
Clear Opening Length:
23"
Clear Opening Width:
17"
Seat Depth:
1/2"
Frame Height:
1 1/2"
Frame Opening Length:
23"
Frame Opening Width:
17"
Frame Flange Length:
25 1/2"
Frame Flange Width:
19 1/2"
Grate Length:
23 3/4"
Grate Width:
17 3/4"
Weir Perimeter (Feet):
6.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
4938
|
 |
525-5640 |
- |
- |
20 1/4" |
9" |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
525-5640
Clear Opening Diameter:
20 1/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24"
Grate Diameter:
22 3/4"
|
 |
540-5640 |
- |
- |
21 1/8" |
- |
|
Seat Depth:
2"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
540-5640
Clear Opening Diameter:
21 1/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
23 1/2"
Grate Diameter:
22 3/4"
|
 |
571-5682 |
- |
- |
22" |
4" |
|
Seat Depth:
1"
Frame Height:
4"
Weir Perimeter (Feet):
6.1
Open Area (Sq Ft):
1"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
571-5682
Clear Opening Diameter:
22"
Frame Flange Diameter:
31"
Frame Opening Diameter:
23.75"
Grate Diameter:
23 1/2"
|
 |
573-5645 |
- |
- |
22 1/4" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
573-5645
Clear Opening Diameter:
22 1/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Grate Diameter:
23 3/4"
|
 |
580-5645 |
- |
- |
22 5/16" |
2 1/2" |
|
Seat Depth:
1 1/4"
Frame Height:
2 1/2"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
580-5645
Clear Opening Diameter:
22 5/16"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
24 9/16"
Grate Diameter:
23 3/4"
|
|
|
5901-C |
- |
- |
14.5" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
4.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
5901-C
Clear Opening Diameter:
14.5"
Frame Flange Diameter:
20.5"
Frame Opening Diameter:
17.875"
Grate Diameter:
16.25"
Bolted:
Bolted
|
|
|
5901-E |
- |
- |
20.625" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
5901-E
Clear Opening Diameter:
20.625"
Frame Flange Diameter:
26.5"
Frame Opening Diameter:
23.125"
Grate Diameter:
22.25"
Bolted:
Bolted
|
|
|
5901-F |
- |
- |
23 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
5901-F
Clear Opening Diameter:
23 1/2"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
26 1/2"
Grate Diameter:
25 1/4"
Bolted:
Bolted
|
|
|
5901-G |
- |
- |
26.375" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
7.4
Open Area (Sq Ft):
2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
5901-G
Clear Opening Diameter:
26.375"
Frame Flange Diameter:
32.5"
Frame Opening Diameter:
30"
Grate Diameter:
28.25"
Bolted:
Bolted
|
|
|
5901-H |
- |
- |
32 1/2" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
8.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
5901-H
Clear Opening Diameter:
32 1/2"
Frame Flange Diameter:
38 1/2"
Frame Opening Diameter:
35 5/8"
Grate Diameter:
34 1/4"
Bolted:
Bolted
|
 |
600-5682 |
- |
- |
22 3/8" |
7 1/4" |
|
Seat Depth:
1"
Frame Height:
7 1/4"
Weir Perimeter (Feet):
6.1
Open Area (Sq Ft):
1"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
600-5682
Clear Opening Diameter:
22 3/8"
Frame Flange Diameter:
33"
Frame Opening Diameter:
23 1/8"
Grate Diameter:
23 1/2"
|
|
|
603TYP S |
40" |
25 1/8" |
- |
4 1/2" |
PDF
|
Clear Opening Length:
37 1/2"
Clear Opening Width:
23"
Seat Depth:
3 1/2"
Frame Height:
4 1/2"
Frame Opening Length:
37 1/2"
Frame Opening Width:
23"
Frame Flange Length:
48"
Frame Flange Width:
27"
Grate Length:
40"
Grate Width:
25 1/8"
Weir Perimeter (Feet):
10.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
603TYP S
Bolted:
Bolted
|
 |
630-5645 |
- |
- |
22 1/2" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
630-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
24"
Grate Diameter:
23 3/4"
|
 |
646-5685 |
- |
- |
21 7/8" |
9" |
|
Seat Depth:
1"
Frame Height:
9"
Weir Perimeter (Feet):
6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
646-5685
Clear Opening Diameter:
21 7/8"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
32 5/8"
Grate Diameter:
23 1/4"
|
 |
653-5655 |
- |
- |
24" |
7" |
|
Seat Depth:
2 1/2"
Frame Height:
7"
Weir Perimeter (Feet):
7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
653-5655
Clear Opening Diameter:
24"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24"
Grate Diameter:
26 3/4"
|
 |
654-5655 |
- |
- |
24" |
4" |
|
Seat Depth:
2 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
654-5655
Clear Opening Diameter:
24"
Frame Flange Diameter:
33 1/2"
Frame Opening Diameter:
25.875"
Grate Diameter:
26 3/4"
|
 |
655-5665 |
- |
- |
32" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
8.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
655-5665
Clear Opening Diameter:
32"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
34.25"
Grate Diameter:
34 1/8"
|
 |
663-5660 |
- |
- |
30" |
7" |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
663-5660
Clear Opening Diameter:
30"
Frame Flange Diameter:
46"
Frame Opening Diameter:
36.25"
Grate Diameter:
32 1/4"
|
 |
664-5685 |
- |
- |
22" |
4" |
|
Seat Depth:
1"
Frame Height:
4"
Weir Perimeter (Feet):
6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
664-5685
Clear Opening Diameter:
22"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
23.75"
Grate Diameter:
23 1/2"
|
