372 |
26 1/8" |
1 3/8" |
24" |
7 3/8" |
|
Seat Depth:
1 3/8"
Frame Height:
7 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
372
Clear Opening Diameter:
24"
Cover Diameter:
26 1/8"
Frame Flange Diameter:
35"
Frame Opening Diameter:
26 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
375 |
25 5/8" |
5/8" |
24 3/16" |
2 3/4" |
|
Seat Depth:
5/8"
Frame Height:
2 3/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
375
Clear Opening Diameter:
24 3/16"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
31"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
384 |
25 3/8" |
2" |
23" |
4" |
|
Seat Depth:
2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
384
Clear Opening Diameter:
23"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
38 1/2"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
385 |
23 3/4" |
1 1/4" |
22 3/8" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
385
Clear Opening Diameter:
22 3/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
26 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
396 |
31 3/4" |
1 3/4" |
30" |
6" |
|
Seat Depth:
1 3/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
396
Clear Opening Diameter:
30"
Cover Diameter:
31 3/4"
Frame Flange Diameter:
39 1/4"
Frame Opening Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
398 |
25 3/4" |
1 3/8" |
24" |
8" |
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
398
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
39"
Frame Opening Diameter:
32"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
401 |
31 7/8" |
1 1/8" |
30" |
8" |
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
401
Clear Opening Diameter:
30"
Cover Diameter:
31 7/8"
Frame Flange Diameter:
44"
Frame Opening Diameter:
34"
|
 |
402 |
37 7/8" |
1 1/8" |
36" |
8" |
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
402
Clear Opening Diameter:
36"
Cover Diameter:
37 7/8"
Frame Flange Diameter:
50"
Frame Opening Diameter:
40"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
404 |
22" |
1 1/2" |
20" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Catalog Number:
404
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
28 1/4"
Frame Opening Diameter:
23"
|
 |
405 |
23 3/4" |
2 1/2" |
22" |
8" |
|
Seat Depth:
2 1/2"
Frame Height:
8"
Material:
Gray Iron
Catalog Number:
405
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
31"
Frame Opening Diameter:
25"
|
 |
407 |
23 7/8" |
1 1/8" |
21 3/4" |
8" |
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
407
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
39"
Frame Opening Diameter:
26 1/2"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

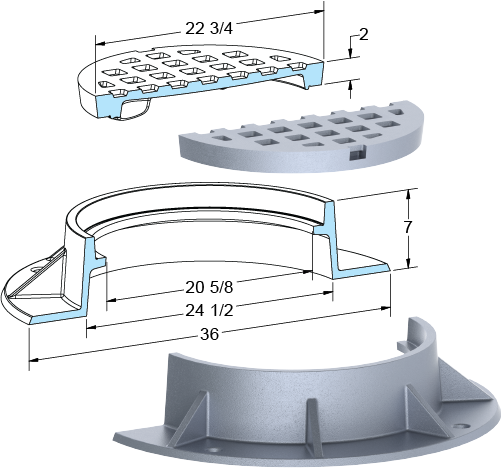

420 |
22 3/4" |
2" |
20 5/8" |
7" |
PDF
|
Seat Depth:
2"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
420
Clear Opening Diameter:
20 5/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

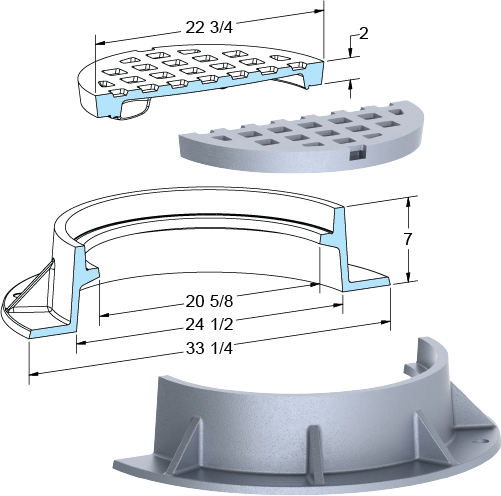

421 |
22 3/4" |
2" |
20 5/8" |
7" |
|
Seat Depth:
2"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
421
Clear Opening Diameter:
20 5/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

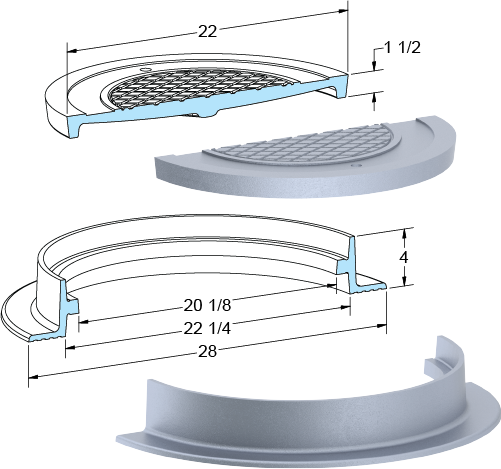

428 |
22" |
1 1/2" |
20 1/8" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
428
Clear Opening Diameter:
20 1/8"
Cover Diameter:
22"
Frame Flange Diameter:
28"
Frame Opening Diameter:
22 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
436 |
37 3/4" |
1 1/2" |
36" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
436
Clear Opening Diameter:
36"
Cover Diameter:
37 3/4"
Frame Opening Diameter:
39"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
440 |
22 3/4" |
2" |
20 3/4" |
3" |
PDF
|
Seat Depth:
2"
Frame Height:
3"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
440
Clear Opening Diameter:
20 3/4"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
30 3/4"
Frame Opening Diameter:
20 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
4580 |
24" |
7/8" |
- |
- |
PDF
|
Seat Depth:
7/8"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Catalog Number:
4580
Cover Diameter:
24"
Open Pick:
Open Pick
|
 |
460 |
31 7/8" |
1 3/8" |
30" |
10" |
|
Seat Depth:
1 3/8"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
460
Clear Opening Diameter:
30"
Cover Diameter:
31 7/8"
Frame Flange Diameter:
46"
Frame Opening Diameter:
38"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
465 |
22 3/4" |
2" |
20 3/4" |
4" |
|
Seat Depth:
2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
465
Clear Opening Diameter:
20 3/4"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
32 3/4"
Frame Opening Diameter:
20 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
479 |
38" |
1 1/2" |
36" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
479
Clear Opening Diameter:
36"
Cover Diameter:
38"
Frame Flange Diameter:
44 1/4"
Frame Opening Diameter:
38 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
480 |
25 3/8" |
1 1/2" |
23 1/2" |
7 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
7 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
480
Clear Opening Diameter:
23 1/2"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
25 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
485 |
22 3/4" |
2" |
20 3/8" |
9" |
|
Seat Depth:
2"
Frame Height:
9"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
485
Clear Opening Diameter:
20 3/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
486 |
35 3/8" |
1 1/4" |
32" |
10" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
486
Clear Opening Diameter:
32"
Cover Diameter:
35 3/8"
Frame Flange Diameter:
51 1/2"
Frame Opening Diameter:
39 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
490 |
31 7/8" |
1 3/8" |
30" |
10" |
|
Seat Depth:
1 3/8"
Frame Height:
10"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
490
Clear Opening Diameter:
30"
Cover Diameter:
31 7/8"
Frame Flange Diameter:
49"
Frame Opening Diameter:
38"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
