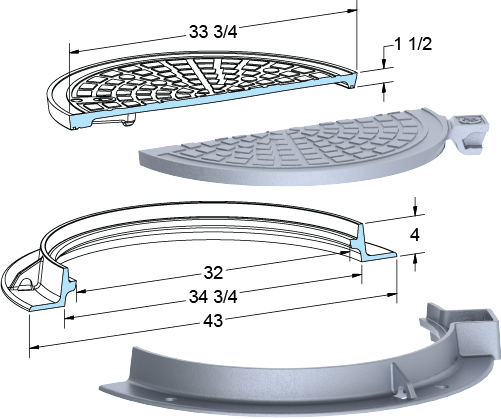

324 |
33 3/4" |
1 1/2" |
32" |
4" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
324
Clear Opening Diameter:
32"
Cover Diameter:
33 3/4"
Frame Flange Diameter:
43"
Frame Opening Diameter:
34 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

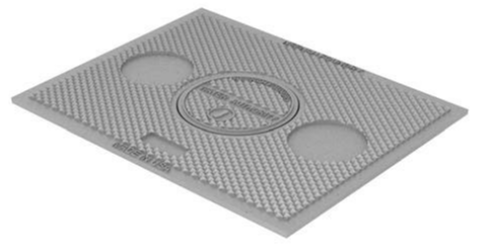

3309 |
9 3/8" |
2" |
8 1/4" |
- |
PDF
|
Seat Depth:
2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3309
Clear Opening Diameter:
8 1/4"
Cover Diameter:
9 3/8"
Cover Length:
28"
Cover Width:
22"
Open Pick:
Open Pick
|
 |

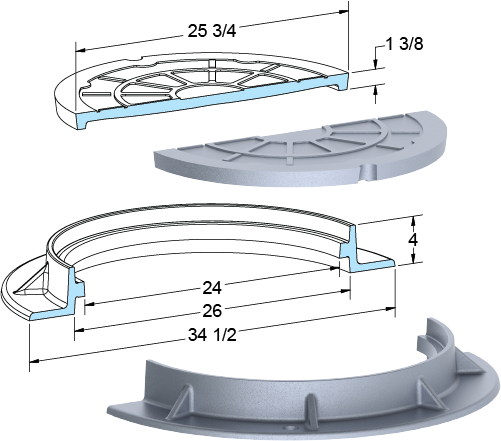

344 |
25 3/4" |
1 3/8" |
24" |
4" |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
344
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
346 |
25 3/4" |
1 3/8" |
24" |
6" |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
346
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

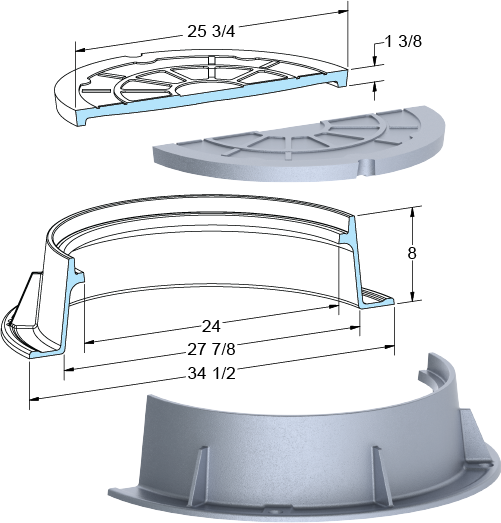

348 |
25 3/4" |
1 3/8" |
24" |
8" |
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
348
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
3487 |
9" |
1" |
7" |
6 1/2" |
PDF
|
Seat Depth:
1"
Frame Height:
6 1/2"
Highest Load Rating:
FAA
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
3487
Clear Opening Diameter:
7"
Cover Diameter:
9"
Frame Flange Diameter:
16"
Frame Opening Diameter:
10"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

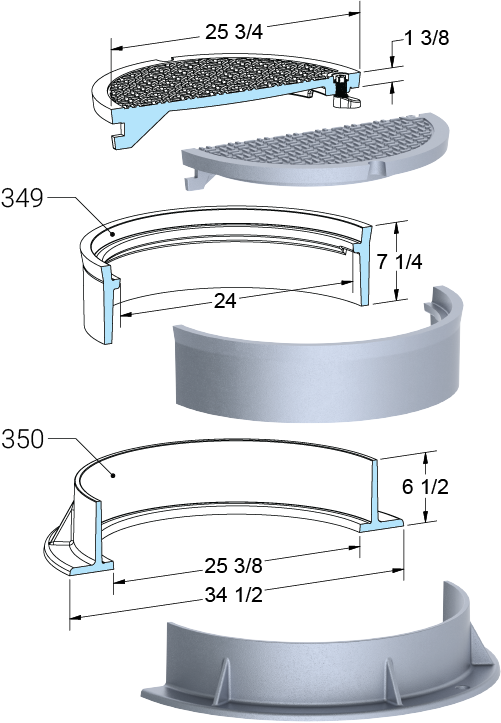

349-350 |
25 3/4" |
1 3/8" |
24" |
- |
|
Seat Depth:
1 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
349-350
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
3491-HL |
29" |
1 3/4" |
25 1/2" |
6" |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
6"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3491-HL
Clear Opening Diameter:
25 1/2"
Cover Diameter:
29"
Frame Flange Diameter:
35"
Frame Opening Diameter:
29"
Bolted:
Bolted
Open Pick:
Open Pick
|
|
|
3491-JL |
32 3/8" |
2" |
30" |
6" |
PDF
|
Seat Depth:
2"
Frame Height:
6"
Highest Load Rating:
FAA
Material:
Ductile Iron, Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
3491-JL
Clear Opening Diameter:
30"
Cover Diameter:
32 3/8"
Frame Flange Diameter:
39 1/2"
Frame Opening Diameter:
33 9/16"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

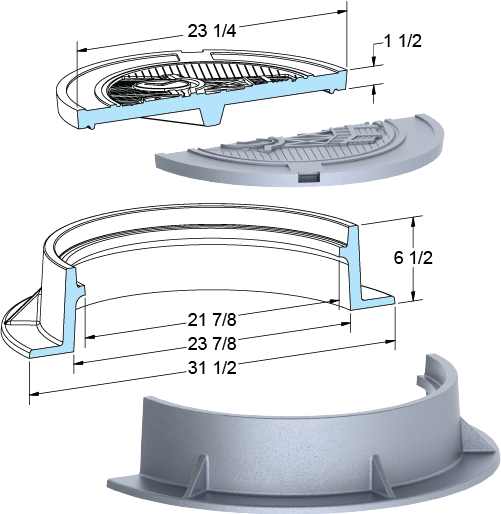

352 |
23 1/4" |
1 1/2" |
21 7/8" |
6 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
352
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
23 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

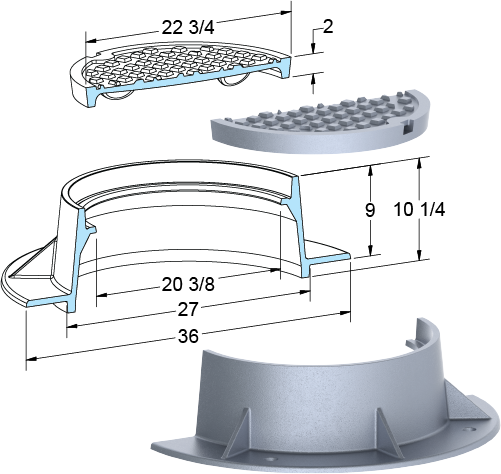

355 |
22 3/4" |
2" |
20 3/8" |
9" |
|
Seat Depth:
2"
Frame Height:
9"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
355
Clear Opening Diameter:
20 3/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
27"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

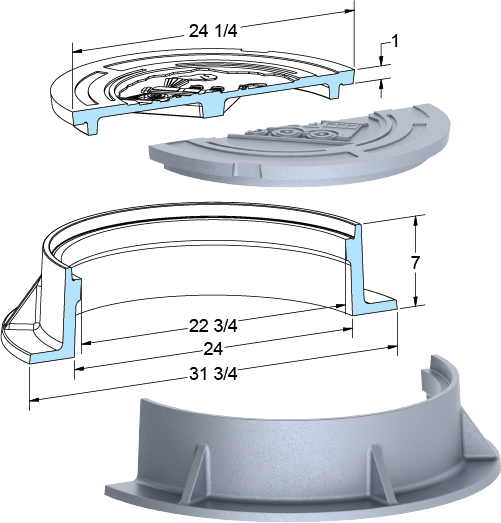

359 |
24 1/4" |
1" |
22 3/4" |
7" |
|
Seat Depth:
1"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
359
Clear Opening Diameter:
22 3/4"
Cover Diameter:
24 1/4"
Frame Flange Diameter:
31 3/4"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

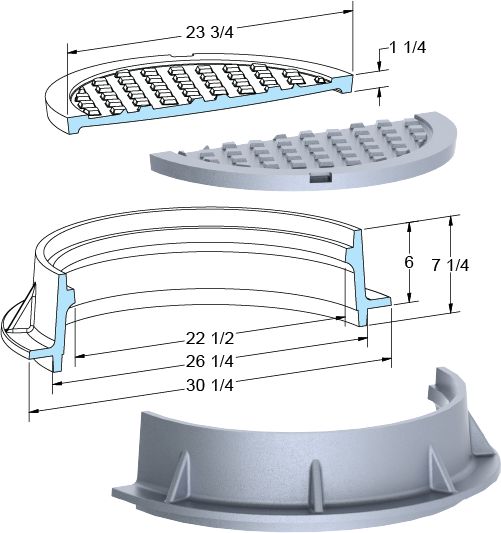

360 |
23 3/4" |
1 1/4" |
22 1/2" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
360
Clear Opening Diameter:
22 1/2"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
26 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

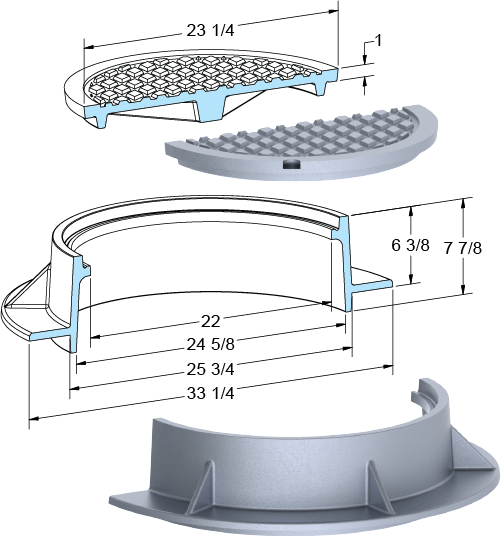

361 |
23 1/4" |
1" |
22" |
6 3/8" |
PDF
|
Seat Depth:
1"
Frame Height:
6 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
361
Clear Opening Diameter:
22"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
33 1/4"
Frame Opening Diameter:
25 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

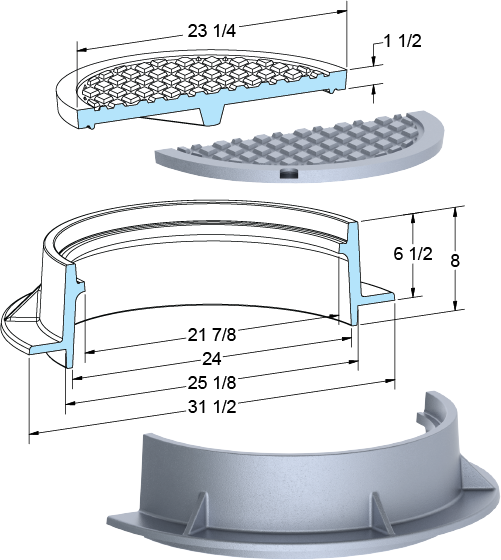

362 |
23 1/4" |
1 1/2" |
21 7/8" |
6 1/2" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
362
Clear Opening Diameter:
21 7/8"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
25 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
363 |
23 1/2" |
1 1/2" |
22" |
6" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
363
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

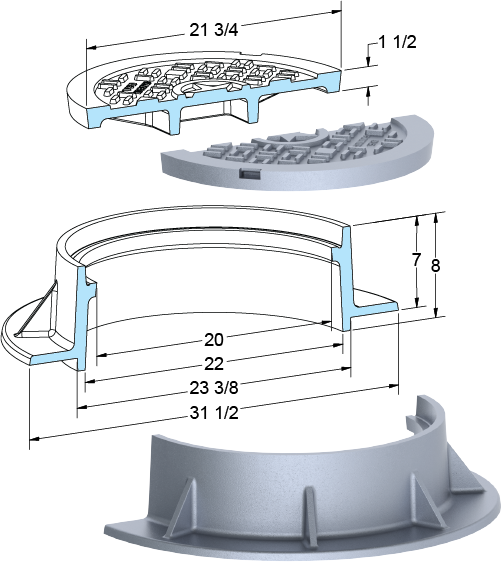

364 |
21 3/4" |
1 1/2" |
20" |
7" |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
364
Clear Opening Diameter:
20"
Cover Diameter:
21 3/4"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
22"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

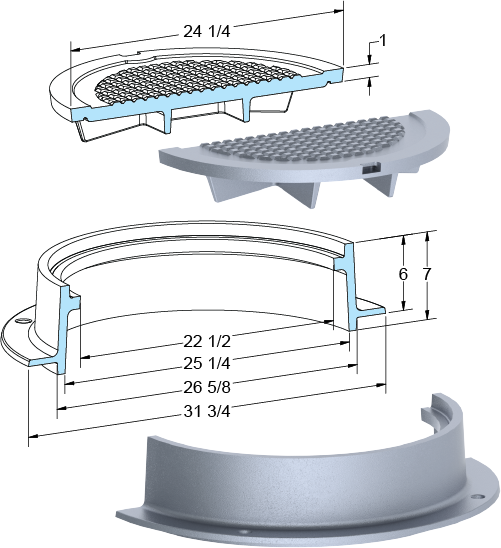

365 |
24 1/4" |
1" |
22 1/2" |
6" |
PDF
|
Seat Depth:
1"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
365
Clear Opening Diameter:
22 1/2"
Cover Diameter:
24 1/4"
Frame Flange Diameter:
31 3/4"
Frame Opening Diameter:
26 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |

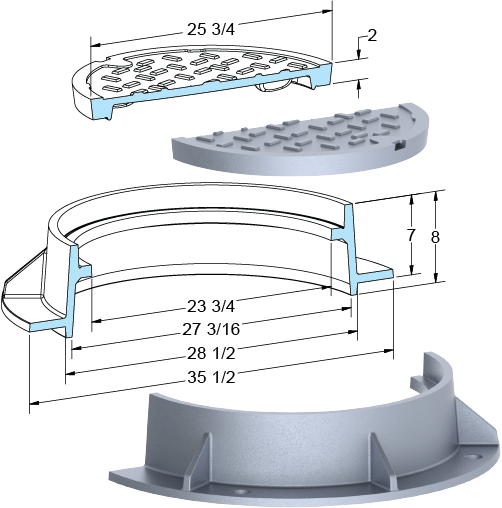

366 |
25 3/4" |
2" |
23 3/4" |
7" |
|
Seat Depth:
2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
366
Clear Opening Diameter:
23 3/4"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
39"
Frame Opening Diameter:
28 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

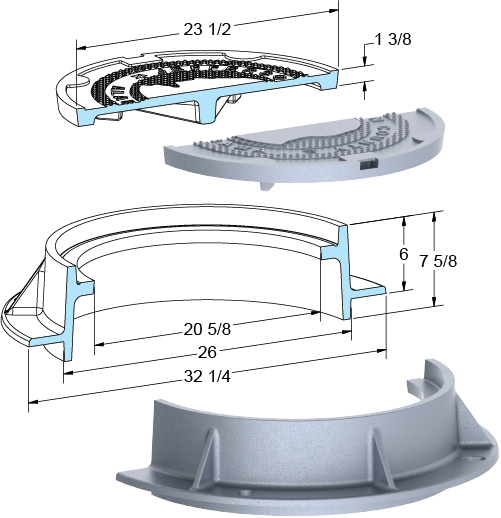

367 |
23 1/2" |
1 3/8" |
20 5/8" |
6" |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
367
Clear Opening Diameter:
20 5/8"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
368 |
23 1/2" |
1 3/8" |
22" |
6" |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
368
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
369 |
23 3/4" |
1 1/2" |
22" |
4 1/2" |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
369
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

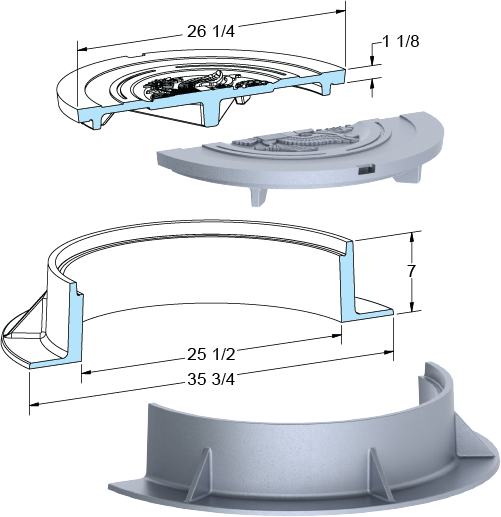

370 |
26 1/4" |
1 1/8" |
25 1/8" |
7" |
|
Seat Depth:
1 1/8"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
370
Clear Opening Diameter:
25 1/8"
Cover Diameter:
26 1/4"
Frame Flange Diameter:
35 3/4"
Frame Opening Diameter:
25 13/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

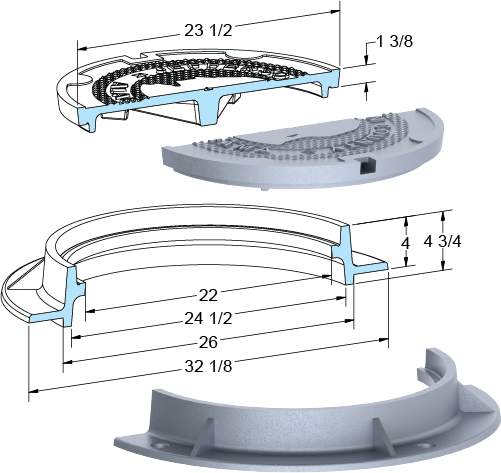

371 |
23 1/2" |
1 3/8" |
22" |
4" |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
371
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
