3550-2 |
47 3/4" |
21 3/4" |
- |
5" |
|
Clear Opening Length:
45 1/2"
Clear Opening Width:
19 1/2"
Seat Depth:
1 1/4"
Frame Height:
5"
Frame Opening Length:
48"
Frame Opening Width:
45"
Frame Flange Length:
54"
Frame Flange Width:
51"
Grate Length:
47 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
15.2
Highest Load Rating:
H-25
Shape:
Square/Rectangle
Catalog Number:
3550-2
|
 |
3555 |
19" |
13" |
- |
4" |
PDF
|
Clear Opening Length:
17 5/8"
Clear Opening Width:
11 5/8"
Seat Depth:
1 1/2"
Frame Height:
4"
Frame Opening Length:
17 5/8"
Frame Opening Width:
11 5/8"
Frame Flange Length:
24 5/8"
Frame Flange Width:
18 5/8"
Grate Length:
19"
Grate Width:
13"
Weir Perimeter (Feet):
5.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3555
|
 |
3561 |
31 1/4" |
31 1/4" |
- |
4 1/2" |
PDF
|
Clear Opening Length:
30"
Clear Opening Width:
30"
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Frame Opening Length:
32 7/16"
Frame Opening Width:
32 7/16"
Frame Flange Length:
36"
Frame Flange Width:
36"
Grate Length:
31 1/4"
Grate Width:
31 1/4"
Weir Perimeter (Feet):
10.4
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3561
|
 |
3563-HB |
24" |
20" |
- |
4 1/2" |
PDF
|
Clear Opening Length:
22 1/2"
Clear Opening Width:
18 1/2"
Seat Depth:
1 5/8"
Frame Height:
4 1/2"
Frame Opening Length:
24 1/4"
Frame Opening Width:
20 1/4"
Frame Flange Length:
29 1/4"
Frame Flange Width:
25 1/4"
Grate Length:
24"
Grate Width:
20"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3563-HB
Bolted:
Bolted
|
 |
3570 |
23 3/16" |
21" |
- |
8" |
PDF
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 7/16"
Frame Opening Width:
22 5/8"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570
|
 |
3570-A |
23 3/16" |
21" |
- |
4" |
PDF
|
Clear Opening Length:
23 1/4"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
4"
Frame Opening Length:
24"
Frame Opening Width:
22 1/4"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570-A
|
|
|
3570-W |
23 3/16" |
21" |
- |
8" |
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 13/16"
Frame Opening Width:
22 5/8"
Frame Flange Length:
31 3/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3570-W
|
|
|
3571 |
23 3/16" |
21" |
- |
8" |
PDF
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 7/16"
Frame Opening Width:
23 1/2"
Frame Flange Length:
28 5/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3571
|
|
|
3571-A |
23 3/16" |
21" |
- |
4" |
PDF
|
Clear Opening Length:
23 1/4"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
4"
Frame Opening Length:
24"
Frame Opening Width:
22 1/4"
Frame Flange Length:
28 5/8"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3571-A
|
|
|
3571-W |
23 3/16" |
21" |
- |
8" |
|
Clear Opening Length:
21 3/16"
Clear Opening Width:
19"
Seat Depth:
2 1/2"
Frame Height:
8"
Frame Opening Length:
24 13/16"
Frame Opening Width:
22 5/8"
Frame Flange Length:
28 5/16"
Frame Flange Width:
29"
Grate Length:
23 3/16"
Grate Width:
21"
Weir Perimeter (Feet):
7.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3571-W
|
|
|
3572-W |
47 3/4" |
26 1/2" |
- |
10 1/8" |
|
Clear Opening Length:
45 1/2"
Clear Opening Width:
23 7/8"
Seat Depth:
2 1/2"
Frame Height:
10 1/8"
Frame Opening Length:
50"
Frame Opening Width:
28 3/8"
Frame Flange Length:
59"
Frame Flange Width:
37 3/8"
Grate Length:
47 3/4"
Grate Width:
26 1/2"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3572-W
|
|
|
3573 |
47 3/4" |
26 1/2" |
- |
7 7/8" |
|
Clear Opening Length:
45 21/32"
Clear Opening Width:
24 13/32"
Seat Depth:
2 1/2"
Frame Height:
7 7/8"
Frame Opening Length:
49 7/32"
Frame Opening Width:
27 31/32"
Frame Flange Length:
55 29/32"
Frame Flange Width:
31 7/8"
Grate Length:
47 3/4"
Grate Width:
26 1/2"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3573
|
|
|
3574 |
23 13/16" |
26 1/2" |
- |
2 15/16" |
PDF
|
Clear Opening Length:
45 5/16"
Clear Opening Width:
24 1/16"
Seat Depth:
2 9/16"
Frame Height:
2 15/16"
Frame Opening Length:
45 5/16"
Frame Opening Width:
24 1/16"
Frame Flange Length:
53 3/16"
Frame Flange Width:
31 15/16"
Grate Length:
23 13/16"
Grate Width:
26 1/2"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3574
|
|
|
3574-2L |
47 3/4" |
26 1/2" |
- |
2 31/32" |
PDF
|
Clear Opening Length:
45 9/32"
Clear Opening Width:
24 1/32"
Seat Depth:
2 1/2"
Frame Height:
2 31/32"
Frame Opening Length:
53 5/32"
Frame Opening Width:
31 7/8"
Frame Flange Length:
53 5/32"
Frame Flange Width:
31 7/8"
Grate Length:
47 3/4"
Grate Width:
26 1/2"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
Contact NEI, H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3574-2L
Bolted:
Bolted
Roll Grate:
Roll Grate
|
|
|
3574-2Q |
23 13/16" |
26 1/2" |
- |
2 31/32" |
PDF
|
Clear Opening Length:
45 9/32"
Clear Opening Width:
24 1/32"
Seat Depth:
2 1/2"
Frame Height:
2 31/32"
Frame Opening Length:
53 5/32"
Frame Opening Width:
31 7/8"
Frame Flange Length:
53 5/32"
Frame Flange Width:
31 7/8"
Grate Length:
23 13/16"
Grate Width:
26 1/2"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3574-2Q
ADA Compliant Grate:
ADA Compliant Grate
|
|
|
3574-C |
47 3/4" |
26 1/2" |
- |
3" |
PDF
|
Clear Opening Length:
45 9/32"
Clear Opening Width:
24 1/16"
Seat Depth:
2 1/2"
Frame Height:
3"
Frame Opening Length:
45 9/32"
Frame Opening Width:
24 1/16"
Frame Flange Length:
53 5/32"
Frame Flange Width:
31 7/8"
Grate Length:
47 3/4"
Grate Width:
26 1/2"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3574-C
|
 |
3575 |
33 3/4" |
21 3/4" |
- |
4" |
PDF
|
Clear Opening Length:
31 15/16"
Clear Opening Width:
19"
Seat Depth:
2 3/4"
Frame Height:
4"
Frame Opening Length:
31 15/16"
Frame Opening Width:
19"
Frame Flange Length:
36 7/16"
Frame Flange Width:
24 7/16"
Grate Length:
33 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
9.5
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3575
|
 |
3576 |
36" |
20" |
- |
4" |
|
Clear Opening Length:
34"
Clear Opening Width:
18"
Seat Depth:
2"
Frame Height:
4"
Frame Opening Length:
34"
Frame Opening Width:
18"
Frame Flange Length:
38 1/4"
Frame Flange Width:
22 1/4"
Grate Length:
36"
Grate Width:
20"
Weir Perimeter (Feet):
9.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3576
|
|
|
3576-V |
36" |
20" |
- |
- |
|
Seat Depth:
2"
Grate Length:
36"
Grate Width:
20"
Weir Perimeter (Feet):
9.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3576-V
|
 |
3582-V1 |
33 3/4" |
21 3/4" |
- |
4" |
|
Clear Opening Length:
31 11/16"
Clear Opening Width:
19 11/16"
Seat Depth:
2 3/4"
Frame Height:
4"
Frame Opening Length:
36"
Frame Opening Width:
24"
Frame Flange Length:
36"
Frame Flange Width:
24"
Grate Length:
33 3/4"
Grate Width:
21 3/4"
Weir Perimeter (Feet):
9.2
Open Area (Sq Ft):
2"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3582-V1
|
|
|
3588 |
23 7/8" |
23 7/8" |
- |
8" |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
22 1/4"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
33"
Frame Flange Width:
33"
Grate Length:
23 7/8"
Grate Width:
23 7/8"
Weir Perimeter (Feet):
7.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3588
Bolted:
Bolted
|
 |

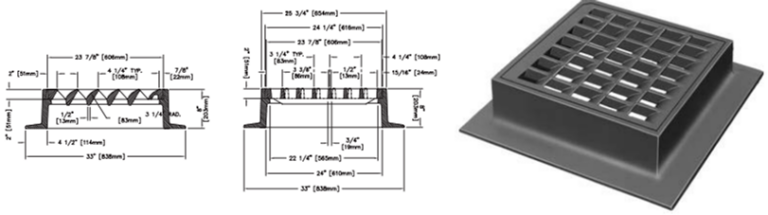

3588-LL |
23 7/8" |
23 7/8" |
- |
8" |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
22 1/4"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
25"
Frame Opening Width:
25"
Frame Flange Length:
33"
Frame Flange Width:
33"
Grate Length:
23 7/8"
Grate Width:
23 7/8"
Weir Perimeter (Feet):
7.8
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3588-LL
Bolted:
Bolted
|
 |
3589 |
23 7/8" |
23 7/8" |
- |
8" |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
22 1/4"
Seat Depth:
2"
Frame Height:
8"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
29 11/16"
Frame Flange Width:
33"
Grate Length:
23 7/8"
Grate Width:
23 7/8"
Weir Perimeter (Feet):
7.9
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3589
Bolted:
Bolted
|
 |

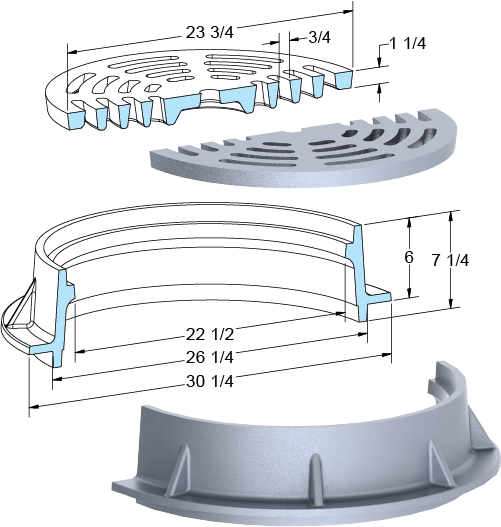

360-5645 |
- |
- |
22 1/2" |
6" |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
360-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
26 1/4"
Grate Diameter:
23 3/4"
|
