344-5618 |
- |
- |
24" |
4" |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
344-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
26"
Grate Diameter:
25 3/4"
|
 |
3448-C |
22 3/4" |
17 3/4" |
- |
6 3/4" |
|
Clear Opening Length:
19 7/16"
Clear Opening Width:
16 7/16"
Seat Depth:
1 3/4"
Frame Height:
6 3/4"
Frame Opening Length:
22 3/4"
Frame Opening Width:
17 3/4"
Frame Flange Length:
34"
Grate Length:
22 3/4"
Grate Width:
17 3/4"
Weir Perimeter (Feet):
6.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3448-C
|
|
|
3455-C |
36" |
24" |
- |
9" |
PDF
|
Clear Opening Length:
34"
Clear Opening Width:
22"
Seat Depth:
1 3/4"
Frame Height:
9"
Frame Opening Length:
36"
Frame Opening Width:
24"
Frame Flange Length:
48"
Frame Flange Width:
38"
Grate Length:
36"
Grate Width:
24"
Weir Perimeter (Feet):
10
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3455-C
Bolted:
Bolted
|
 |
346-5618 |
- |
- |
24" |
6" |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
346-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34"
Frame Opening Diameter:
27.875"
Grate Diameter:
25 3/4"
|
|
|
3463-B |
29 1/2" |
16 3/8" |
- |
6 3/4" |
PDF
|
Clear Opening Length:
27 1/2"
Clear Opening Width:
14 1/2"
Seat Depth:
2"
Frame Height:
6 3/4"
Frame Opening Length:
29 7/8"
Frame Opening Width:
15 3/4"
Frame Flange Length:
74 1/2"
Frame Flange Width:
24 3/8"
Grate Length:
29 1/2"
Grate Width:
16 3/8"
Weir Perimeter (Feet):
12.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3463-B
|
|
|
3463-BW |
29 1/2" |
16 3/8" |
- |
6 3/4" |
|
Clear Opening Length:
27 1/2"
Clear Opening Width:
14 3/8"
Seat Depth:
2"
Frame Height:
6 3/4"
Frame Opening Length:
61 19/32"
Frame Opening Width:
16 3/16"
Frame Flange Length:
74 1/2"
Frame Flange Width:
34 3/8"
Grate Length:
29 1/2"
Grate Width:
16 3/8"
Weir Perimeter (Feet):
12.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3463-BW
|
|
|
3470 |
24" |
26 5/8" |
- |
2 1/2" |
PDF
|
Clear Opening Length:
24"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
27 5/16"
Frame Flange Width:
29 13/16"
Grate Length:
24"
Grate Width:
26 5/8"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3470
Bolted:
Bolted
|
|
|
3470-2 |
24" |
26 5/8" |
- |
2 1/2" |
PDF
|
Clear Opening Length:
48"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
48"
Frame Opening Width:
24"
Frame Flange Length:
51 5/16"
Frame Flange Width:
29 13/16"
Grate Length:
24"
Grate Width:
26 5/8"
Weir Perimeter (Feet):
12.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3470-2
Bolted:
Bolted
|
|
|
3471 |
24" |
10 1/2" |
- |
4" |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
8 3/4"
Seat Depth:
3/4"
Frame Height:
4"
Frame Opening Length:
24"
Frame Opening Width:
10 1/2"
Frame Flange Length:
32"
Frame Flange Width:
18 1/2"
Grate Length:
24"
Grate Width:
10 1/2"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3471
Bolted:
Bolted
|
|
|
3472 |
21 7/8" |
21 7/8" |
- |
8" |
PDF
|
Clear Opening Length:
20"
Clear Opening Width:
20"
Seat Depth:
1"
Frame Height:
8"
Frame Opening Length:
22"
Frame Opening Width:
22"
Frame Flange Length:
34"
Frame Flange Width:
34"
Grate Length:
21 7/8"
Grate Width:
21 7/8"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3472
Bolted:
Bolted
|
 |
348-5618 |
- |
- |
24" |
8" |
|
Seat Depth:
1 3/8"
Frame Height:
8"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
348-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
27.875"
Grate Diameter:
25 3/4"
|
 |
349-350-5618 |
- |
- |
24" |
- |
|
Seat Depth:
1 3/8"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
349-350-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
25.375"
Grate Diameter:
25 3/4"
|
|
|
3501-D2A |
22 3/16" |
16 1/4" |
- |
10 5/8" |
PDF
|
Clear Opening Length:
19 1/2"
Clear Opening Width:
13 1/2"
Seat Depth:
1 3/4"
Frame Height:
10 5/8"
Frame Opening Length:
22 3/4"
Frame Opening Width:
16 3/4"
Frame Flange Length:
29 3/4"
Frame Flange Width:
29 1/4"
Grate Length:
22 3/16"
Grate Width:
16 1/4"
Weir Perimeter (Feet):
3.4
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-D2A
Roll Grate:
Roll Grate
|
|
|

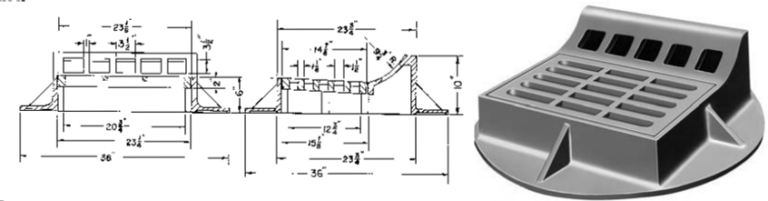

3501-L1A |
23 1/8" |
14 7/8" |
- |
6" |
PDF
|
Clear Opening Length:
20 3/4"
Clear Opening Width:
12 11/16"
Seat Depth:
2"
Frame Height:
6"
Frame Opening Length:
23 1/4"
Frame Opening Width:
22 7/16"
Frame Flange Length:
36"
Grate Length:
23 1/8"
Grate Width:
14 7/8"
Weir Perimeter (Feet):
4.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-L1A
Roll Grate:
Roll Grate
|
|
|
3501-L2 |
26" |
23 1/2" |
- |
7" |
PDF
|
Clear Opening Length:
26 1/8"
Clear Opening Width:
21 9/16"
Seat Depth:
1 1/2"
Frame Height:
7"
Frame Opening Length:
27 1/4"
Frame Opening Width:
25"
Frame Flange Length:
36"
Grate Length:
26"
Grate Width:
23 1/2"
Weir Perimeter (Feet):
3.7
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-L2
Bolted:
Bolted
Roll Grate:
Roll Grate
|
|
|

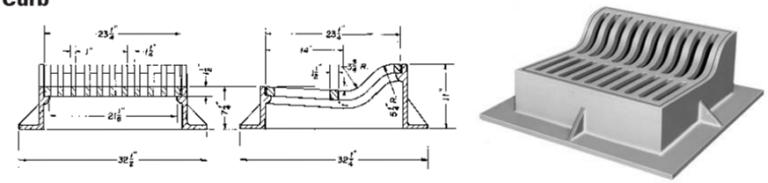

3501-N |
23 1/4" |
23 1/4" |
- |
7 1/4" |
PDF
|
Clear Opening Length:
21 1/8"
Clear Opening Width:
21 1/8"
Seat Depth:
1 1/2"
Frame Height:
7 1/4"
Frame Opening Length:
23 7/8"
Frame Opening Width:
23 7/8"
Frame Flange Length:
32 1/4"
Frame Flange Width:
32 1/4"
Grate Length:
23 1/4"
Grate Width:
23 1/4"
Weir Perimeter (Feet):
4.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-N
Roll Grate:
Roll Grate
|
|
|
3501-P |
25 3/4" |
19" |
- |
8" |
PDF
|
Clear Opening Length:
23 5/8"
Clear Opening Width:
17"
Seat Depth:
1 3/4"
Frame Height:
8"
Frame Opening Length:
28"
Frame Opening Width:
21"
Frame Flange Length:
35"
Frame Flange Width:
31"
Grate Length:
25 3/4"
Grate Width:
19"
Weir Perimeter (Feet):
4.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-P
Roll Grate:
Roll Grate
|
|
|

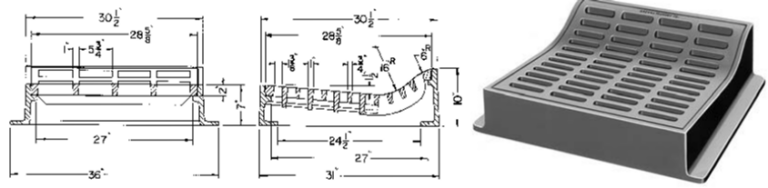

3501-R |
28 5/8" |
28 5/8" |
- |
7" |
PDF
|
Clear Opening Length:
27"
Clear Opening Width:
24 3/8"
Seat Depth:
2"
Frame Height:
7"
Frame Opening Length:
29 1/2"
Frame Opening Width:
24 23/32"
Frame Flange Length:
36"
Frame Flange Width:
31"
Grate Length:
28 5/8"
Grate Width:
28 5/8"
Weir Perimeter (Feet):
5.5
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-R
Roll Grate:
Roll Grate
|
|
|
3501-T |
26" |
23 15/32" |
- |
5 3/4" |
PDF
|
Clear Opening Length:
26 1/8"
Clear Opening Width:
21 1/8"
Seat Depth:
1 1/2"
Frame Height:
5 3/4"
Frame Opening Length:
27 1/4"
Frame Opening Width:
25"
Frame Flange Length:
38"
Frame Flange Width:
29 3/4"
Grate Length:
26"
Grate Width:
23 15/32"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-T
Roll Grate:
Roll Grate
|
|
|

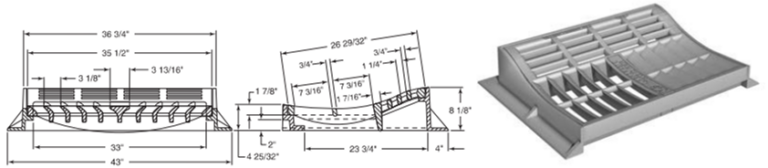

3501-TB |
35 1/2" |
26 29/32" |
- |
4 23/32" |
PDF
|
Clear Opening Length:
33"
Clear Opening Width:
22"
Seat Depth:
1 7/8"
Frame Height:
4 23/32"
Frame Opening Length:
36 3/4"
Frame Opening Width:
23 3/4"
Frame Flange Length:
43"
Frame Flange Width:
31 7/8"
Grate Length:
35 1/2"
Grate Width:
26 29/32"
Weir Perimeter (Feet):
5.7
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-TB
Roll Grate:
Roll Grate
|
|
|
3501-TL |
26" |
23 15/32" |
- |
5 3/4" |
PDF
|
Clear Opening Length:
26 1/8"
Clear Opening Width:
21 1/8"
Seat Depth:
1 1/2"
Frame Height:
5 3/4"
Frame Opening Length:
27 1/4"
Frame Opening Width:
25"
Frame Flange Length:
38"
Frame Flange Width:
29 3/4"
Grate Length:
26"
Grate Width:
23 15/32"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-TL
Roll Grate:
Roll Grate
|
|
|

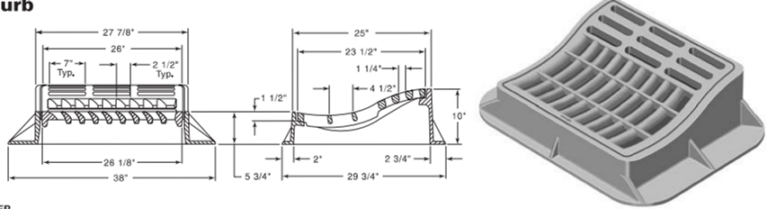

3501-TR |
26" |
23 15/32" |
- |
5 3/4" |
PDF
|
Clear Opening Length:
26 1/8"
Clear Opening Width:
21 1/8"
Seat Depth:
1 1/2"
Frame Height:
5 3/4"
Frame Opening Length:
27 1/4"
Frame Opening Width:
25"
Frame Flange Length:
38"
Frame Flange Width:
29 3/4"
Grate Length:
26"
Grate Width:
23 15/32"
Weir Perimeter (Feet):
4.6
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-TR
Roll Grate:
Roll Grate
|
|
|
3501-U |
22 1/8" |
33 9/16" |
- |
6" |
PDF
|
Clear Opening Length:
20 3/8"
Clear Opening Width:
17 3/16"
Seat Depth:
2"
Frame Height:
6"
Frame Opening Length:
23 13/16"
Frame Opening Width:
34 3/4"
Frame Flange Length:
32"
Frame Flange Width:
36"
Grate Length:
22 1/8"
Grate Width:
33 9/16"
Weir Perimeter (Feet):
5
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3501-U
Roll Grate:
Roll Grate
|
|
|
3502-D2 |
22" |
22 3/4" |
- |
10" |
PDF
|
Clear Opening Length:
20 1/4"
Clear Opening Width:
20 3/4"
Seat Depth:
1 3/4"
Frame Height:
10"
Frame Opening Length:
23 3/8"
Frame Opening Width:
24 1/16"
Frame Flange Length:
36"
Grate Length:
22"
Grate Width:
22 3/4"
Weir Perimeter (Feet):
4.2
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3502-D2
Roll Grate:
Roll Grate
|
