1689-W |
23" |
1 1/2" |
20 1/2" |
4" |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1689-W
Clear Opening Diameter:
20 1/2"
Cover Diameter:
23"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1693 |
22 1/4" |
1" |
21" |
4 3/4" |
PDF
|
Seat Depth:
1"
Frame Height:
4 3/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1693
Clear Opening Diameter:
21"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
28 1/2"
|
 |

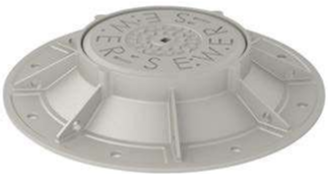

1697 |
23 7/8" |
1 1/8" |
21 3/4" |
8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1697
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
48"
Open Pick:
Open Pick
|
 |

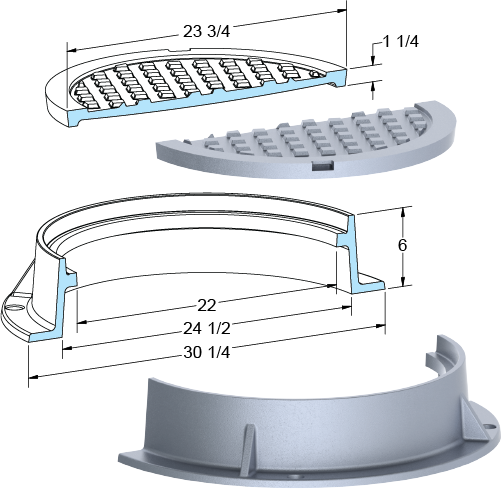

170 |
23 3/4" |
1 1/4" |
22" |
6" |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
170
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

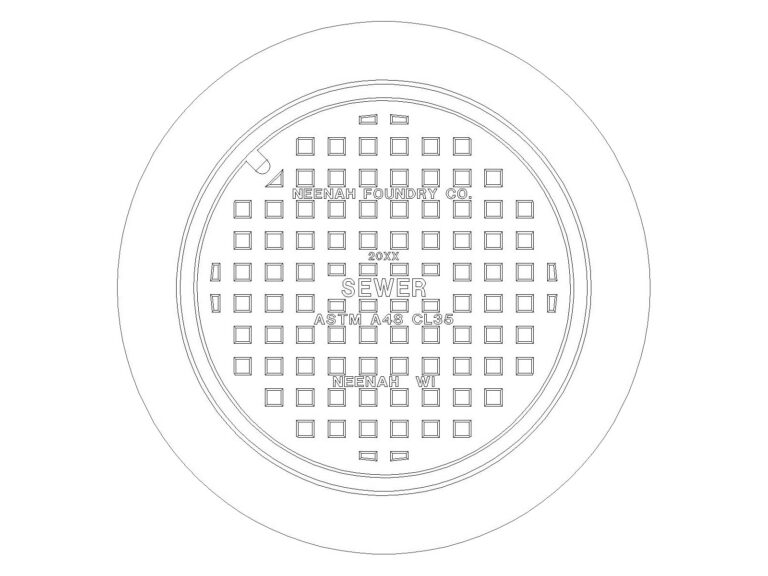

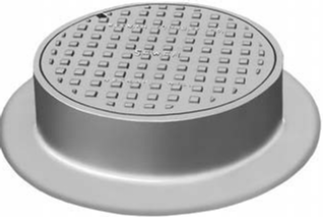

1706 |
23 7/8" |
1" |
22 1/8" |
8" |
PDF
|
Seat Depth:
1"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1706
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
34"
Open Pick:
Open Pick
|
|
|

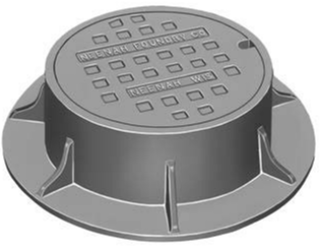

1710 |
22" |
1 1/2" |
20" |
9" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1710
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
35"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

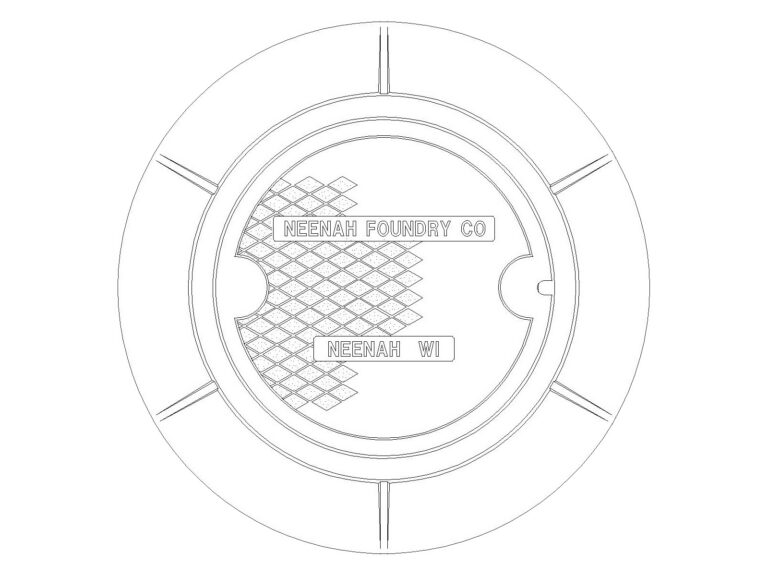

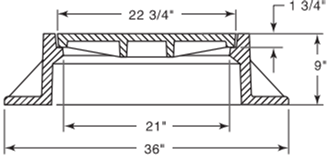

1712 |
22 3/4" |
1 3/4" |
21" |
9" |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1712
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|

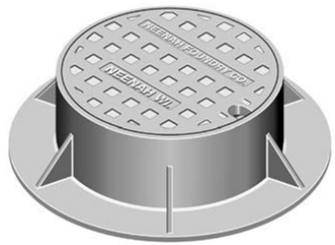

1713 |
22 3/4" |
1 3/4" |
20 7/8" |
9" |
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1713
Clear Opening Diameter:
20 7/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1713-W |
22 3/4" |
1 3/4" |
21" |
9" |
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1713-W
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

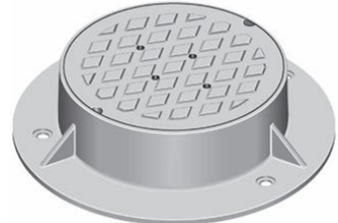

1714 |
23 13/16" |
1 25/32" |
21 21/32" |
6 7/8" |
PDF
|
Seat Depth:
1 25/32"
Frame Height:
6 7/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1714
Clear Opening Diameter:
21 21/32"
Cover Diameter:
23 13/16"
Frame Flange Diameter:
33 15/32"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

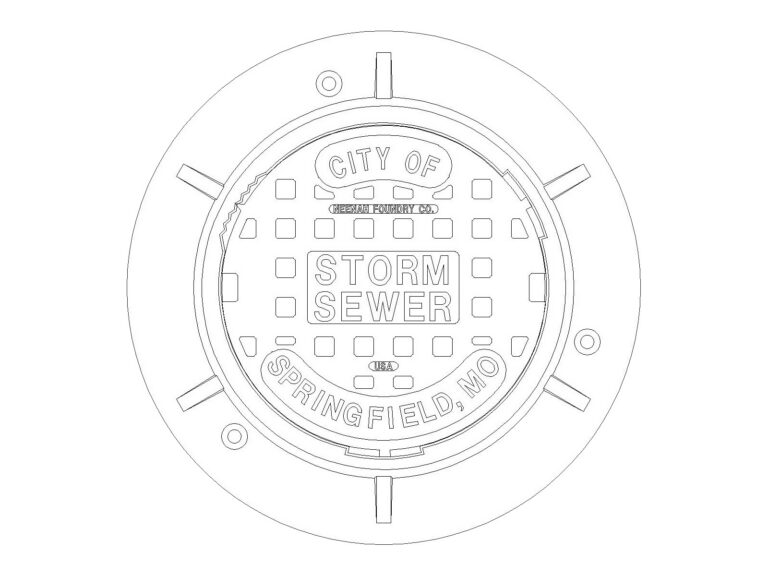

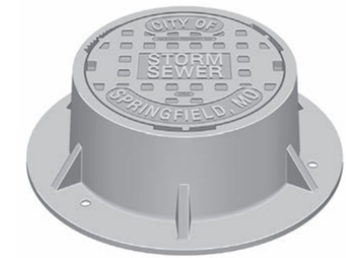

1715 |
22 3/4" |
1 3/4" |
21" |
9" |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1715
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

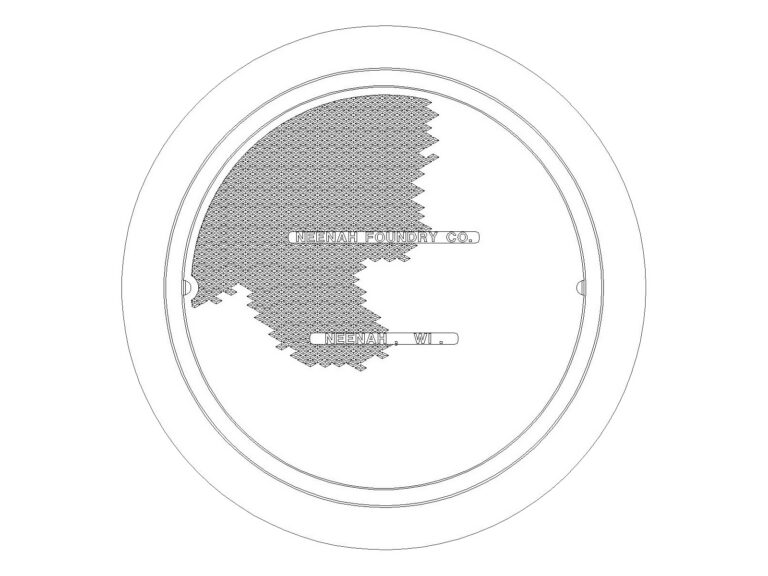

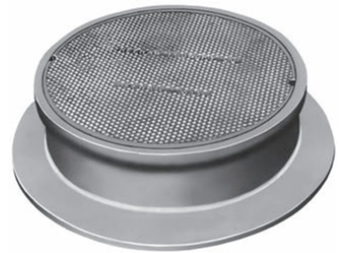

1720 |
26" |
1 1/8" |
24" |
8 1/8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1720
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

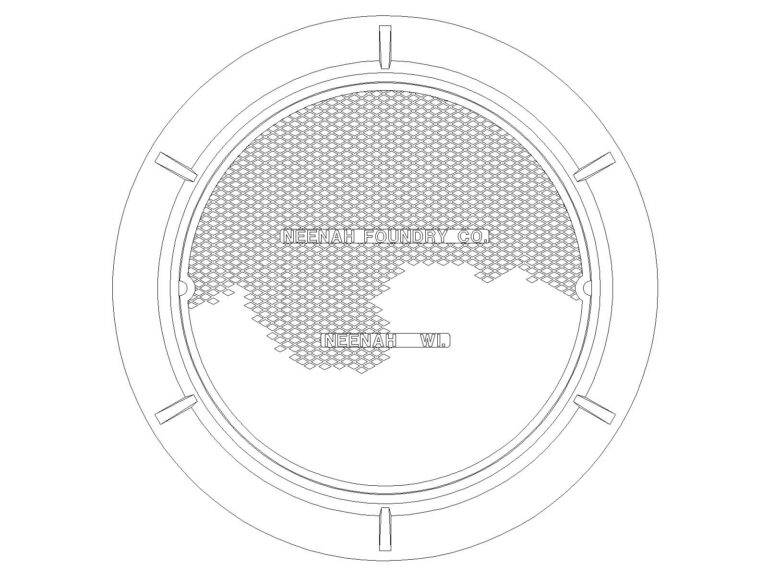

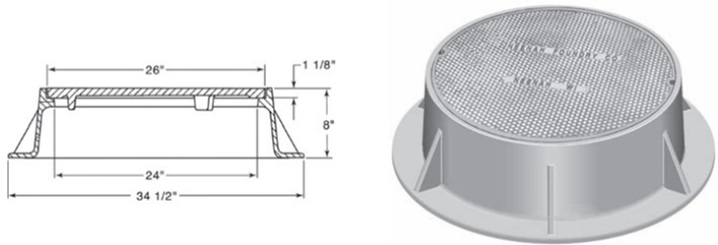

1720-A |
26" |
1 1/8" |
24" |
8" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1720-A
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1722 |
25 3/4" |
2 1/4" |
24" |
2 3/4" |
PDF
|
Seat Depth:
2 1/4"
Frame Height:
2 3/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
1722
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
28"
Open Pick:
Open Pick
|
|
|

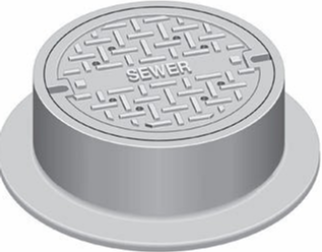

1723 |
26" |
1 7/8" |
23 1/2" |
8" |
PDF
|
Seat Depth:
1 7/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1723
Clear Opening Diameter:
23 1/2"
Cover Diameter:
26"
Frame Flange Diameter:
35 3/4"
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

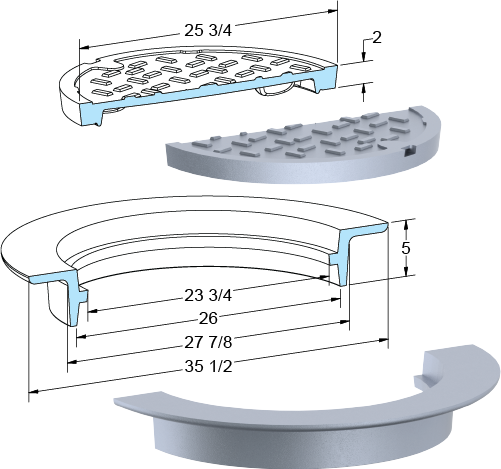

1726 |
25 3/4" |
2" |
23 3/4" |
5" |
|
Seat Depth:
2"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1726
Clear Opening Diameter:
23 3/4"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|

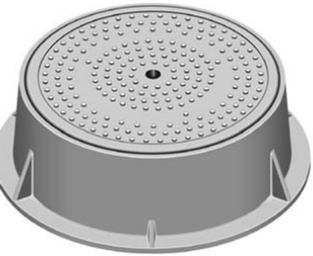

1728 |
25 5/8" |
1" |
23" |
8" |
|
Seat Depth:
1"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1728
Clear Opening Diameter:
23"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
31 3/4"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

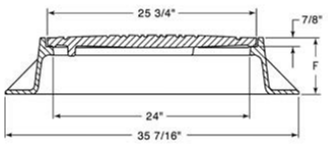

1733 |
25 3/4" |
7/8" |
24" |
7" |
PDF
|
Seat Depth:
7/8"
Frame Height:
7"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1733
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

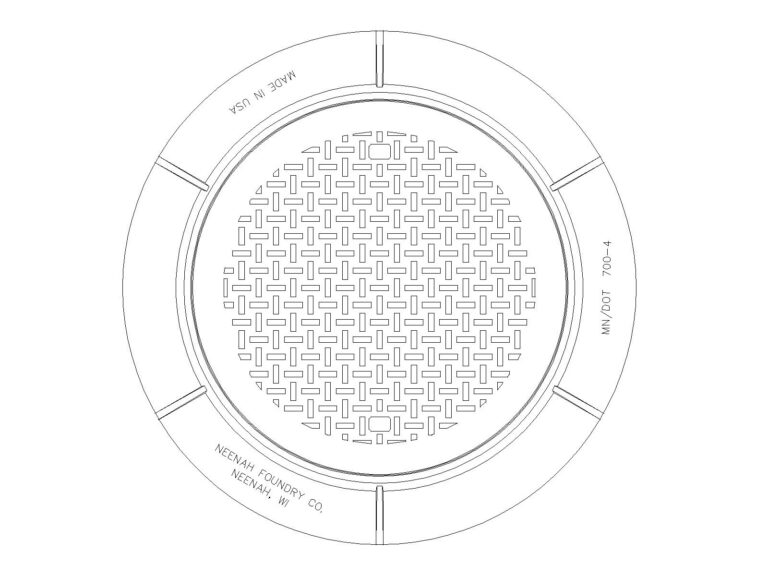

1733-1 |
25 3/4" |
7/8" |
24" |
4" |
PDF
|
Seat Depth:
7/8"
Frame Height:
4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1733-1
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1733-B |
25 3/4" |
7/8" |
24 1/8" |
9" |
|
Seat Depth:
7/8"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1733-B
Clear Opening Diameter:
24 1/8"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
36 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

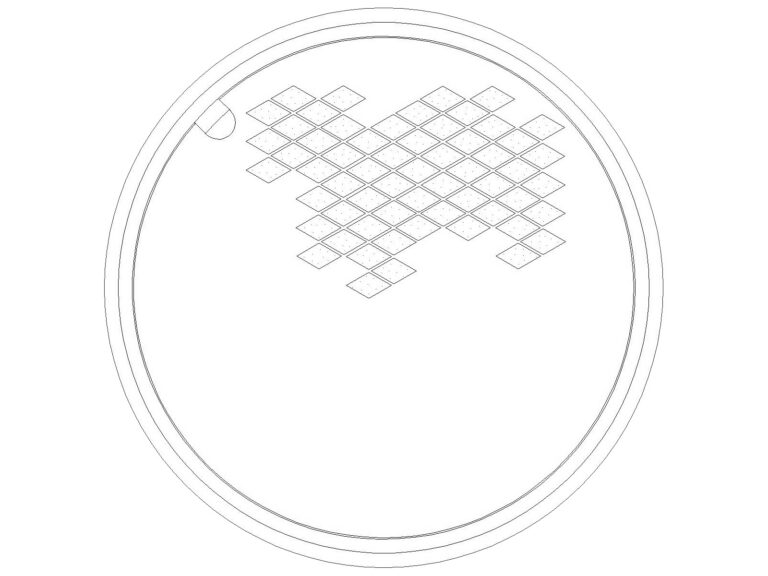

1737 |
22 1/4" |
1 1/8" |
21" |
4" |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1737
Clear Opening Diameter:
21"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
24 7/8"
Frame Opening Diameter:
22 1/4"
Open Pick:
Open Pick
|
 |

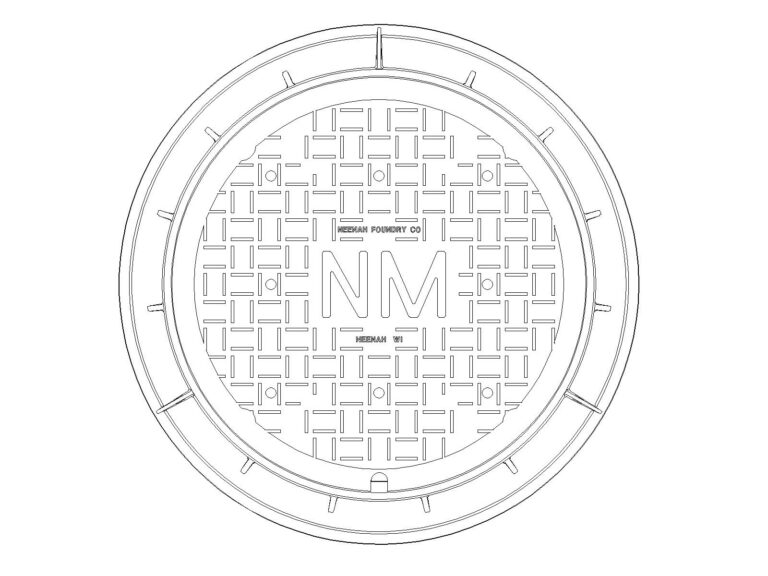

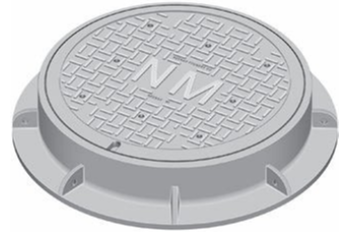

1739-A |
37 3/4" |
1 1/2" |
36" |
6" |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1739-A
Clear Opening Diameter:
36"
Cover Diameter:
37 3/4"
Frame Flange Diameter:
47 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

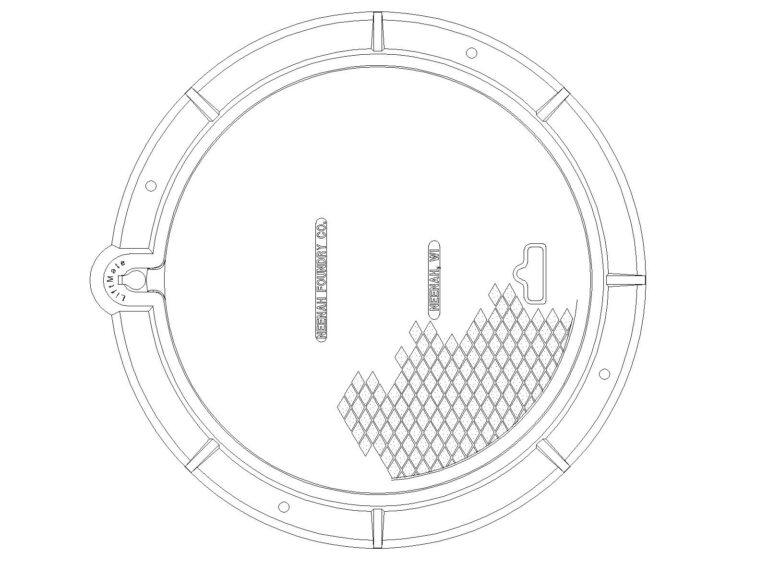

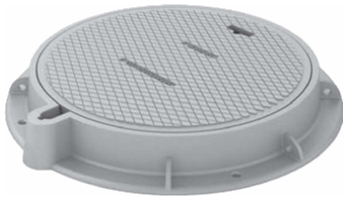

1739-ALM |
37 3/4" |
1 1/2" |
36" |
6" |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1739-ALM
Clear Opening Diameter:
36"
Cover Diameter:
37 3/4"
Frame Flange Diameter:
47 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
1739-AW |
37 3/4" |
1 1/2" |
36" |
6" |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1739-AW
Clear Opening Diameter:
36"
Cover Diameter:
37 3/4"
Frame Flange Diameter:
47 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
