4999-HX C |
|
Seat Depth:
1.5"
Weir Perimeter (Feet):
2
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-HX C
Trench Clear Opening:
24"
Trench Grate Width:
26"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
|
|
4999-HX D |
|
Seat Depth:
1.5"
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-HX D
Trench Clear Opening:
24"
Trench Grate Width:
26"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
|
|
4999-HX Q |
|
Seat Depth:
1.5"
Weir Perimeter (Feet):
2
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-HX Q
Trench Clear Opening:
24"
Trench Grate Width:
26"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
ADA Compliant Grate:
ADA Compliant Grate
|
|
|
4999-KA A |
|
Highest Load Rating:
FAA
Catalog Number:
4999-KA A
|
|
|
4999-KX D |
|
Seat Depth:
2"
Highest Load Rating:
H-25
Material:
Gray Iron
Catalog Number:
4999-KX D
Trench Clear Opening:
30"
Trench Grate Width:
33"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
|
|
4999-L2 |
PDF
|
Seat Depth:
1.5"
Weir Perimeter (Feet):
2
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-L2
Trench Clear Opening:
10"
Trench Grate Width:
12"
Bolted:
Bolted
Frame Length:
18"
Trench Grate Length:
17 7/8"
|
|
|
4999-L3 |
PDF
|
Seat Depth:
1.5"
Weir Perimeter (Feet):
2
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-L3
Trench Clear Opening:
12"
Trench Grate Width:
14"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
|
|
4999-L9 |
PDF
|
Weir Perimeter (Feet):
2
Highest Load Rating:
H-25
Material:
Gray Iron
Catalog Number:
4999-L9
Trench Clear Opening:
26.75"
Trench Grate Width:
29 3/4"
Bolted:
Bolted
Frame Length:
18"
Trench Grate Length:
17 7/8"
|
|
|
4999-MX D |
|
Seat Depth:
2"
Highest Load Rating:
H-20
Material:
Gray Iron
Catalog Number:
4999-MX D
Trench Clear Opening:
36"
Trench Grate Width:
39"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
|
|
4999-OX D |
|
Seat Depth:
2"
Highest Load Rating:
H-25
Material:
Gray Iron
Catalog Number:
4999-OX D
Trench Clear Opening:
48"
Trench Grate Width:
51"
Bolted:
Bolted
Frame Length:
24"
Trench Grate Length:
23 7/8"
|
 |
525 |
|
Seat Depth:
2"
Frame Height:
9"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
525
Clear Opening Diameter:
20 1/4"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

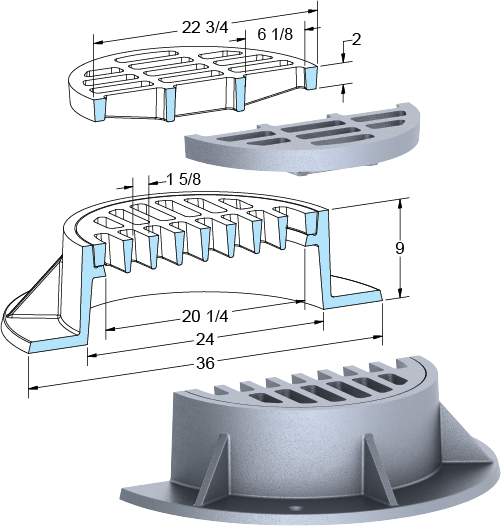

525-5640 |
|
Seat Depth:
2"
Frame Height:
9"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
525-5640
Clear Opening Diameter:
20 1/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
24"
Grate Diameter:
22 3/4"
|
 |
540 |
PDF
|
Seat Depth:
2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
540
Clear Opening Diameter:
21 1/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
23 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
540-5640 |
|
Seat Depth:
2"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
540-5640
Clear Opening Diameter:
21 1/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
23 1/2"
Grate Diameter:
22 3/4"
|
 |
565 |
|
Seat Depth:
1 3/8"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
565
Clear Opening Diameter:
20 3/4"
Cover Diameter:
23 5/16"
Frame Flange Diameter:
32"
Frame Opening Diameter:
22 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
571 |
|
Seat Depth:
1"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
571
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
31"
Frame Opening Diameter:
23 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

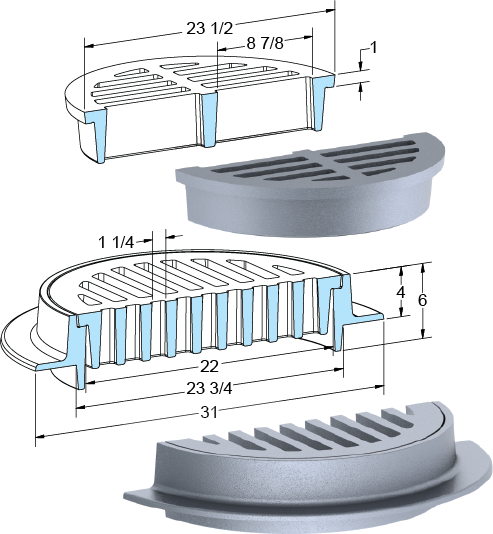

571-5682 |
|
Seat Depth:
1"
Frame Height:
4"
Weir Perimeter (Feet):
6.1
Open Area (Sq Ft):
1"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
571-5682
Clear Opening Diameter:
22"
Frame Flange Diameter:
31"
Frame Opening Diameter:
23.75"
Grate Diameter:
23 1/2"
|
 |
573 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
573
Clear Opening Diameter:
22 1/4"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

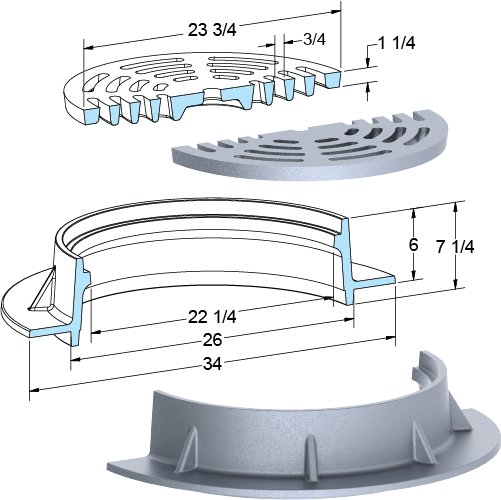

573-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
573-5645
Clear Opening Diameter:
22 1/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Grate Diameter:
23 3/4"
|
 |
574 |
|
Seat Depth:
1 1/4"
Frame Height:
3"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
574
Clear Opening Diameter:
23 7/8"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
575 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
575
Clear Opening Diameter:
20 3/4"
Cover Diameter:
23 5/16"
Frame Flange Diameter:
32"
Frame Opening Diameter:
24 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
576 |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
576
Clear Opening Diameter:
24"
Cover Diameter:
25 1/8"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
577 |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
577
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
578 |
PDF
|
Seat Depth:
1 3/16"
Frame Height:
6 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
578
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
