1111 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1111
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1111-5630 |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1111-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 9/16"
Grate Diameter:
22 1/4"
|
 |
1115 |
PDF
|
Seat Depth:
5/8"
Frame Height:
2 3/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1115
Clear Opening Diameter:
22 3/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
29"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1115-5650 |
|
Seat Depth:
1"
Frame Height:
2 3/4"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1115-5650
Clear Opening Diameter:
22 3/8"
Frame Flange Diameter:
29"
Frame Opening Diameter:
25 3/8"
Grate Diameter:
23 3/4"
|
 |

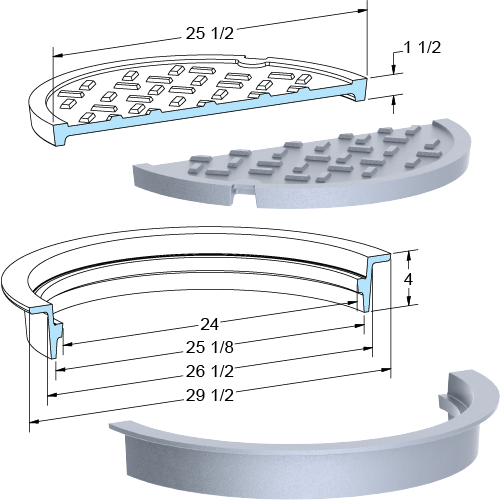

1116 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1116
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1116-5609 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1116-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
27.125"
Grate Diameter:
25 1/2"
|
 |

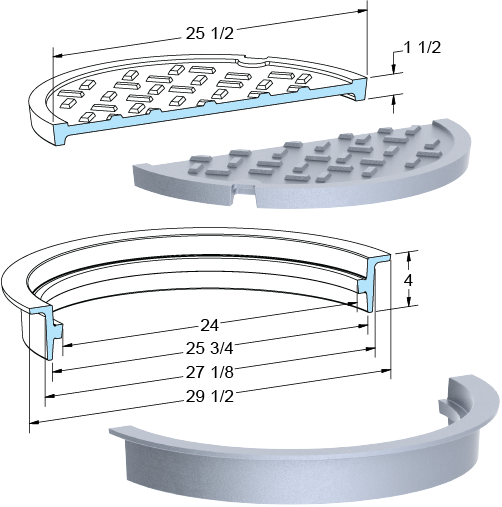

1117 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1117
Clear Opening Diameter:
24"
Cover Diameter:
25 1/2"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
27 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1117-5609 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
6.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1117-5609
Clear Opening Diameter:
24"
Frame Flange Diameter:
29 1/2"
Frame Opening Diameter:
27.125"
Grate Diameter:
25 1/2"
|
 |

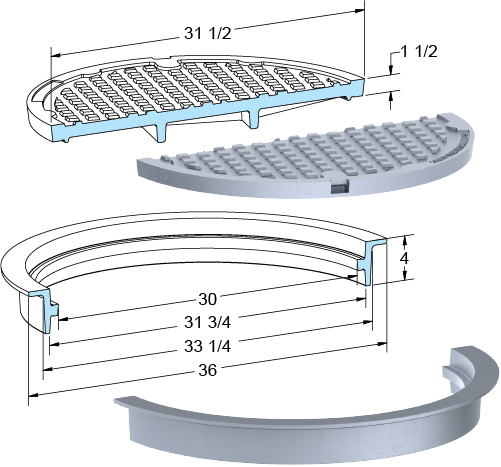

1119 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1119
Clear Opening Diameter:
30"
Cover Diameter:
31 1/2"
Frame Flange Diameter:
36"
Frame Opening Diameter:
33 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

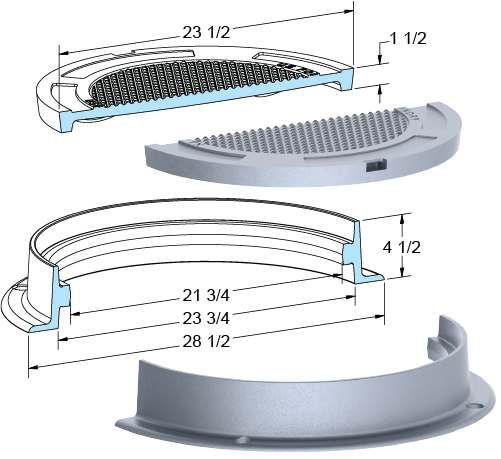

112 |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
112
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
28 1/2"
Frame Opening Diameter:
23 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
112-5619 |
|
Seat Depth:
1 1/2"
Frame Height:
4.5"
Weir Perimeter (Feet):
6.1
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
112-5619
Clear Opening Diameter:
21 3/4"
Frame Flange Diameter:
28 1/2"
Frame Opening Diameter:
23 3/4"
Grate Diameter:
23 1/2"
|
 |

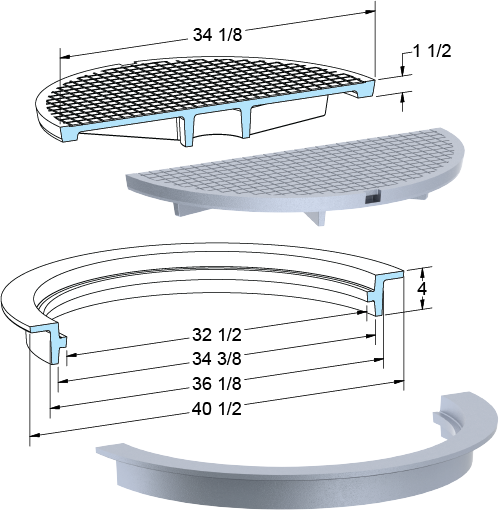

1120 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1120
Clear Opening Diameter:
32 1/2"
Cover Diameter:
34 1/8"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
34 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1120-5665 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
8.9
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1120-5665
Clear Opening Diameter:
32 1/4"
Frame Flange Diameter:
40 1/2"
Frame Opening Diameter:
36 1/8"
Grate Diameter:
34 1/8"
|
 |
1122 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1122
Clear Opening Diameter:
26 1/4"
Cover Diameter:
27 7/8"
Frame Flange Diameter:
32 1/2"
Frame Opening Diameter:
28 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

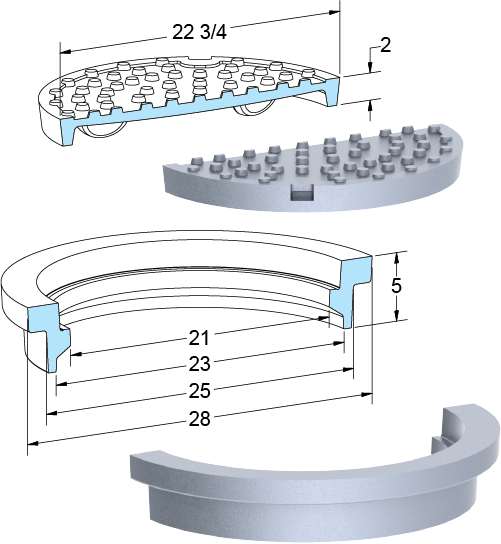

1125 |
PDF
|
Seat Depth:
2"
Frame Height:
5"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Up
Catalog Number:
1125
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1125-5640 |
|
Seat Depth:
2"
Frame Height:
5"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1125-5640
Clear Opening Diameter:
21"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25"
Grate Diameter:
22 3/4"
|
 |
1130-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1130-5645
Clear Opening Diameter:
22 1/2"
Frame Flange Diameter:
30"
Frame Opening Diameter:
25 3/8"
Grate Diameter:
23 3/4"
|
 |
1150 |
|
Seat Depth:
1 1/8"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1150
Clear Opening Diameter:
24 1/8"
Cover Diameter:
26"
Frame Flange Diameter:
35"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1154 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1154
Clear Opening Diameter:
23 1/2"
Cover Diameter:
25 1/4"
Frame Flange Diameter:
29 1/2"
|
 |
1155 |
PDF
|
Seat Depth:
1"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1155
Clear Opening Diameter:
22"
Cover Diameter:
23 1/4"
Frame Flange Diameter:
30"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |
1155-5640 |
|
Seat Depth:
2"
Frame Height:
8"
Weir Perimeter (Feet):
5.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1155-5640
Clear Opening Diameter:
21"
Frame Flange Diameter:
28"
Frame Opening Diameter:
25.25"
Grate Diameter:
22 3/4"
|
|
|
1156 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
5"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1156
Clear Opening Diameter:
24"
Frame Flange Diameter:
34"
Frame Opening Diameter:
26 1/4"
Grate Diameter:
26"
|
|
|
1157 |
PDF
|
Seat Depth:
1"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1157
Clear Opening Diameter:
22"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
30"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1158 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1158
Clear Opening Diameter:
24 1/8"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
31 1/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
