1556 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1556
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1556-A |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1556-A
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

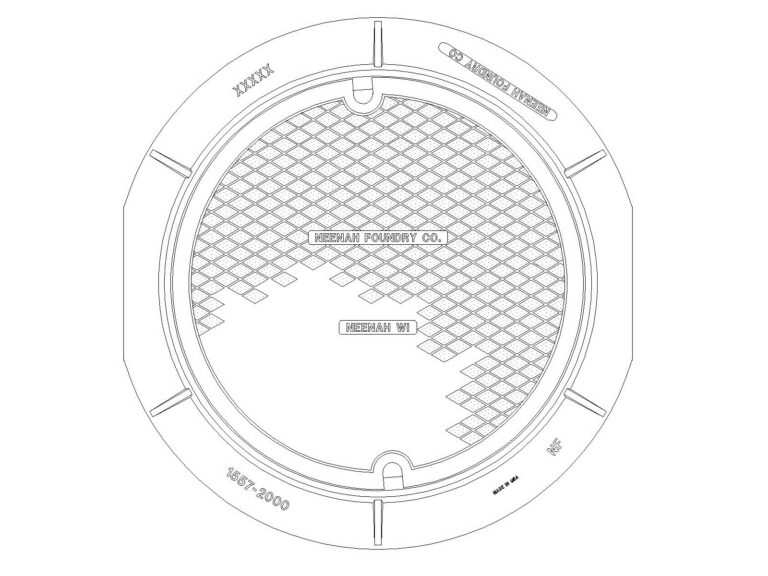

1557 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1557
Clear Opening Diameter:
30"
Cover Diameter:
31 3/4"
Frame Flange Diameter:
41"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1557-A |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1557-A
Clear Opening Diameter:
30 9/32"
Cover Diameter:
32"
Frame Flange Diameter:
40"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

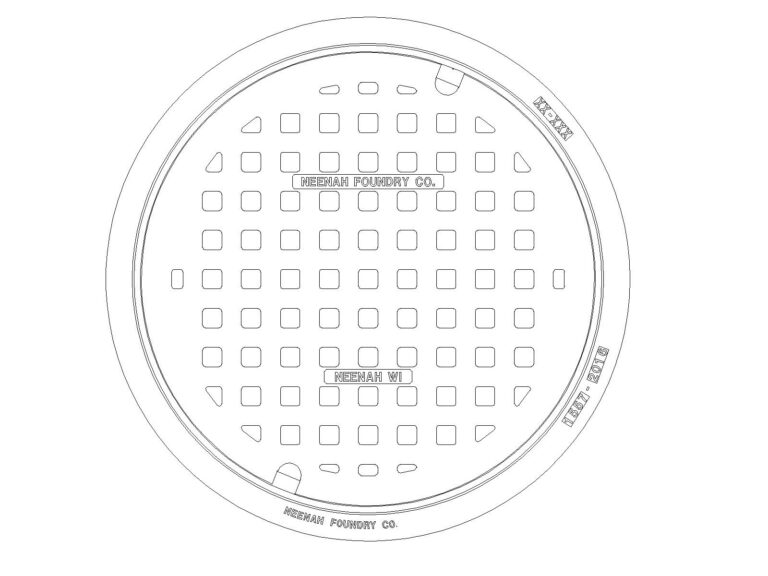

1557-A4 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1557-A4
Clear Opening Diameter:
30"
Cover Diameter:
32"
Frame Flange Diameter:
37"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

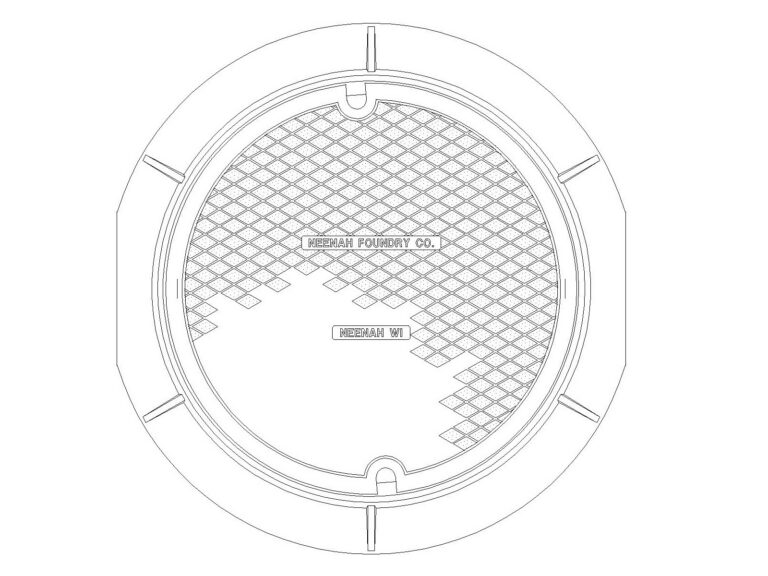

1558 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1558
Clear Opening Diameter:
30"
Cover Diameter:
31 3/4"
Frame Flange Diameter:
41"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

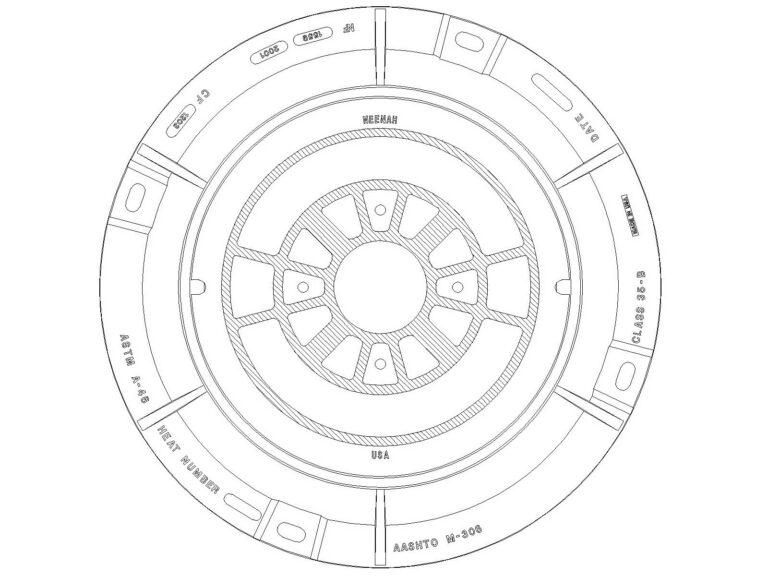

1559 |
PDF
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1559
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
38 1/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

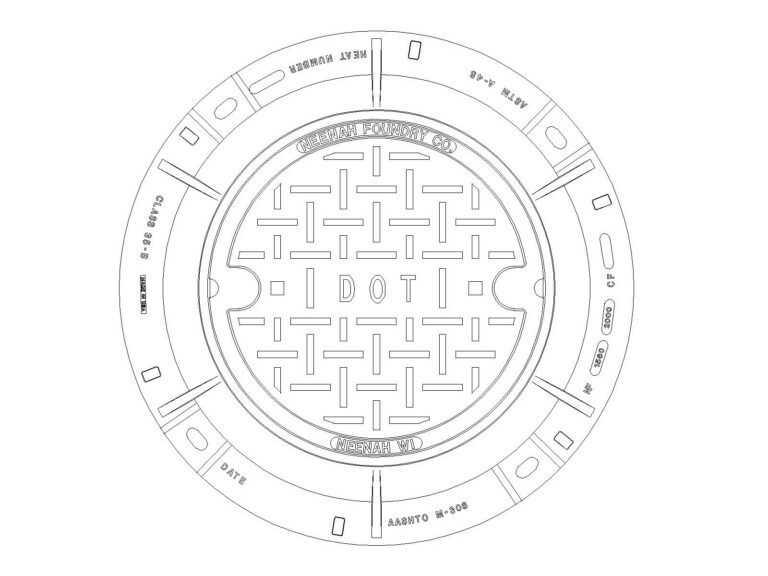

1560 |
PDF
|
Seat Depth:
2"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1560
Clear Opening Diameter:
23"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
39"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1560-4 |
|
Seat Depth:
2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1560-4
Clear Opening Diameter:
23 1/8"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
38 1/2"
Frame Opening Diameter:
25 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1565 |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1565
Clear Opening Diameter:
24"
Cover Diameter:
25 7/8"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

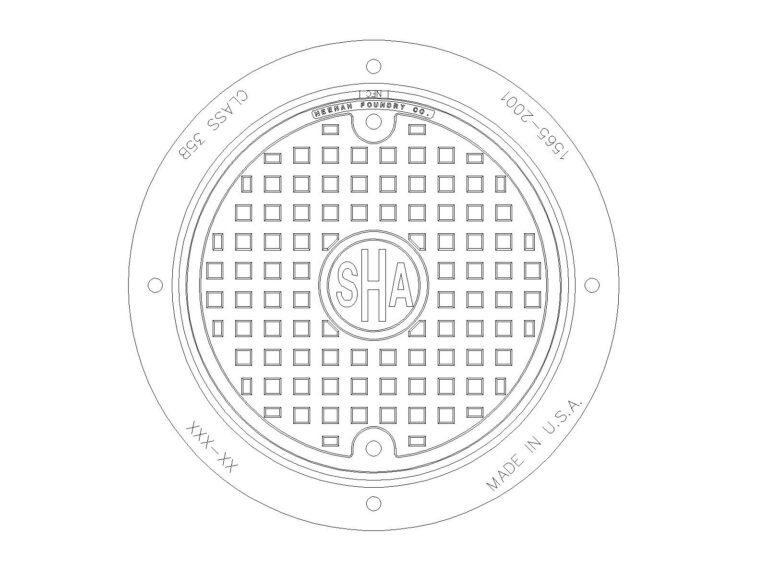

1565-A |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1565-A
Clear Opening Diameter:
24"
Cover Diameter:
25 7/8"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1567 |
PDF
|
Seat Depth:
1 5/8"
Frame Height:
4 1/2"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1567
Clear Opening Diameter:
18"
Cover Diameter:
19 1/2"
Frame Flange Diameter:
20 1/2"
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

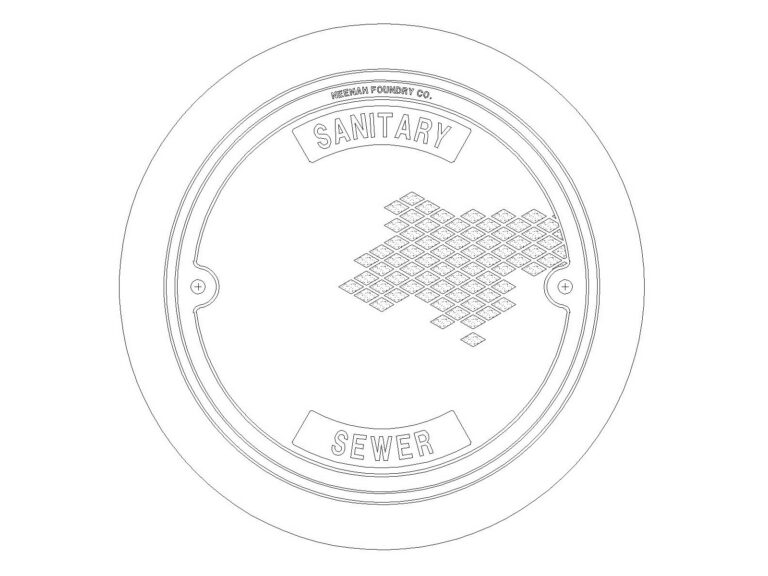

1568 |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1568
Clear Opening Diameter:
30"
Cover Diameter:
31 15/16"
Frame Flange Diameter:
41"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

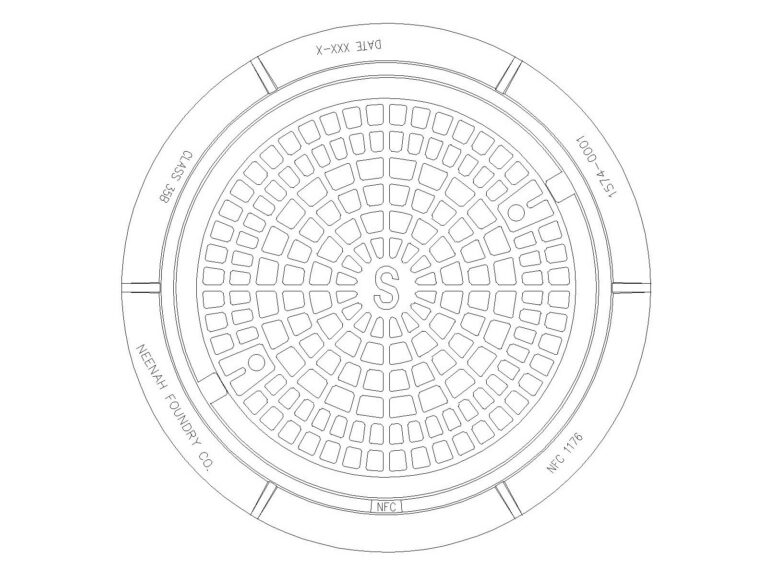

1574 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1574
Clear Opening Diameter:
24"
Cover Diameter:
25 1/4"
Frame Flange Diameter:
31 3/4"
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

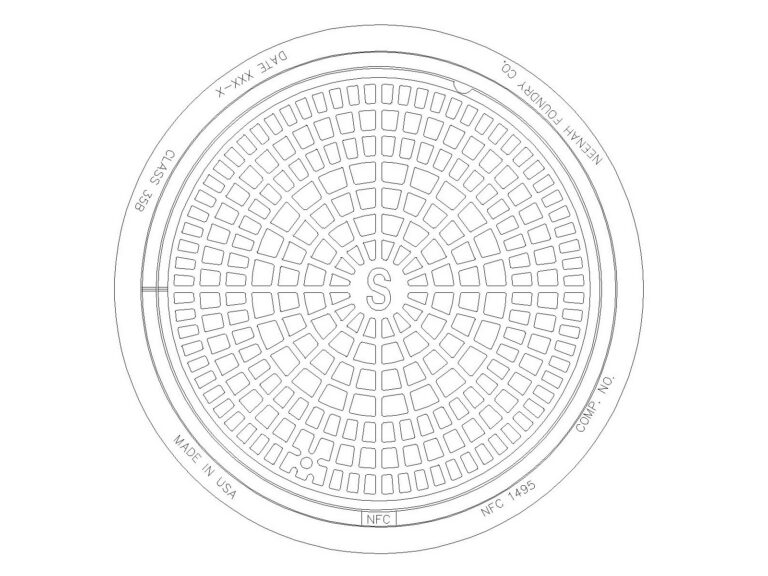

1575 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1575
Clear Opening Diameter:
24"
Cover Diameter:
27 1/8"
Frame Flange Diameter:
32 1/2"
Bolted:
Bolted
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

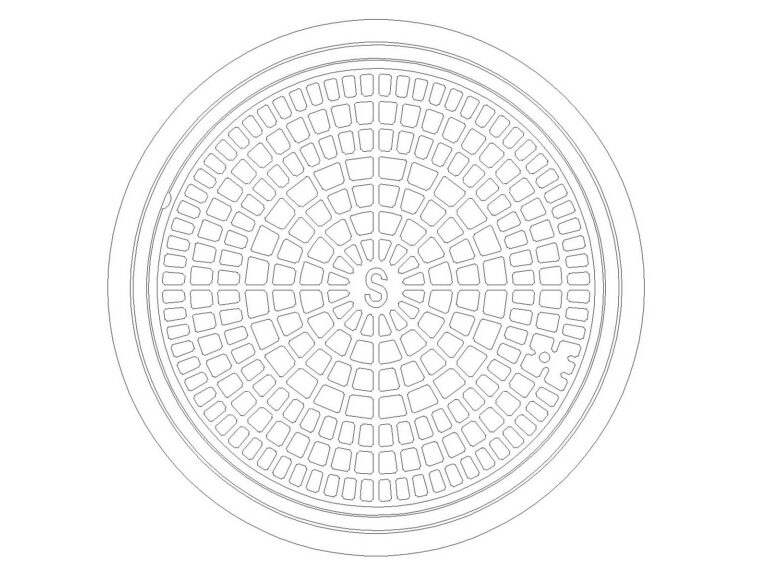

1576 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1576
Clear Opening Diameter:
27"
Cover Diameter:
30 1/8"
Frame Flange Diameter:
35 1/2"
Bolted:
Bolted
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

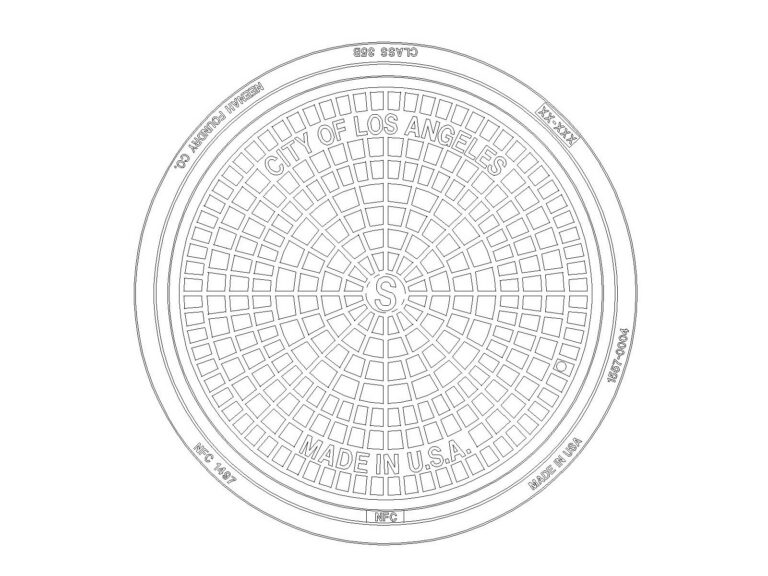

1577 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1577
Clear Opening Diameter:
30"
Cover Diameter:
33 1/8"
Frame Flange Diameter:
38 1/2"
Bolted:
Bolted
Gasket:
Gasket
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

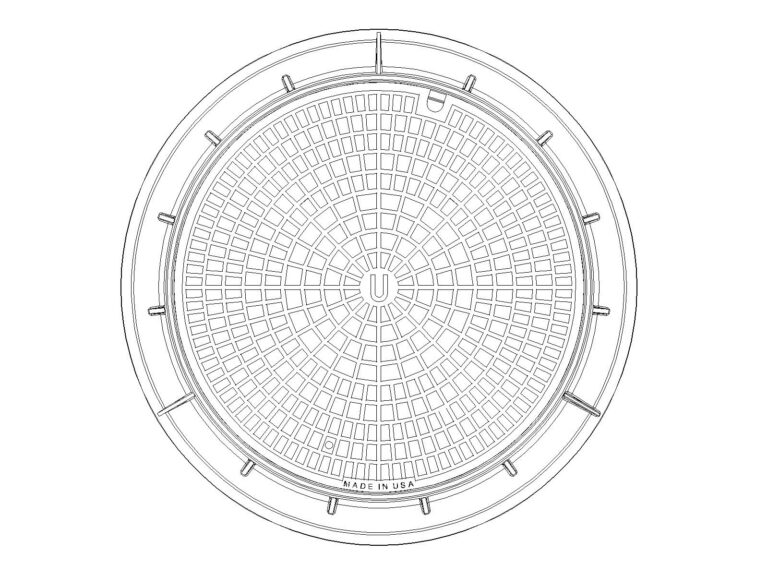

1578 |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1578
Clear Opening Diameter:
35 7/8"
Cover Diameter:
37 3/4"
Frame Flange Diameter:
47 1/2"
Bolted:
Bolted
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1578-A |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1578-A
Clear Opening Diameter:
36"
Cover Diameter:
39 1/8"
Frame Flange Diameter:
44 1/2"
Bolted:
Bolted
Open Pick:
Open Pick
|
 |

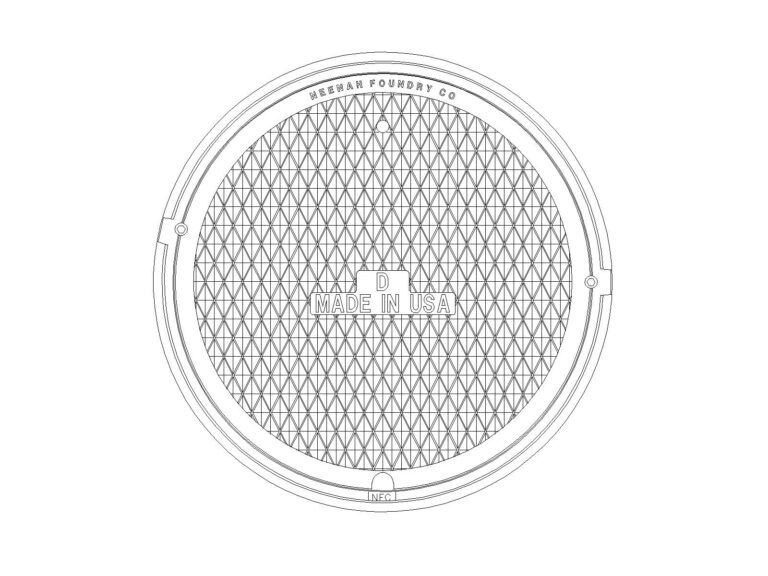

1579 |
PDF
|
Seat Depth:
31/32"
Frame Height:
1 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1579
Clear Opening Diameter:
22"
Cover Diameter:
23 5/8"
Frame Flange Diameter:
26"
Bolted:
Bolted
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |

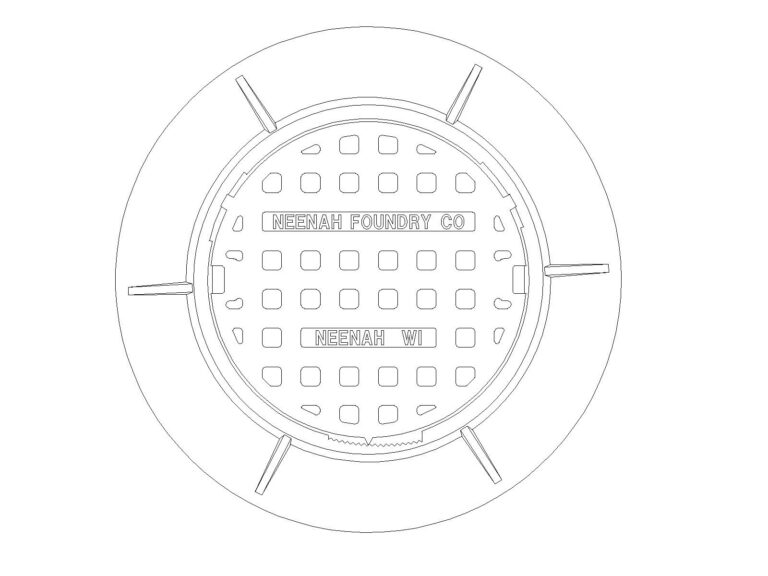

1580 |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1580
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22 1/2"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

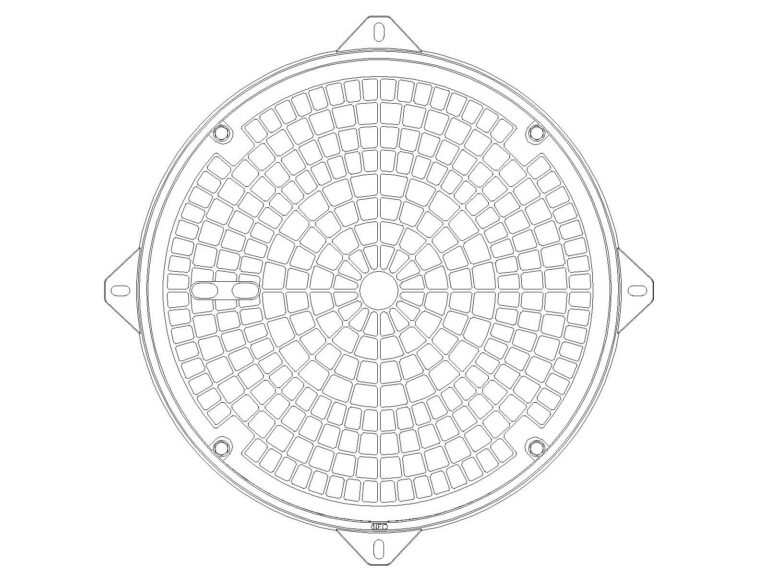

1581 |
PDF
|
Seat Depth:
1"
Frame Height:
2"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1581
Clear Opening Diameter:
30 1/8"
Cover Diameter:
34 1/8"
Frame Flange Diameter:
40 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
159 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
159
Clear Opening Diameter:
20 1/2"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

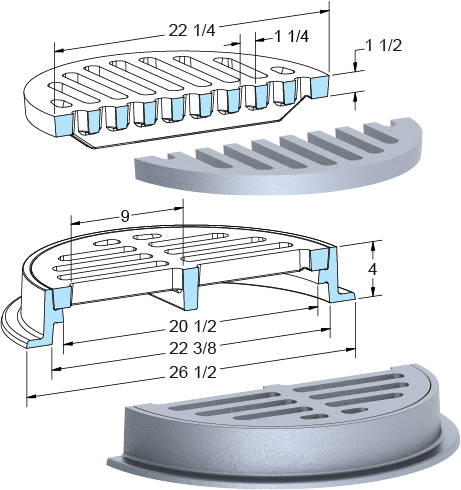

159-5630 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Open Area (Sq Ft):
1"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
159-5630
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 3/8"
Grate Diameter:
22 1/4"
|
