363 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
363
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
363-5619 |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Weir Perimeter (Feet):
6.1
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
363-5619
Clear Opening Diameter:
22"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Grate Diameter:
23 1/2"
|
 |
364 |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
364
Clear Opening Diameter:
20"
Cover Diameter:
21 3/4"
Frame Flange Diameter:
31 1/2"
Frame Opening Diameter:
22"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
365 |
PDF
|
Seat Depth:
1"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
365
Clear Opening Diameter:
22 1/2"
Cover Diameter:
24 1/4"
Frame Flange Diameter:
31 3/4"
Frame Opening Diameter:
26 5/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |
366 |
|
Seat Depth:
2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
366
Clear Opening Diameter:
23 3/4"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
39"
Frame Opening Diameter:
28 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

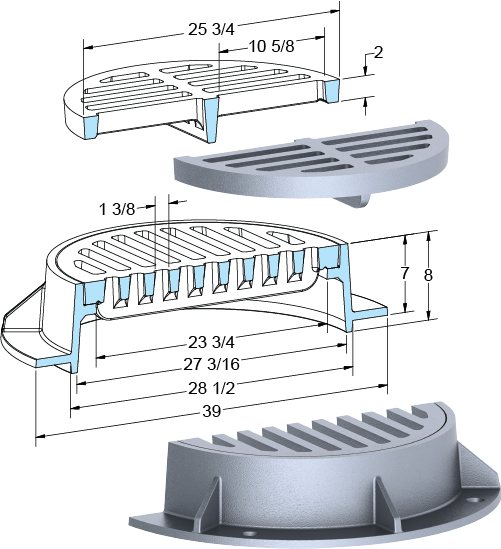

366-5635 |
|
Seat Depth:
2"
Frame Height:
7"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
366-5635
Clear Opening Diameter:
23 3/4"
Frame Flange Diameter:
39"
Frame Opening Diameter:
28 1/2"
Grate Diameter:
25 3/4"
|
 |
3668-5629 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
3.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
3668-5629
Clear Opening Diameter:
11 1/2"
Frame Flange Diameter:
17 1/2"
Frame Opening Diameter:
15"
Grate Diameter:
13 1/4"
|
 |
367 |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
367
Clear Opening Diameter:
20 5/8"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

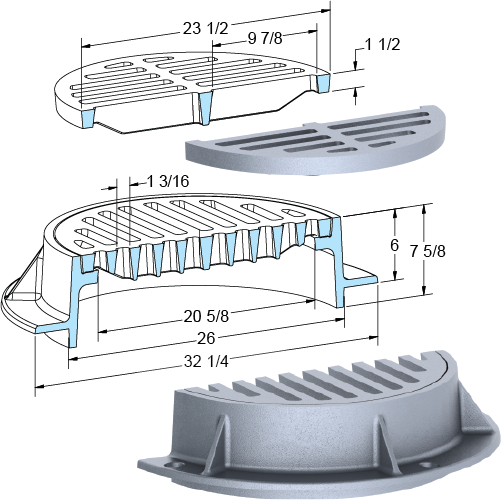

367-5619 |
|
Seat Depth:
1 1/2"
Frame Height:
6"
Weir Perimeter (Feet):
6.1
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
367-5619
Clear Opening Diameter:
20 5/8"
Frame Flange Diameter:
32 1/4"
Frame Opening Diameter:
26"
Grate Diameter:
23 1/2"
|
 |

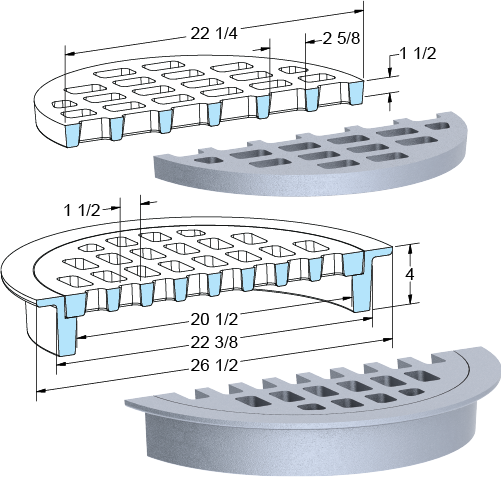

3675-5628 |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
3675-5628
Clear Opening Diameter:
201/2"
Frame Flange Diameter:
26 1/2"
Frame Opening Diameter:
22 3/8"
Grate Diameter:
22 1/4"
|
 |
368 |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
368
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
369 |
|
Seat Depth:
1 1/2"
Frame Height:
4 1/2"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
369
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
370 |
|
Seat Depth:
1 1/8"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
370
Clear Opening Diameter:
25 1/8"
Cover Diameter:
26 1/4"
Frame Flange Diameter:
35 3/4"
Frame Opening Diameter:
25 13/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
371 |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
371
Clear Opening Diameter:
22"
Cover Diameter:
23 1/2"
Frame Flange Diameter:
32 1/8"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

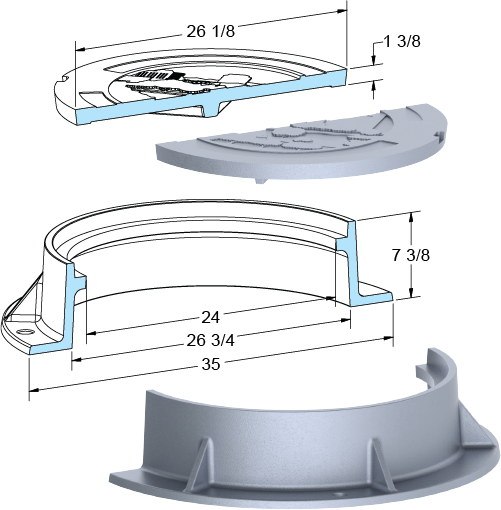

372 |
|
Seat Depth:
1 3/8"
Frame Height:
7 3/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
372
Clear Opening Diameter:
24"
Cover Diameter:
26 1/8"
Frame Flange Diameter:
35"
Frame Opening Diameter:
26 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

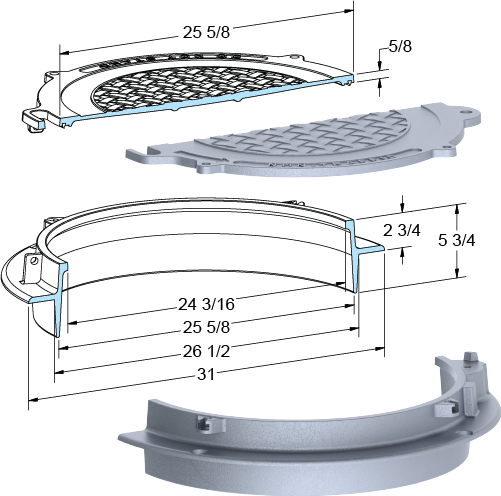

375 |
|
Seat Depth:
5/8"
Frame Height:
2 3/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
375
Clear Opening Diameter:
24 3/16"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
31"
Frame Opening Diameter:
26 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
3805 |
PDF
|
Clear Opening Length:
46 1/2"
Clear Opening Width:
30"
Frame Height:
3 1/2"
Frame Opening Length:
46 1/2"
Frame Opening Width:
30"
Frame Flange Length:
47 1/2"
Frame Flange Width:
41 1/4"
Grate Length:
34"
Grate Width:
22 5/8"
Weir Perimeter (Feet):
21.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3805
Roll Grate:
Roll Grate
|
|
|
3807 |
PDF
|
Clear Opening Length:
36"
Clear Opening Width:
36"
Seat Depth:
3 1/2"
Frame Height:
4"
Frame Opening Length:
36"
Frame Opening Width:
36"
Frame Flange Length:
42 1/2"
Frame Flange Width:
42 1/2"
Grate Length:
20"
Grate Width:
40 1/4"
Weir Perimeter (Feet):
13.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3807
|
|
|
3808 |
|
Clear Opening Length:
40 3/4"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
47 1/8"
Frame Opening Width:
30 1/2"
Frame Flange Length:
47 1/8"
Frame Flange Width:
30 1/2"
Grate Length:
45 1/4"
Grate Width:
28 5/8"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3808
Bolted:
Bolted
|
|
|
3808-1 |
|
Clear Opening Length:
40 3/4"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
40 3/4"
Frame Opening Width:
24"
Frame Flange Length:
47 1/8"
Frame Flange Width:
30 1/2"
Grate Length:
45 1/4"
Grate Width:
28 5/8"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3808-1
Bolted:
Bolted
|
|
|
3808-2 |
PDF
|
Clear Opening Length:
40 3/4"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
40 3/4"
Frame Opening Width:
24"
Frame Flange Length:
94 1/8"
Frame Flange Width:
29 1/4"
Grate Length:
45 1/4"
Grate Width:
28 5/8"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3808-2
|
 |

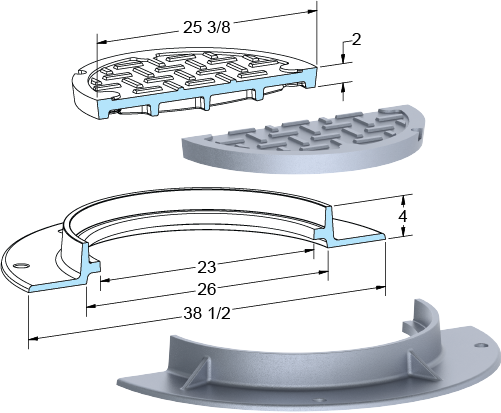

384 |
|
Seat Depth:
2"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
384
Clear Opening Diameter:
23"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
38 1/2"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

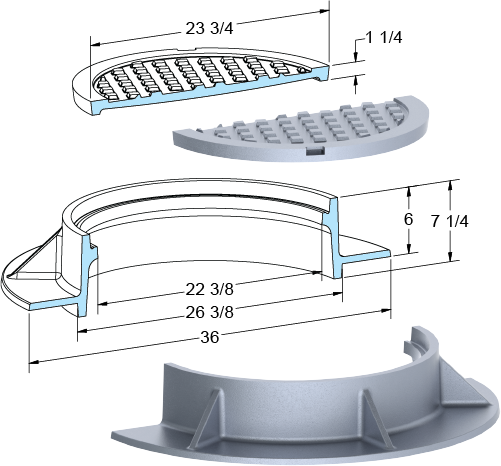

385 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
385
Clear Opening Diameter:
22 3/8"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
36"
Frame Opening Diameter:
26 3/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

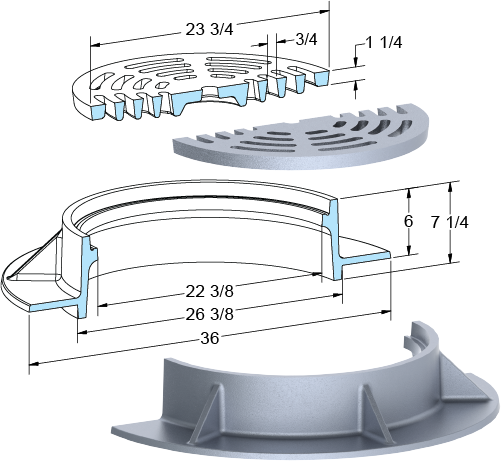

385-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
385-5645
Clear Opening Diameter:
22 3/8"
Frame Flange Diameter:
36"
Frame Opening Diameter:
26 3/8"
Grate Diameter:
23 3/4"
|
