3405-W |
PDF
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
1 1/2"
Frame Height:
6"
Frame Opening Length:
26 5/16"
Frame Opening Width:
26 5/16"
Frame Flange Length:
32 23/32"
Frame Flange Width:
32 3/4"
Grate Length:
23 5/8"
Grate Width:
23 5/8"
Weir Perimeter (Feet):
7.9
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3405-W
Bolted:
Bolted
|
|
|
3433 |
PDF
|
Clear Opening Length:
22"
Clear Opening Width:
22"
Seat Depth:
2"
Frame Height:
6"
Frame Opening Length:
27 11/16"
Frame Opening Width:
27 11/16"
Frame Flange Length:
35"
Frame Flange Width:
35"
Grate Length:
24"
Grate Width:
24"
Weir Perimeter (Feet):
8
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3433
Bolted:
Bolted
|
|
|
3437 |
|
Clear Opening Length:
34"
Clear Opening Width:
34"
Frame Height:
7"
Frame Flange Length:
45"
Frame Flange Width:
45"
Grate Length:
36"
Grate Width:
36"
Weir Perimeter (Feet):
12
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3437
Bolted:
Bolted
ADA Compliant Grate:
ADA Compliant Grate
|
 |
344 |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
344
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
26"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

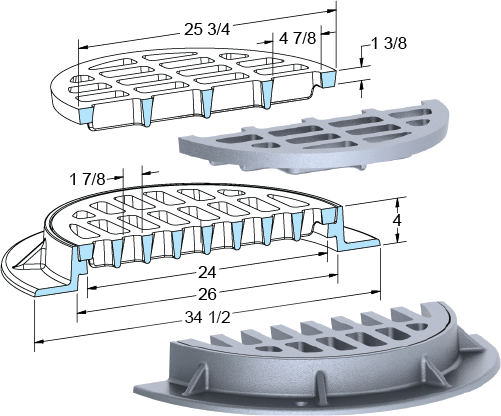

344-5618 |
|
Seat Depth:
1 3/8"
Frame Height:
4"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
344-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
26"
Grate Diameter:
25 3/4"
|
|
|
3448-C |
|
Clear Opening Length:
19 7/16"
Clear Opening Width:
16 7/16"
Seat Depth:
1 3/4"
Frame Height:
6 3/4"
Frame Opening Length:
22 3/4"
Frame Opening Width:
17 3/4"
Frame Flange Length:
34"
Grate Length:
22 3/4"
Grate Width:
17 3/4"
Weir Perimeter (Feet):
6.8
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3448-C
|
|
|
3455-C |
PDF
|
Clear Opening Length:
34"
Clear Opening Width:
22"
Seat Depth:
1 3/4"
Frame Height:
9"
Frame Opening Length:
36"
Frame Opening Width:
24"
Frame Flange Length:
48"
Frame Flange Width:
38"
Grate Length:
36"
Grate Width:
24"
Weir Perimeter (Feet):
10
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3455-C
Bolted:
Bolted
|
 |
346 |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
346
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
346-5618 |
|
Seat Depth:
1 3/8"
Frame Height:
6"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
346-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34"
Frame Opening Diameter:
27.875"
Grate Diameter:
25 3/4"
|
|
|
3463-B |
PDF
|
Clear Opening Length:
27 1/2"
Clear Opening Width:
14 1/2"
Seat Depth:
2"
Frame Height:
6 3/4"
Frame Opening Length:
29 7/8"
Frame Opening Width:
15 3/4"
Frame Flange Length:
74 1/2"
Frame Flange Width:
24 3/8"
Grate Length:
29 1/2"
Grate Width:
16 3/8"
Weir Perimeter (Feet):
12.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3463-B
|
|
|
3463-BW |
|
Clear Opening Length:
27 1/2"
Clear Opening Width:
14 3/8"
Seat Depth:
2"
Frame Height:
6 3/4"
Frame Opening Length:
61 19/32"
Frame Opening Width:
16 3/16"
Frame Flange Length:
74 1/2"
Frame Flange Width:
34 3/8"
Grate Length:
29 1/2"
Grate Width:
16 3/8"
Weir Perimeter (Feet):
12.6
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3463-BW
|
|
|
3470 |
PDF
|
Clear Opening Length:
24"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
24"
Frame Opening Width:
24"
Frame Flange Length:
27 5/16"
Frame Flange Width:
29 13/16"
Grate Length:
24"
Grate Width:
26 5/8"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3470
Bolted:
Bolted
|
|
|
3470-2 |
PDF
|
Clear Opening Length:
48"
Clear Opening Width:
24"
Seat Depth:
2"
Frame Height:
2 1/2"
Frame Opening Length:
48"
Frame Opening Width:
24"
Frame Flange Length:
51 5/16"
Frame Flange Width:
29 13/16"
Grate Length:
24"
Grate Width:
26 5/8"
Weir Perimeter (Feet):
12.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3470-2
Bolted:
Bolted
|
|
|
3471 |
PDF
|
Clear Opening Length:
22 1/4"
Clear Opening Width:
8 3/4"
Seat Depth:
3/4"
Frame Height:
4"
Frame Opening Length:
24"
Frame Opening Width:
10 1/2"
Frame Flange Length:
32"
Frame Flange Width:
18 1/2"
Grate Length:
24"
Grate Width:
10 1/2"
Weir Perimeter (Feet):
5.8
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3471
Bolted:
Bolted
|
|
|
3472 |
PDF
|
Clear Opening Length:
20"
Clear Opening Width:
20"
Seat Depth:
1"
Frame Height:
8"
Frame Opening Length:
22"
Frame Opening Width:
22"
Frame Flange Length:
34"
Frame Flange Width:
34"
Grate Length:
21 7/8"
Grate Width:
21 7/8"
Weir Perimeter (Feet):
7.3
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
3472
Bolted:
Bolted
|
|
|
3475 |
|
Seat Depth:
2"
Frame Height:
6.25"
Grate Length:
35.5"
Grate Width:
23.5"
Weir Perimeter (Feet):
9.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475
Bolted:
Bolted
|
|
|
3475-E |
|
Clear Opening Length:
32.5"
Clear Opening Width:
23.875"
Frame Flange Length:
38"
Frame Flange Width:
26.875"
Grate Length:
35"
Grate Width:
23.75"
Weir Perimeter (Feet):
9.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-E
Bolted:
Bolted
|
|
|
3475-F |
|
Clear Opening Length:
47.625"
Clear Opening Width:
33.625"
Frame Height:
4.375"
Frame Flange Length:
57"
Frame Flange Width:
44.125"
Grate Length:
47.5"
Grate Width:
35"
Weir Perimeter (Feet):
13.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-F
Bolted:
Bolted
|
|
|
3475-G |
|
Clear Opening Length:
71.875"
Clear Opening Width:
32.5"
Frame Flange Length:
74.875"
Frame Flange Width:
38"
Grate Length:
71.5"
Grate Width:
35"
Weir Perimeter (Feet):
17.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-G
Bolted:
Bolted
|
|
|
3475-H |
|
Clear Opening Length:
96"
Clear Opening Width:
32"
Frame Flange Length:
99.5"
Frame Flange Width:
40.75"
Grate Length:
95"
Grate Width:
35"
Weir Perimeter (Feet):
21.8
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3475-H
Bolted:
Bolted
|
|
|
3477-A |
|
Clear Opening Length:
39.375"
Clear Opening Width:
27.5"
Frame Flange Length:
47.375"
Frame Flange Width:
35.5"
Grate Length:
42.75"
Grate Width:
31.125"
Weir Perimeter (Feet):
12.3
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3477-A
Bolted:
Bolted
|
 |
348 |
|
Seat Depth:
1 3/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
348
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |

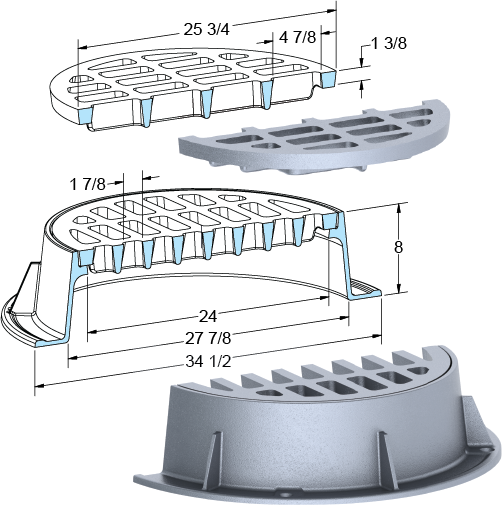

348-5618 |
|
Seat Depth:
1 3/8"
Frame Height:
8"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
348-5618
Clear Opening Diameter:
24"
Frame Flange Diameter:
34 1/2"
Frame Opening Diameter:
27.875"
Grate Diameter:
25 3/4"
|
|
|
3480 |
|
Clear Opening Length:
49.75"
Clear Opening Width:
23.9375"
Frame Height:
5.75"
Frame Flange Length:
52"
Frame Flange Width:
32"
Grate Length:
49.75"
Grate Width:
26.625"
Weir Perimeter (Feet):
12.7
Highest Load Rating:
FAA
Material:
Ductile Iron
Shape:
Square/Rectangle
Catalog Number:
3480
Bolted:
Bolted
|
