2251 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
8.625"
Weir Perimeter (Feet):
9.4
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Grate Type:
G
Catalog Number:
2251
Clear Opening Diameter:
34"
Frame Flange Diameter:
45"
Frame Opening Diameter:
38"
Grate Diameter:
36"
|
 |
226 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
226
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
33"
Frame Opening Diameter:
24"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
227 |
PDF
|
Seat Depth:
2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
227
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

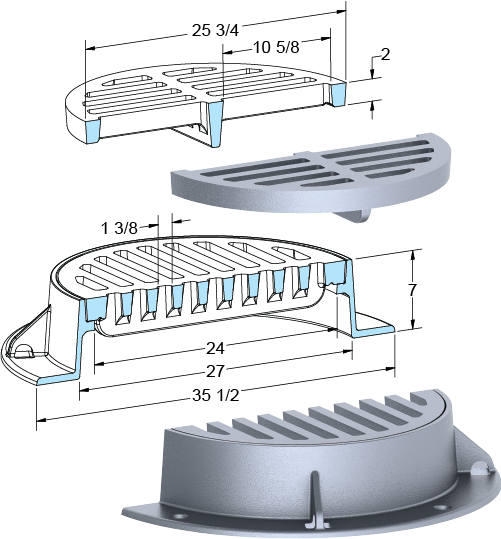

227-5635 |
|
Seat Depth:
2"
Frame Height:
7"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
227-5635
Clear Opening Diameter:
24"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27"
Grate Diameter:
25 3/4"
|
 |
229 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
229
Clear Opening Diameter:
23 3/8"
Cover Diameter:
25 3/8"
Frame Flange Diameter:
35 3/8"
Frame Opening Diameter:
25 3/4"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
230 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
230
Clear Opening Diameter:
30"
Cover Diameter:
32 1/8"
Frame Flange Diameter:
41 1/2"
Frame Opening Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

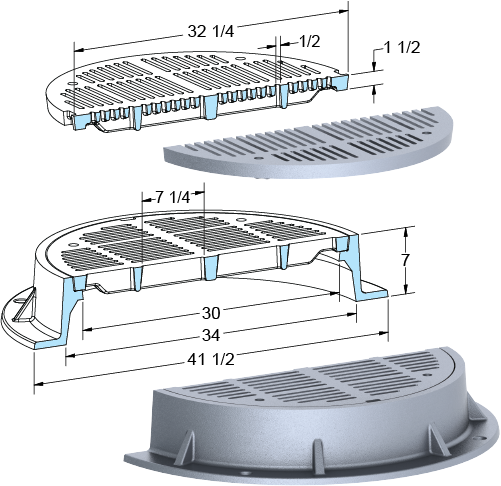

230-5616 |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Weir Perimeter (Feet):
8.4
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
230-5616
Clear Opening Diameter:
30"
Frame Flange Diameter:
41 1/2"
Frame Opening Diameter:
34"
Grate Diameter:
32 1/4"
|
|
|
230-AB-M |
|
Seat Depth:
1 1/2"
Frame Height:
7"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
230-AB-M
Clear Opening Diameter:
30"
Cover Diameter:
32 1/8"
Frame Flange Diameter:
41 1/2"
Frame Opening Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
|
|
2303 |
PDF
|
Clear Opening Length:
29 3/4"
Clear Opening Width:
29 3/4"
Seat Depth:
2"
Frame Height:
6"
Frame Opening Length:
29 3/4"
Frame Opening Width:
29 3/4"
Frame Flange Length:
36 1/2"
Frame Flange Width:
36 1/2"
Grate Length:
31 3/4"
Grate Width:
31 3/4"
Highest Load Rating:
Contact NEI
Material:
Gray Iron
Shape:
Square/Rectangle
Catalog Number:
2303
|
|
|
2330 |
|
Seat Depth:
2"
Material:
Gray Iron
Catalog Number:
2330
Clear Opening Diameter:
2 5/8"
Cover Diameter:
22 3/4"
|
|
|
2332 |
|
Seat Depth:
1 3/8"
Material:
Gray Iron
Catalog Number:
2332
Clear Opening Diameter:
2"
Cover Diameter:
32"
|
|
|
2333 |
|
Seat Depth:
1 3/8"
Material:
Gray Iron
Catalog Number:
2333
Clear Opening Diameter:
3"
Cover Diameter:
32"
|
|
|
2334 |
|
Seat Depth:
1"
Material:
Gray Iron
Catalog Number:
2334
Clear Opening Diameter:
1 1/2"
Cover Diameter:
23 1/2"
|
|
|
2335 |
|
Seat Depth:
1"
Material:
Gray Iron
Catalog Number:
2335
Clear Opening Diameter:
2"
Cover Diameter:
23 1/2"
|
|
|
2336 |
|
Seat Depth:
1 1/4"
Material:
Gray Iron
Catalog Number:
2336
Clear Opening Diameter:
2"
Cover Diameter:
23 3/4"
|
|
|
2337 |
|
Seat Depth:
1"
Material:
Gray Iron
Catalog Number:
2337
Clear Opening Diameter:
1 1/2"
Cover Diameter:
23 1/4"
Frame Opening Diameter:
361"
|
|
|
2339 |
|
Seat Depth:
2"
Material:
Gray Iron
Catalog Number:
2339
Clear Opening Diameter:
2 1/4"
Cover Diameter:
22 3/4"
|
 |
234 |
|
Seat Depth:
1 3/4"
Frame Height:
4"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
234
Clear Opening Diameter:
21 5/16"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
23"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

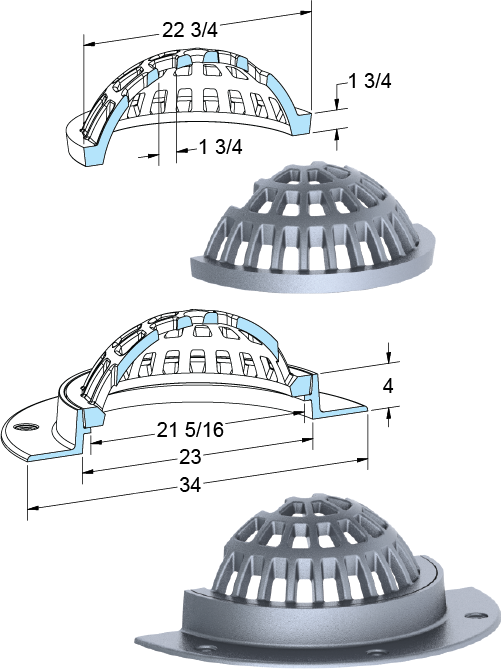

234-5694 |
|
Seat Depth:
1 3/4"
Frame Height:
4"
Weir Perimeter (Feet):
5.9
Open Area (Sq Ft):
1"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
234-5694
Clear Opening Diameter:
21 5/16"
Frame Flange Diameter:
34"
Frame Opening Diameter:
23"
Grate Diameter:
22 3/4"
|
|
|
2340 |
|
Seat Depth:
1 1/4"
Material:
Gray Iron
Catalog Number:
2340
Clear Opening Diameter:
1 3/4"
Cover Diameter:
23 3/4"
|
|
|
2341 |
|
Seat Depth:
1"
Material:
Gray Iron
Catalog Number:
2341
Clear Opening Diameter:
2"
Cover Diameter:
25 3/4"
|
|
|
2342 |
|
Seat Depth:
1 1/2"
Material:
Gray Iron
Catalog Number:
2342
Clear Opening Diameter:
2"
Cover Diameter:
25 3/8"
Frame Opening Diameter:
480"
|
|
|
2343 |
|
Seat Depth:
1"
Material:
Gray Iron
Catalog Number:
2343
Clear Opening Diameter:
1 1/2"
Cover Diameter:
25 3/4"
|
|
|
2344 |
|
Seat Depth:
2"
Material:
Gray Iron
Catalog Number:
2344
Clear Opening Diameter:
4"
Cover Diameter:
22 3/4"
|
