1684 |
PDF
|
Seat Depth:
2 1/2"
Frame Height:
7"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1684
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
36"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Vented Lid:
Vented Lid
|
 |
1685 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
6 1/2"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1685
Clear Opening Diameter:
22 1/4"
Cover Diameter:
24"
Frame Flange Diameter:
35"
Open Pick:
Open Pick
|
 |
1689 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1689
Clear Opening Diameter:
20 1/2"
Cover Diameter:
23"
Frame Flange Diameter:
36"
Frame Opening Diameter:
25 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1689-W |
|
Seat Depth:
1 1/2"
Frame Height:
4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1689-W
Clear Opening Diameter:
20 1/2"
Cover Diameter:
23"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
|
|
1693 |
PDF
|
Seat Depth:
1"
Frame Height:
4 3/4"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1693
Clear Opening Diameter:
21"
Cover Diameter:
22 1/4"
Frame Flange Diameter:
28 1/2"
|
 |
1697 |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1697
Clear Opening Diameter:
21 3/4"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
48"
Open Pick:
Open Pick
|
 |
170 |
PDF
|
Seat Depth:
1 1/4"
Frame Height:
6"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
170
Clear Opening Diameter:
22"
Cover Diameter:
23 3/4"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
24 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

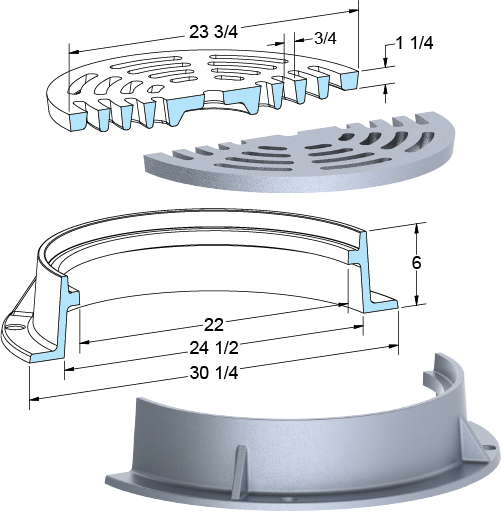

170-5645 |
|
Seat Depth:
1 1/4"
Frame Height:
6"
Weir Perimeter (Feet):
6.2
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
170-5645
Clear Opening Diameter:
22"
Frame Flange Diameter:
30 1/4"
Frame Opening Diameter:
24.5"
Grate Diameter:
23 3/4"
|
 |
1706 |
PDF
|
Seat Depth:
1"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1706
Clear Opening Diameter:
22 1/8"
Cover Diameter:
23 7/8"
Frame Flange Diameter:
34"
Open Pick:
Open Pick
|
|
|
1710 |
PDF
|
Seat Depth:
1 1/2"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1710
Clear Opening Diameter:
20"
Cover Diameter:
22"
Frame Flange Diameter:
35"
Frame Opening Diameter:
25"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1712 |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1712
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1713 |
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1713
Clear Opening Diameter:
20 7/8"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Frame Opening Diameter:
24 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1713-W |
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1713-W
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1714 |
PDF
|
Seat Depth:
1 25/32"
Frame Height:
6 7/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1714
Clear Opening Diameter:
21 21/32"
Cover Diameter:
23 13/16"
Frame Flange Diameter:
33 15/32"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1715 |
PDF
|
Seat Depth:
1 3/4"
Frame Height:
9"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1715
Clear Opening Diameter:
21"
Cover Diameter:
22 3/4"
Frame Flange Diameter:
36"
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |
1720 |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8 1/8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1720
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1720-A |
PDF
|
Seat Depth:
1 1/8"
Frame Height:
8"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1720-A
Clear Opening Diameter:
24"
Cover Diameter:
26"
Frame Flange Diameter:
34 1/2"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
|
|
1722 |
PDF
|
Seat Depth:
2 1/4"
Frame Height:
2 3/4"
Highest Load Rating:
Light Duty
Material:
Gray Iron
Shape:
Round
Frame Type:
Angle Frame
Catalog Number:
1722
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
28"
Open Pick:
Open Pick
|
|
|
1723 |
PDF
|
Seat Depth:
1 7/8"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1723
Clear Opening Diameter:
23 1/2"
Cover Diameter:
26"
Frame Flange Diameter:
35 3/4"
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1726 |
|
Seat Depth:
2"
Frame Height:
5"
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round
Frame Type:
Reversible
Catalog Number:
1726
Clear Opening Diameter:
23 3/4"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27 7/8"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
|
 |

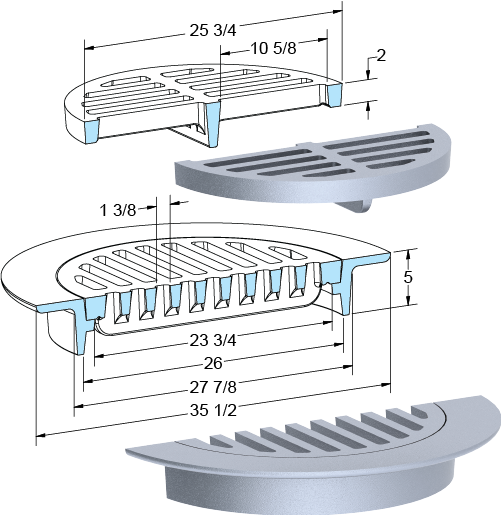

1726-5635 |
|
Seat Depth:
2"
Frame Height:
5"
Weir Perimeter (Feet):
6.7
Highest Load Rating:
H-20
Material:
Gray Iron
Shape:
Round, Square/Rectangle
Catalog Number:
1726-5635
Clear Opening Diameter:
23 3/4"
Frame Flange Diameter:
35 1/2"
Frame Opening Diameter:
27 7/8"
Grate Diameter:
25 3/4"
|
|
|
1728 |
|
Seat Depth:
1"
Frame Height:
8"
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1728
Clear Opening Diameter:
23"
Cover Diameter:
25 5/8"
Frame Flange Diameter:
31 3/4"
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
|
 |
1733 |
PDF
|
Seat Depth:
7/8"
Frame Height:
7"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1733
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
 |
1733-1 |
PDF
|
Seat Depth:
7/8"
Frame Height:
4"
Highest Load Rating:
H-25
Material:
Gray Iron
Shape:
Round
Frame Type:
Flange Down
Catalog Number:
1733-1
Clear Opening Diameter:
24"
Cover Diameter:
25 3/4"
Frame Flange Diameter:
35 7/16"
Bolted:
Bolted
Gasket:
Gasket
Non-Penatrating Pick:
Non-Penatrating Pick
Open Pick:
Open Pick
Vented Lid:
Vented Lid
|
